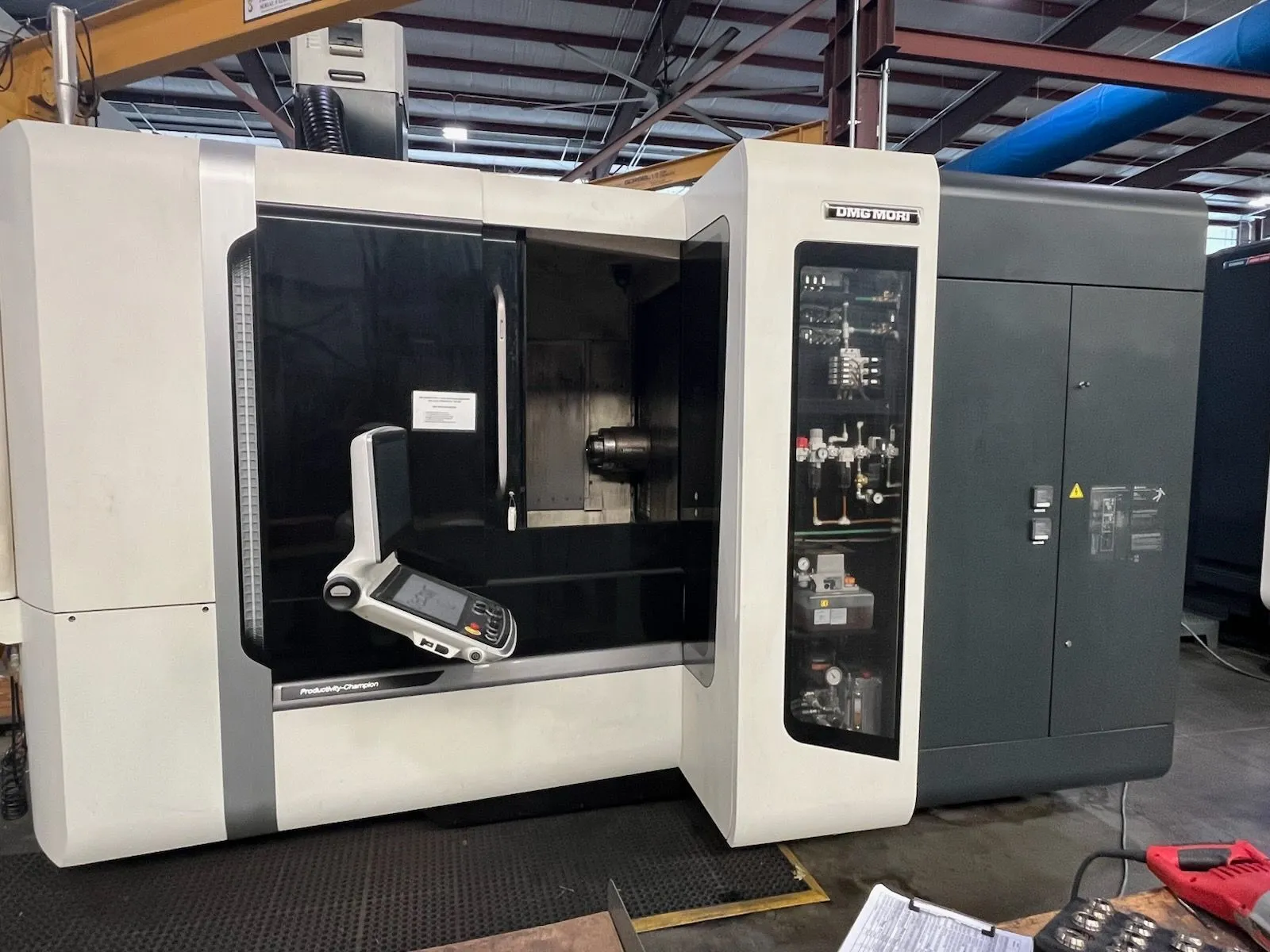

DMG Mori Seiki Model NHX5000 Year 2016
| X | 28.7" | 728.98 mm |
| Y | 28.7" | 728.98 mm |
| Z | 33.5" | 850.9 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 12,000 RPM | 12,000 RPM |
| # ATC | 60 | 60 |
| Taper | 40 | 40 |
| Pallet-W | 19.7" | 500.38 mm |
| Pallet-L | 19.7" | 500.38 mm |
| # Axis | 4 | 4 |
| Control | CNC | CNC |
| Dimensions | R-L 165" X F-B 105" X Height 100" | R-L 165" X F-B 105" X Height 100" |
| Weight | 22,000 Lbs. | 22,000 Lbs. |
Control:
MORI SEIKI M730UM CNC CONTROL
Specs:
X Axis Travel.........................................28.7"
Y Axis Travel.........................................28.7"
Z Axis Travel.........................................33.5"
Rapid Rate X Axis.....................................2,362 IPM
Rapid Rate Y Axis.....................................2,362 IPM
Rapid Rate Z Axis.....................................2,362 IPM
Pallet Size...........................................19.7" X 19.7"
Number Of Pallets.....................................2
Max Pallet Load.......................................1100 LBS.
Pallet Surface to Spindle Center......................3.1" To 31.9"
Pallet Center To Spindle Gage Line....................2.8" To 37.4"
Spindle Speed.........................................12,000 RPM
Spindle Taper.........................................40 CAT
Tool Changer..........................................60 ATC
Max Tool Size.........................................6.6"
Max Tool Length.......................................17.7"
Max Tool Weight.......................................18 lbs.
Tool Change Time......................................0.9 Second
Spindle Motor.........................................40 HP
Power.................................................45kva / 205-220v / 3-Phase
Dimensions............................................R-L 165" X F-B 105"
Height................................................100"
Weight................................................22,000 LBS
Air Required..........................................90 PSI, 4 SCFM
Full 4TH Axis.........................................Yes
Chip Conveyor.........................................Yes
Equipped With The Following:
MORI SEIKI M730UM CNC CONTROL
MAPPS CONVERSATIONAL PROGRAMMING
HELICAL INTERPOLATION
CUSTOM MACROS
TOOL TIP AIR BLOW
DIRECT SCALE FEEDBACK X, Y, Z AXIS
AUTO POWER OFF
SHOWER COOLANT
HIGH PRESSURE COOLANT THRU SPINDLE
SYNC. TAPPING
HIGH PRECISION CONTROL LOOK AHEAD
CUSTOM MACRO
AVAILABLE MANUALS
Cutting Time 4204 Hours
Note:
Machine in plant under power.
