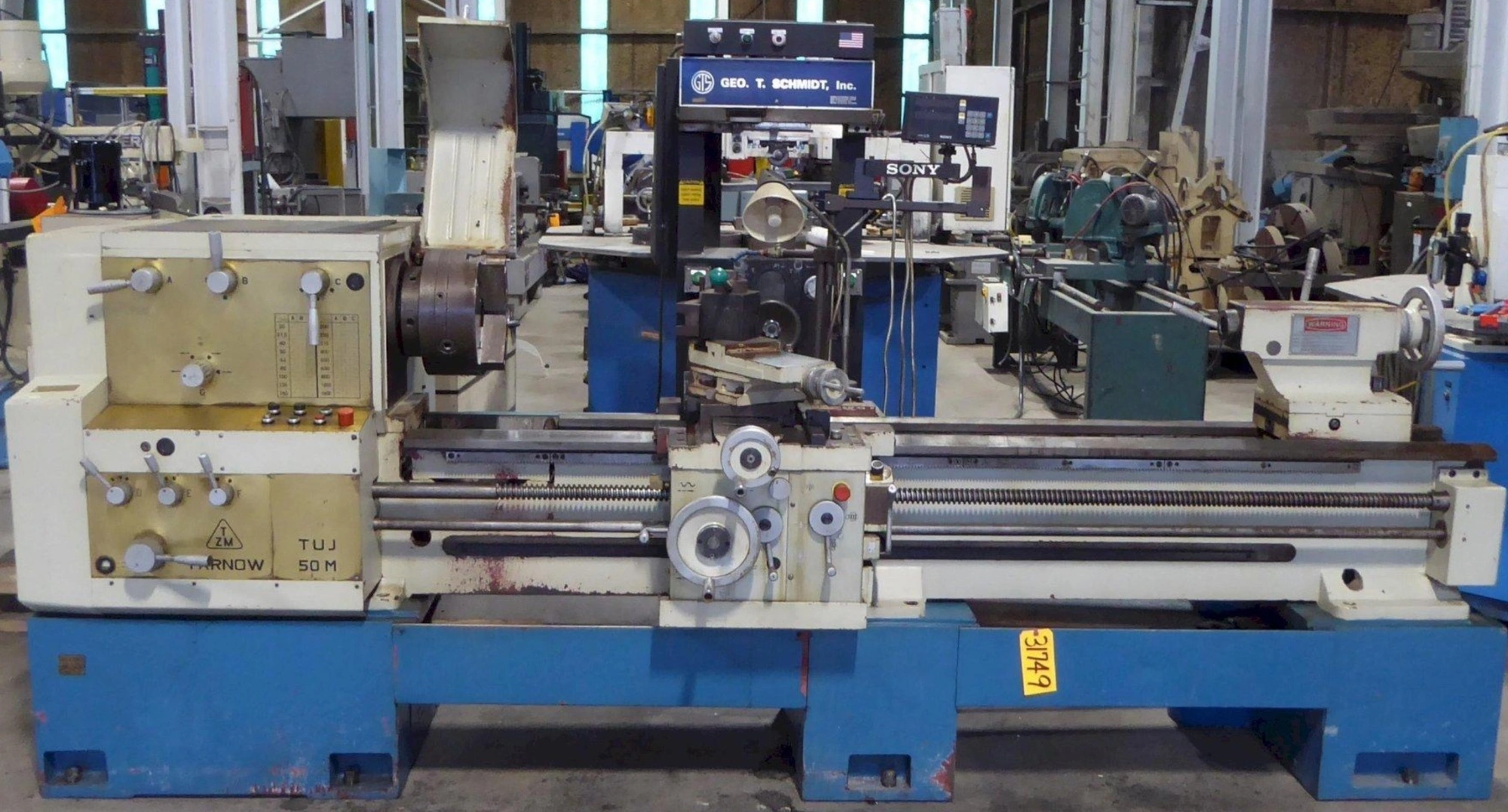

Engine Lathe: 22" swing, 80" centers, 18-speed spindle to 1600 RPM, 3-1/2" bore, Sony digital readout, 15 HP motor. Features hardened bed ways, quick-change tool post, and splash guard.
| Swing | 22" | 558.8 mm |
| Centers | 80" | 2,032 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 16,000 RPM | 16,000 RPM |
Swing Over Bed Ways: 22"
Swing In Gap: 31-1/2"
Swing Over Cross-Slide: 14-1/2"
Distance Between Centers: 80"
Spindle Speeds: (18) 20 to 1600 RPM
Spindle Bore: 3-1/2"
Longitudinal Feeds: (42) .0007 to .72" IPR
Cross Feeds: (42) 1/2 of Longitudinal Feeds
Inch Threads: (70), 1/4" to 56 TPI
Metric Threads: (60), .5 to 112 MM
Tailstock Quill Taper: No. 5 M.T.
15 HP Motor
Sony Two-Axis Digital Readout
15" 3-Jaw Chuck
Hardened and Ground Bed Ways
Quick Change Tool Post
Full Length Splash Guard
