60 Ton Bruderer BSTA 60H High Speed Staright Side 4 Pillar Precision Press, 3/4"-3 STR, 150-800 SPM Variable, BBV 300/200 Feeder
| Tonnage | 60 T | 54.431 t |
| Stroke | 0" | 0 mm |
| SPM | 150-800 | 150-800 |
| Bed W | 24.5" | 622.3 mm |
| Bed L | 30" | 762 mm |

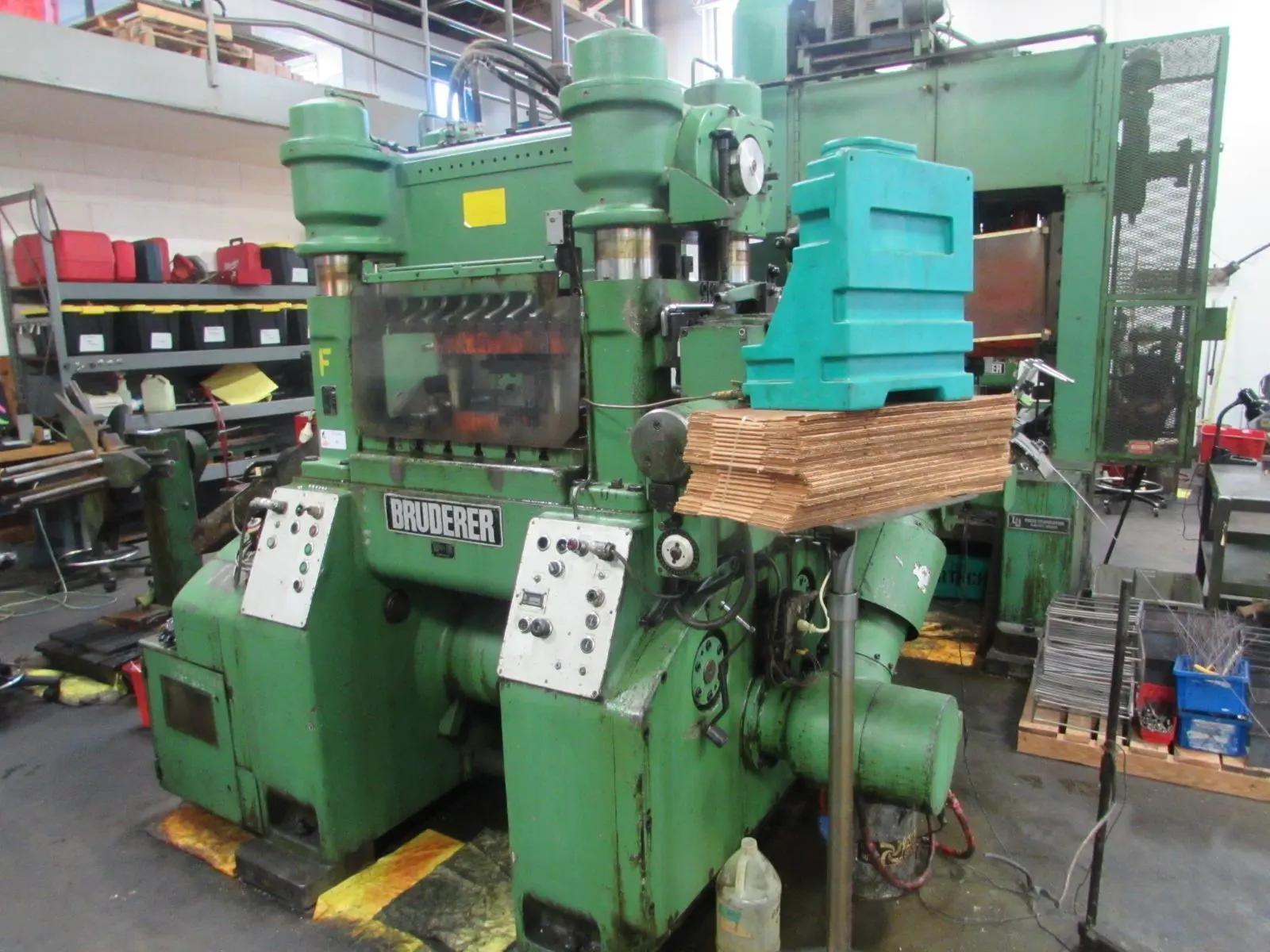

60 TON BRUDERER BSTA 60H HIGH SPEED
STRAIGHT SIDE 4 PILLAR PRECISION PRESS
S/N BSTA 60H 3091
SPECIFICATIONS
Capacity...................................60 Ton
Stroke.....................................0.75”-3”
Bolster Area...............................30”LR x 24.5”FB
Ram Area...................................26”LR x 17.5”FB
Speed (Variable)...........................150-800 SPM
EQUIPPED WITH
Operator controls.
BBV 300/200 roll feed. (Right to Left)
12” Max feed width.
Specifications are deemed accurate, however, subject to verification or prior sale.
