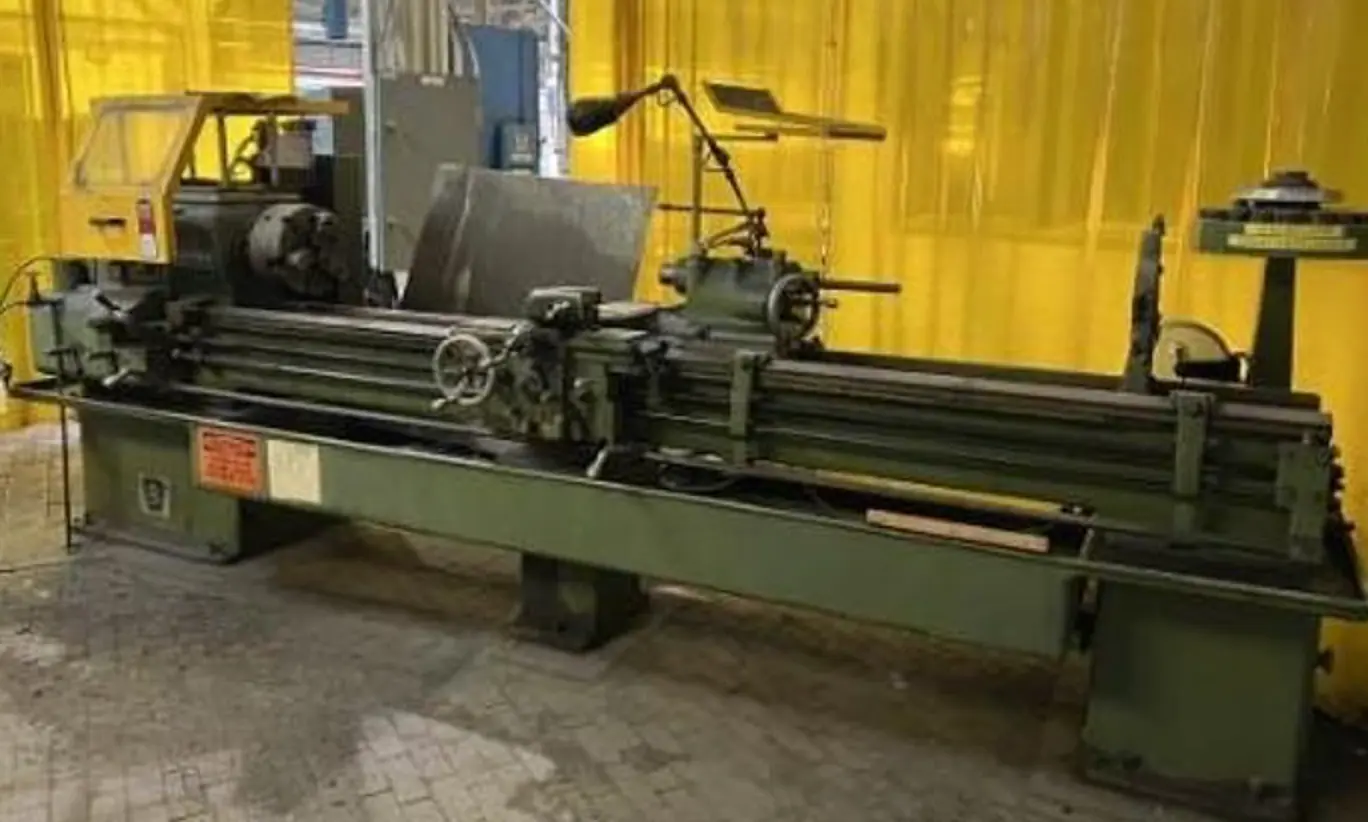

Used Engine lathe, featuring Newall DP7 digital readouts, taper attachment, and 12" 3-jaw chuck. Specs: 1.34" hole thru spindle, 14"/16.5" swing, 102" centers, 10" tailstock spindle travel. Weight approx. 6500 lbs, 25-1250 RPM, 2-120 TPI threading.
| Swing | 14" | 355.6 mm |
| Centers | 102" | 2,590.8 mm |
| RPM | 1,250 RPM | 1,250 RPM |
Hole Thru Spindle 1.34"
Swing Over Bed Ways, Rated 14"
Swing Over Bed Ways, Actual 16.5"
Swing Over Cross-Slide 9.75"
Distance Between Centers 102"
Compound-Rest Travel 2.875"
Tailstock, Spindle Diameter 2.625"
Tailstock, Spindle Travel 10"
(24) Spindle Speeds, Range 25 to 1250 RPM
Carriage Longitudinal Feeds .0021 to .126 IPR
Thread Changes, Range 2 to 120 TPI
Weight, Approximately 6500 LBS
Newall DP7 Digital Readouts
Taper Attachment
12" 3-Jaw Chuck
Steady Rest - Follow Rest
Power Rapid Traverse
Hard Ways
Threading Dial
