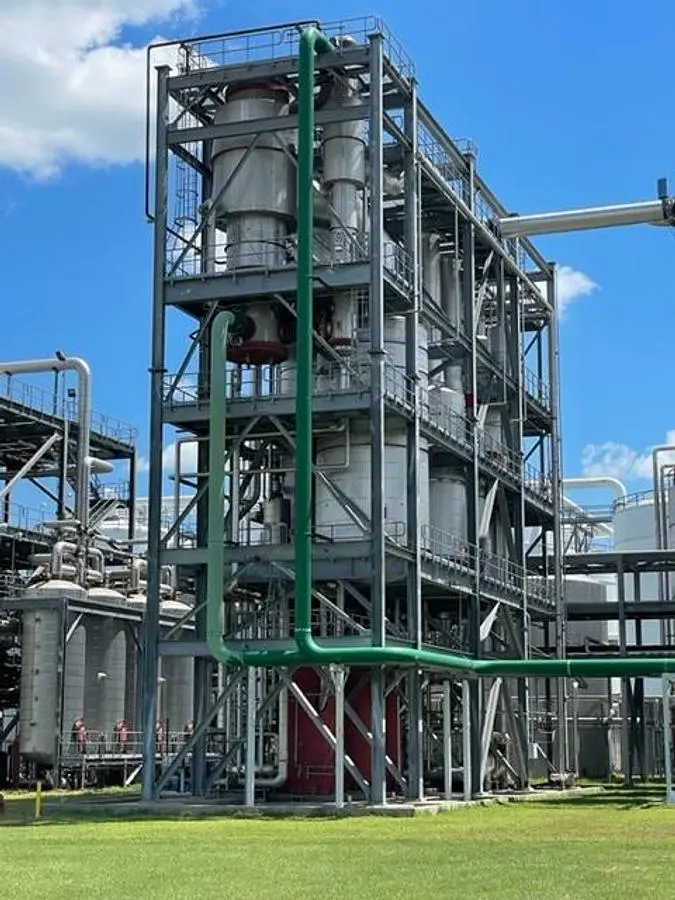

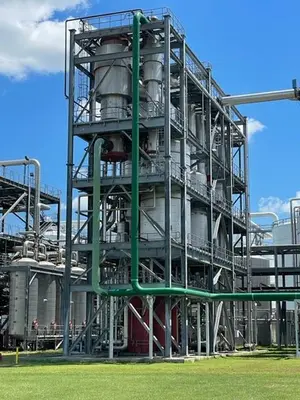

Evaporator, 4 Effect, Stainless Steel, Dedert, Clean Fuel, Steam, Flash #5991429

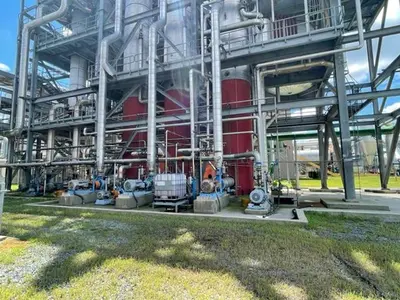

Quadruple (4)-effect clean fuel evaporator, flash process vapor, steam heated, manufactured by Dedert. The first effect is designed using forced circulation type heat transfer surface. The 2ⁿᵈ, 3ʳᵈ and 4ᵗʰ effects are designed using recirculated falling film type heat transfer surface. The final vapors from the 4ᵗʰ effect are condensed in a shell and tube type condenser supplemented by a vacuum pumps and motor. An auxiliary condenser condenses available flash water vapors energy and the process water while the evaporator is not processing product and when the evaporator is down for CIP cleaning. The evaporator components are constructed of Type 304L stainless steel for all parts in contact with the liquor, vapor, condensate and cooling water. The vapor separators, steam chests, condenser, vapor duct, and liquor circulating piping are constructed of mill finish plate or sheet; all welds are power wire brushed. External reinforcing is carbon steel. Previously used for corn stillage evaporation. Equipment plant drawings, manuals, blueprints, rigging and freight estimates available by request.

Stock Number: 5991429
Manufacturer: Dedert
Materials of Construction: 304L Stainless Steel
Previous Use: Corn Stillage Evaporation
Basis: As Is, Where Is
