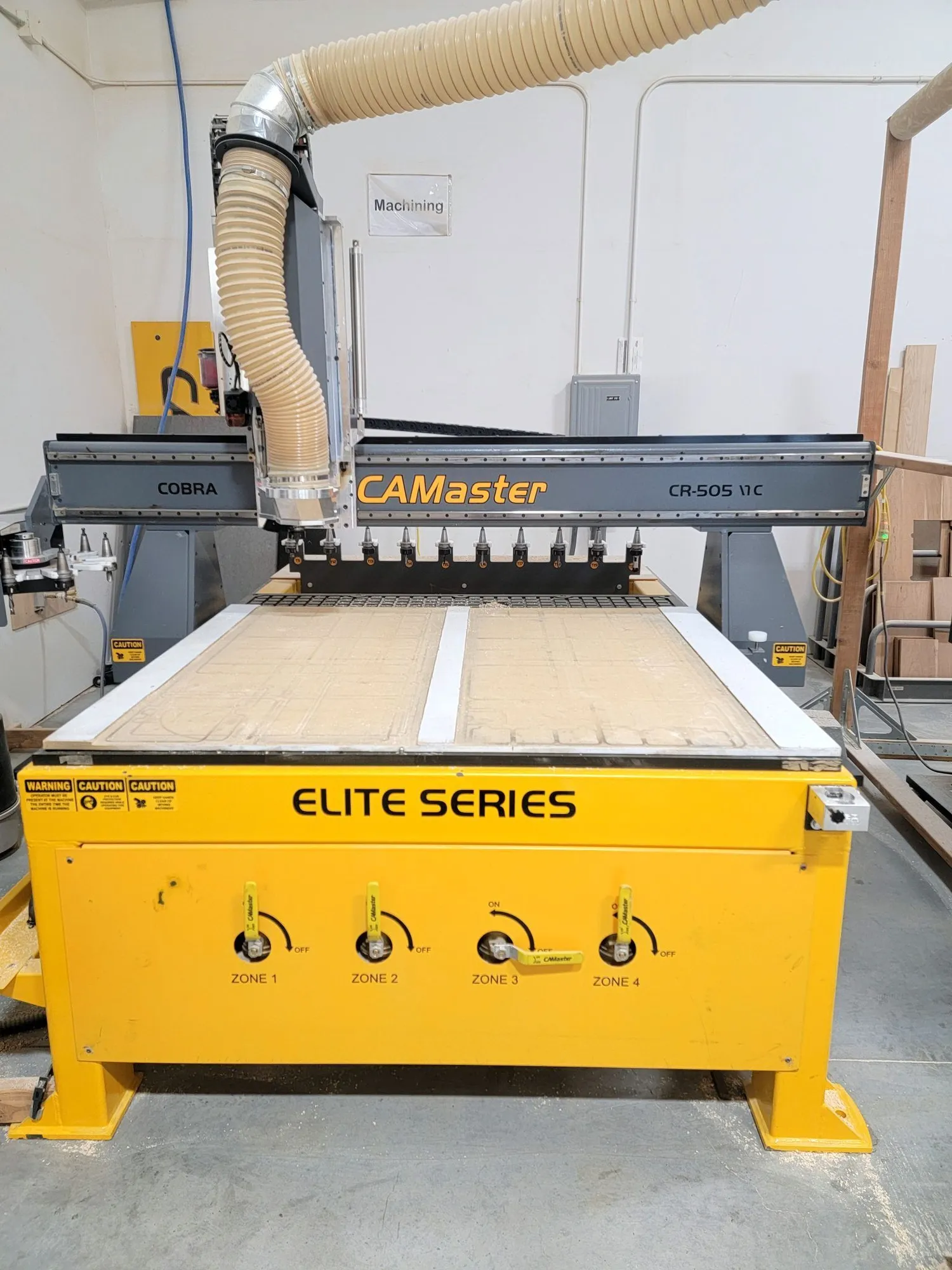

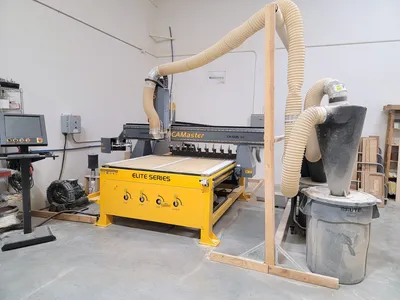

USED 2020 CAMASTER Cobra Elite CR-505

High-performance Camaster Cobra Elite CR-505 CNC Router with 12HP ATC spindle, 20-tool capacity, laser engraver, servo drive, and 15HP regen vacuum—built for industrial precision.

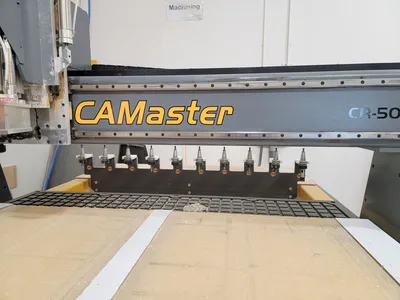

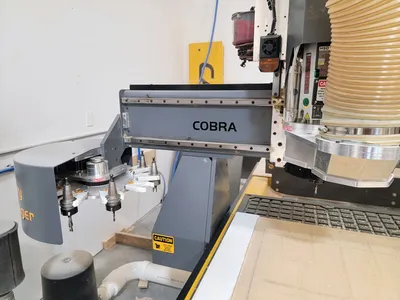

- Upgraded to a 12 HP HSD Automatic Toolchanging Spindle.
- Total of 20 tools
- 10 Tool Holders, 10 Tool Cones and 10 Collets. Upgraded to a Rotary
Carousel
- Additional 10 tool rack in the back. Includes (10) tool cones, (10) tool
forks and (10) tool collets.
- 7W Laser Engraver. Capable of both Vector and Raster engraving.
61" x 61" Cutting Area w/ 10" Z Clearance
- 12 HP HSD Collet Spindle
- Brushless AC Servo Drive System
- Dual Drive on Y Axis
- Z Axis Brake
- 25 MM Heavy Duty Precision Rails & Bearings on all Axis
- Industrial Steel Welded Frame
- All Steel Gantry
- All-Steel Gusseted Side Supports
- High Precision Planetary Gearboxes
- Helical Rack & Pinion
- Automatic Tool Measure Switch
- 2500 Inches Per Minute (IPM) Rapid Travel Speed
- Custom Built Monitor Stand with On/Off, Cycle Start, Cycle Stop and
E-Stop
Buttons and USB Port
- High Speed Visual CNC Control System (WinCNC)
- Windows 10 PRO Control Computer
- Touch Screen Monitor, Keyboard, & Mouse
- V Carve Pro Design Software
- Upgraded to Phenolic Table Top
15 HP FPZ Regen Vacuum Hold-Down System. Includes:
- 15 HP Regen Vacuum Pump. Pump runs off of 208-230/460 V 3
Phase Power.
- Safety Valve
- Inline Vacuum Filter
- Inlet Vacuum Filter
- Vacuum Gauge
- Vacuum Grided TableTop and Plumbing w/Valves for easy connection
to Vacuum Pump
- Auto Relief Valve to Engage and Disengage Vacuum On Table
Controlled Via G-Code

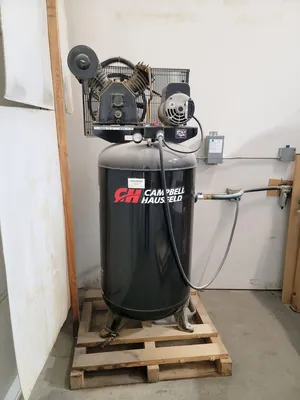

Campbell Hausfeld Electric Stationary Air Compressor 5 HP, 230 Volt,
1-Phase, 80-Gallon Vertical

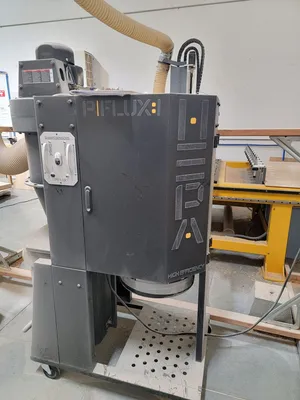

Laguna PFlux 1 Dust Collector
