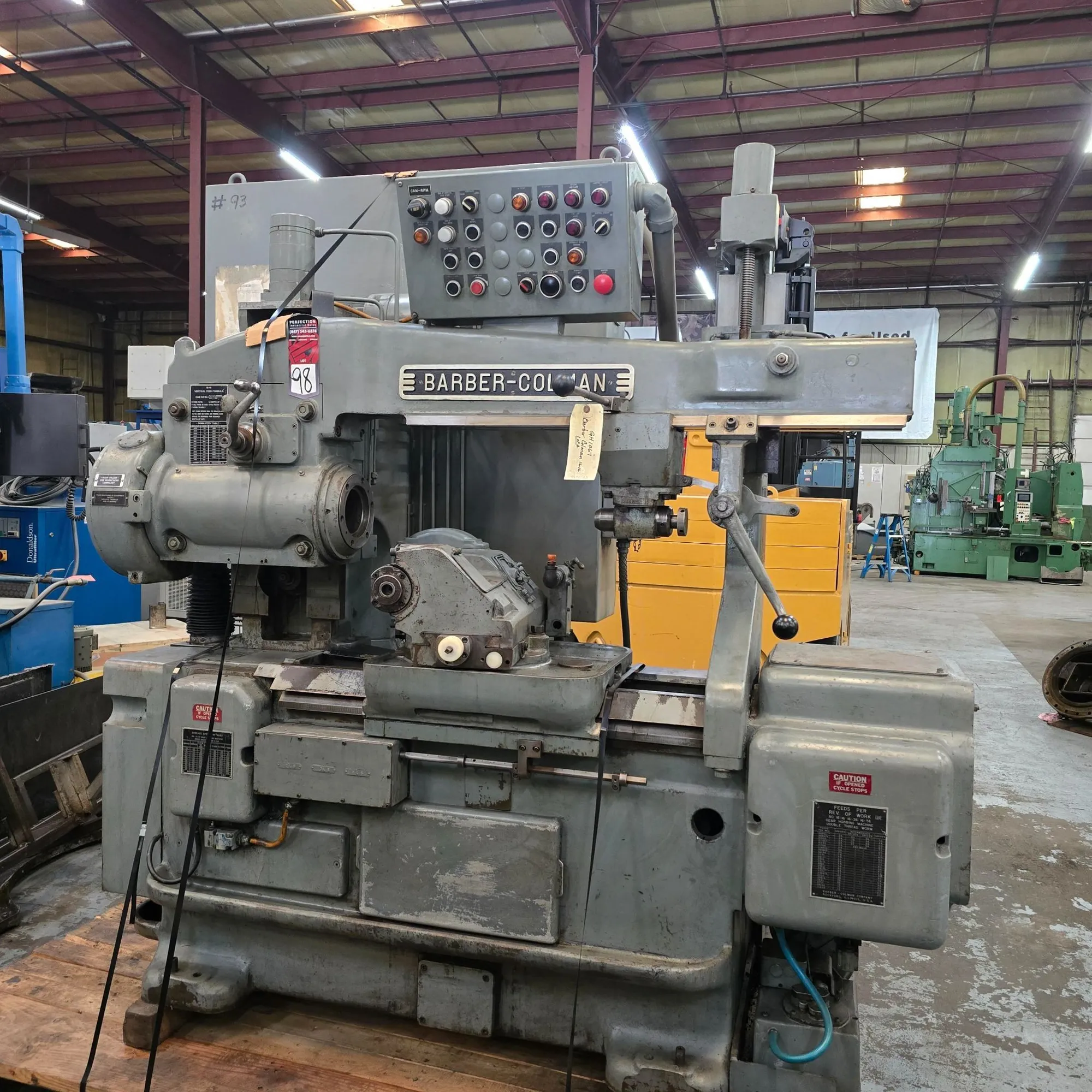

USED BARBER COLMAN 16-16

Barber Colman model 16-16 , C-Frame style , w/ Gooseneck Head option , adj tailstock and dual lead worm , excellent s/n 4569

Barber colman Horizontal Hobbing Machine
Model 16-16 square-cycle
C-Frame style machine W/ GOOSENECK HEAD ATTACHMENT !!
s/n 4569
Excellent condition

This C-Frame style machine is well equipped with several options . It
is an excellent job shop machine and is equipeed with optional Gooseneck
Hob head for cutting up close to a journal as well as many other options
below , come see under power in great condition

Machine catalog specifications:
* Max. DP in Steel 6 DP-10 DP
* Max. Work O.D. 16"
* Max. Hob Slide Travel 16" TBD
* Diameter of Hole Through Work Spindle 4-1/8"
* Max. Hob Diameter 5"
* Max. Vertical Adjustment of Work Spindle 8"
* Dist. C/L of Work Spindle to Underside of Overarm 8" TBD
* Dist. C/L of Work Spindle to C/L of Hob Spindle,
Max./Min 8.75"/0.75" TBD
* Dist. Face of Work Spindle to C/L of Hob Spindle,
Max./Min 19.5"/3.5"
* Max dist of shaft from spindle face - tailstock 42"
* Max. Hob Slide Swivel Angle Setting 45 Degrees
* 9 Hob Speeds (when equipped with suitable gears) 59-246 RPM
* Hob Feeds (when equipped with suitable gears) .0075-.1125"
* Floor Space (approx.) L x W x H 82" x 38" x 76"
* Weight (approx.) 7500 lbs

Machine Equipped With:
* Special Gooseneck hob head attachment for cutting close to a journal
* C-frame style for holding longer parts
* 2-Start index worm and Gear
* Large Bore in work spindle (4-1/8")
* Automatic cycle control (Downfeed , Square, and Plunge)
* 1 Hob Arbor
* Hob shift manual
* Tailstock- special Adjustable style
* Power 460 volt 3/phase
* 25-30 Change Gears
* Manual

Note: Machine can be inspected under power with Proper Notice.
Contact Rich Piselli at [email protected] to set up an inspection
or Visit our website at WWW.PiselliEnt.com to view this and other
Gear machinery!
