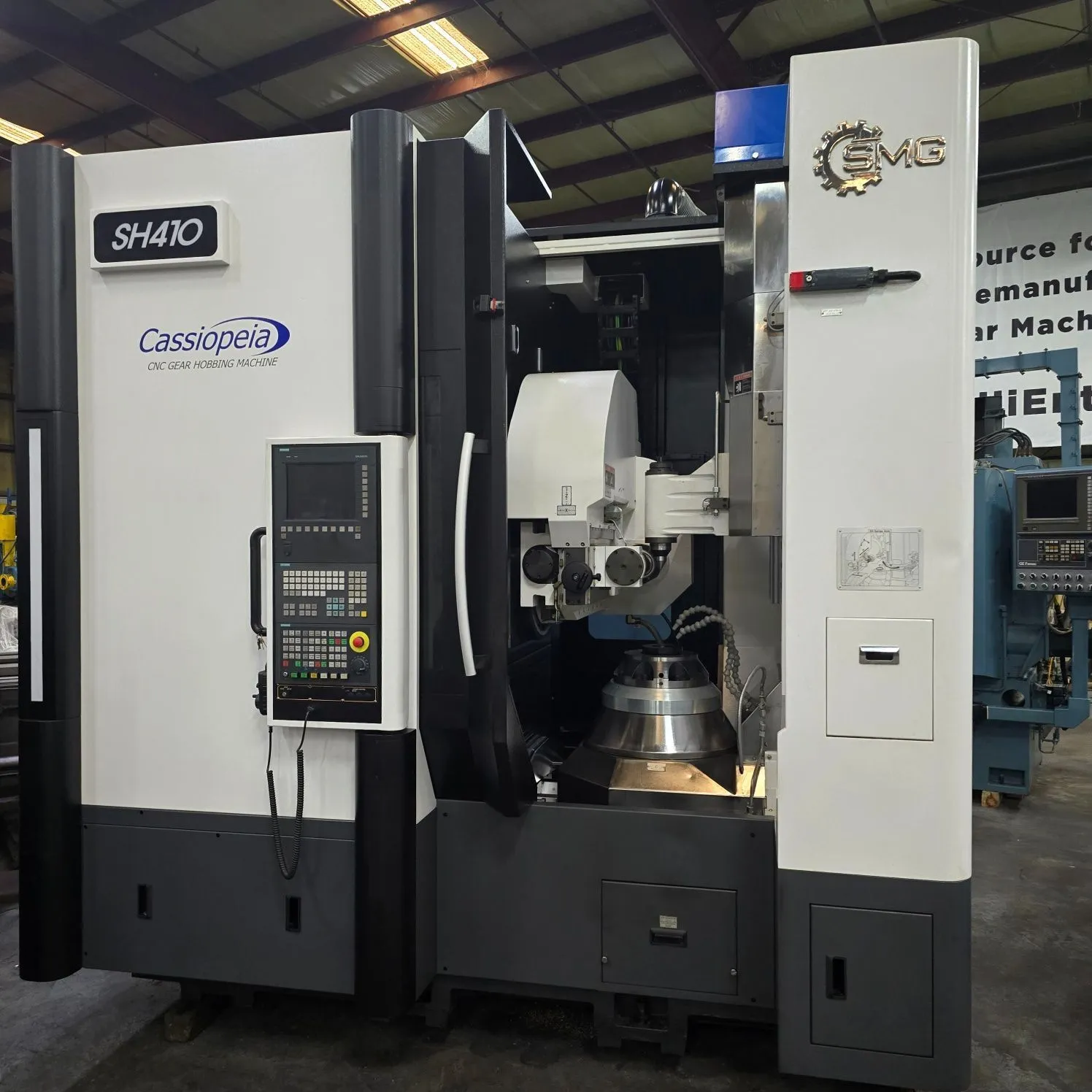

USED 2022 SMG SH410
Overview
SMG CNC Vertical Gear hobber Model SH-410 , 6 -Axis , 410 mm diameter , 3 DP, wet and Dry cutting, Siemens 840D Solution line control. Late model , excellent condition New 2022 s/n 00134
Specs
SMG vertical CNC Gear Hobbing machine
Model SH-410
s/n 00134
New 6/13/2022
Siemens 840D Solution Line control
this 6 axis machine is in "LIKE NEW" condition . The machine has been
purchased and is now located in our North American warehouse. This
machine has the latest model Siemens controller Solution line. Come
inspect this late model cnc gear hobber!!!
machine specifications are as follows:
Max Workpiece Diameter 410 mm
Max Modul M8 (3.1 DP)
Table Diameter 330 mm
Max Table speed 200 RPM
Max Hob Diameter 190 mm
Max Hob Length 230 mm
Max Hob speed 1500 RPM?
Max Hob shift 210 mm
Max hob swivel angle +/- 45 deg
Hob arbor taper BBT #40
Hob spindle motor power 15 kW
x-Axis travel 290 mm (15-305 mm)
Z-Axis Travel 370 mm (150-520 mm)
Tailstock center travel 400 mm (305-705 mm)
floor space required (L x W x H) 2776 x 3329 x 2990 mm
Machine weight 11,000 Kg or 24,000 lbs
Machine is equipped with the following :
Siemens 840-D solution line controls motors and drives
full guarding and panels
automatic door
chip conveyor
Hob arbors
and so much More!!!!
contact us today to confirm all specs and options. Machine has
Been Shipped to or Statesville NC plant for immediate sale . This
is the latest model offered by SMG with so many options.
contact us today for formal quote and pricing .
visit www.piselliEnt.com for more photos and information or contact
Rich Piselli at [email protected] to set up an inspection
thank you
Rich Piselli
704 609-0766
