USED AFTERMARKET 4-1/2" CLASS DRILL SYSTEMS DRILL ROD

4-1/2" Class Drill Systems Drill Rod
Foremost CTP Reverse Circulation Drill Pipe
20' Length X 4-1/2" OD X 3-1/4" OD)

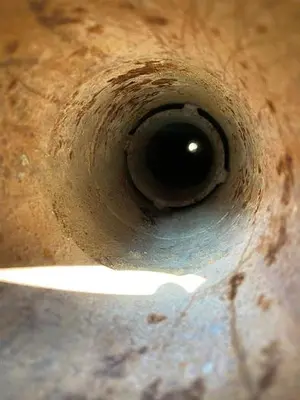

Currently Has "BAD"Steel Inner Tubes Installed (Inner Tubes can be removed by pressing; with PIN down you push out the BOX end)

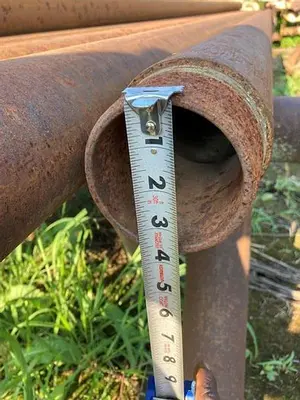

Inside diameter is approximately 3-1/4” ID, if you want to run without inner tubes
If inner tubes required we may be able to procure new inner tubes from Foremost on your behalf but would be considerable additional cost
Reverse circulation (RC) drill pipe is a dual wall pipe used for uncontaminated, representative and continuous samples
It is also used to reduce air requirements and maintain uphole velocity in larger diameter drilling applications. RC Inlet air passes between the inner tube and outer barrel. Cuttings are evacuated through the center tube
Connector Tube Pipe (CTP) – A dual tube design, incorporating an outer barrel and a concealed inner tube. Connector tubes are required when using CTP and are manually connected

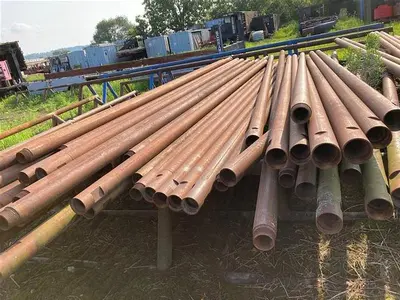

Qty. 140 pieces in stock
Located in Mifflinburg, PA USA
