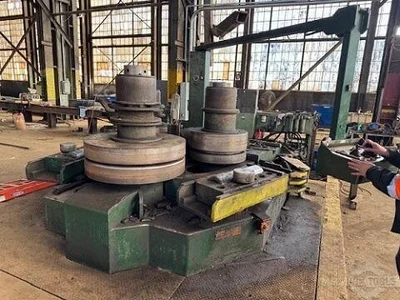

8” X 8” X 1” Angle Roll with Hydraulic Motor w/ Built in Brake & Controls, Variable Speeds, Hydraulically Powered Adjustment of Lower Rolls, 6 - Directional Hydraulic Guide Rolls and Remote Operated Push Button Controls, w/ Emergency Stop Button.GENERAL SPECIFICATIONS Roll Diameter: 29”Angle Leg Out: 8” X 8” X 1”Min. Diameter: 125”Angle Leg In: 8” X 8” X ¾”Min. Diameter: 140”Min. Angle Size: 3” X 3” X ¼”Flat Iron on Flat: 3” X 15”Flat Iron on Edge: 2-¼” X 8”Min Diameter: 80”T - Section Leg Out: WT8” X 50” / WT7” X 141.5”T - Section Leg In: WT8” X 50” / WT7” X 116.5” I - Beam & Channel: 18” WFSquare Bar: 6”Round Bar: 6” Pipe: 9”Min Diameter: 120”Floor Space: 110” X 165”Approx. Weight: 50,000 LbsMotor: 75 HP / 220/440VINCLUDES: Hydraulic Motor w/ Built in Brake & Controls, Variable Speeds, Hydraulically Powered Adjustment of Lower Rolls, 6 - Directional Hydraulic Guide Rolls and Remote Operated Push Button Controls, w/ Emergency Stop Button.
