USED 2020 COLD SHOT CHILLERS ACWC-060-Q-DR-LT-0-5

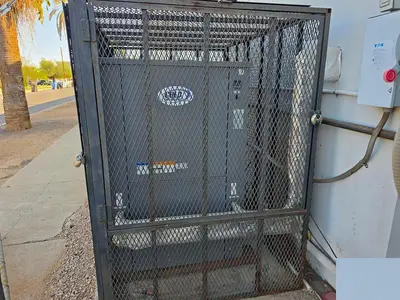

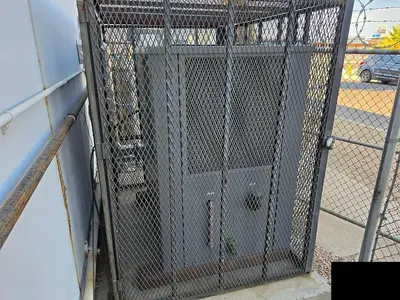

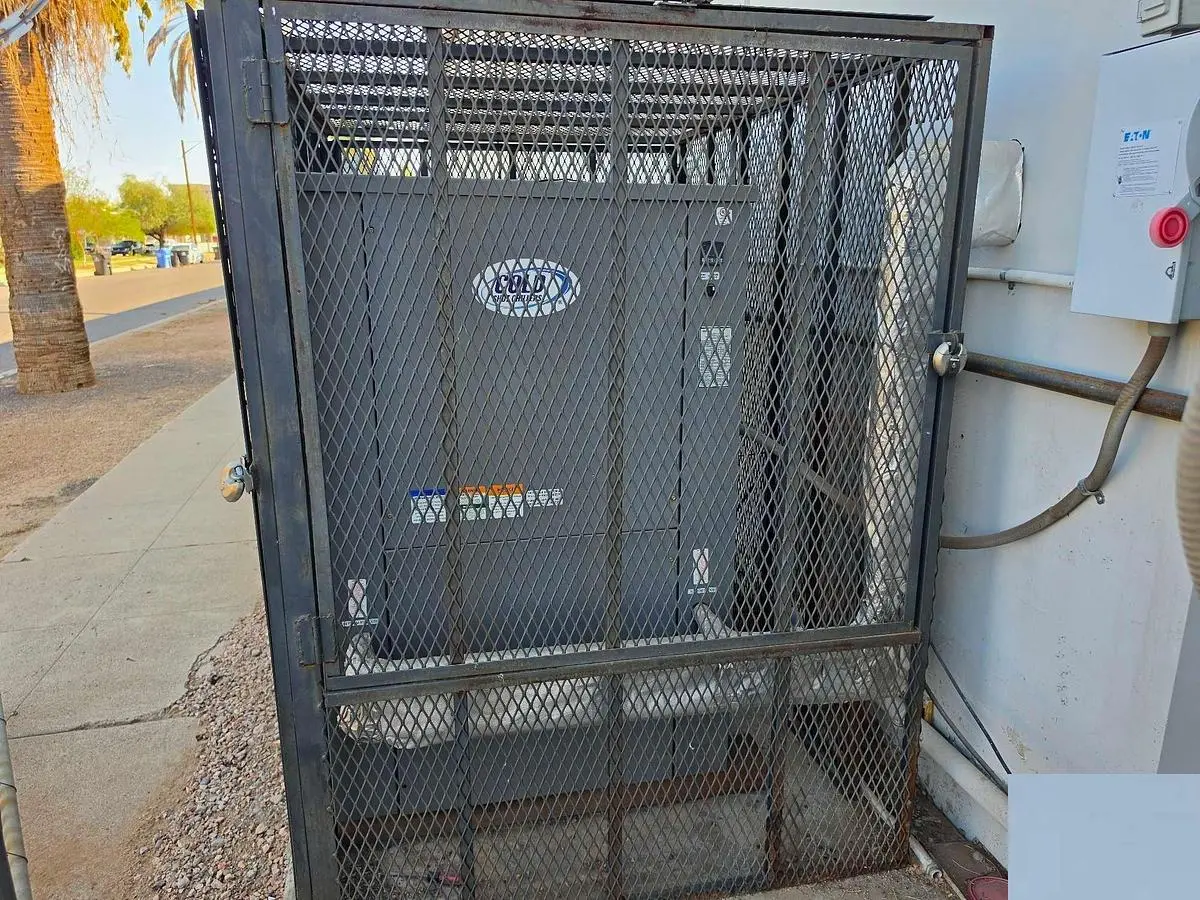

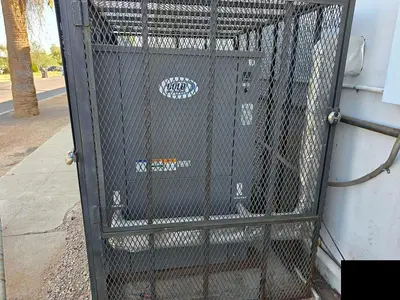

Item is a used Cold Shot 5hp glycol chiller - this is an indoor/outdoor packaged chiller that was last used to chill tanks in a beverage manufacturing facility. It is a USA built machine that was installed in 2020. Specifications include-

Cold Shot Chillers ACWC-060-Q-DR-LT-0-5 is a 5-ton (60,000 BTU/hr) portable, air-cooled industrial water or glycol chiller. It features specialized low-temperature configurations and digital/process controls designed for demanding commercial and manufacturing applications requiring precise thermal regulation.

Model Nomenclature Breakdown

ACWC: Air-Cooled Water Chiller
060: Capacity indicator representing 60,000 BTUs/hr (equivalent to 5 cooling tons)
Q: Indicates the inclusion of an energy-efficient scroll compressor
DR / LT / 0-5: Custom or specialized factory options denoting digital readout/diagnostics, low-temperature (-LT) fluid capabilities, and specific pump/reservoir configurations.

Features:

5 tons (60,000 BTU/hr)
25 Gallon Stainless Steel Reservoir Tank with Lid
This Low Temp Model has a leaving fluid temperature range of 20 - 70° F.
Rated to 0°F ambient temperature*
1” MNPT Inlet and Outlet
Stainless Steel 1 HP Centrifugal Pump outputs 30 GPM at 30 PSI
208/230 3 phase power Required
Large Reservoir easily filled from outside, and level indicated with sight gauge
Welded steel powder coated frame and full metal cabinet with copper piping connections
Digital Temperature controller with Self-Diagnostic control system
Rugged Protection, while still easy to maintain and Wash Down
High Flow Pump, Long Life, Dependable units!
Stainless Steel Plate Evaporators Vacuum brazed with Copper
Dependable Copeland Welded hermetic Scroll Compressors
50.5"x38.5"x57"
500 lb
UL Certified
