USED SEW-EURODRIVE SAF37DRS71S4

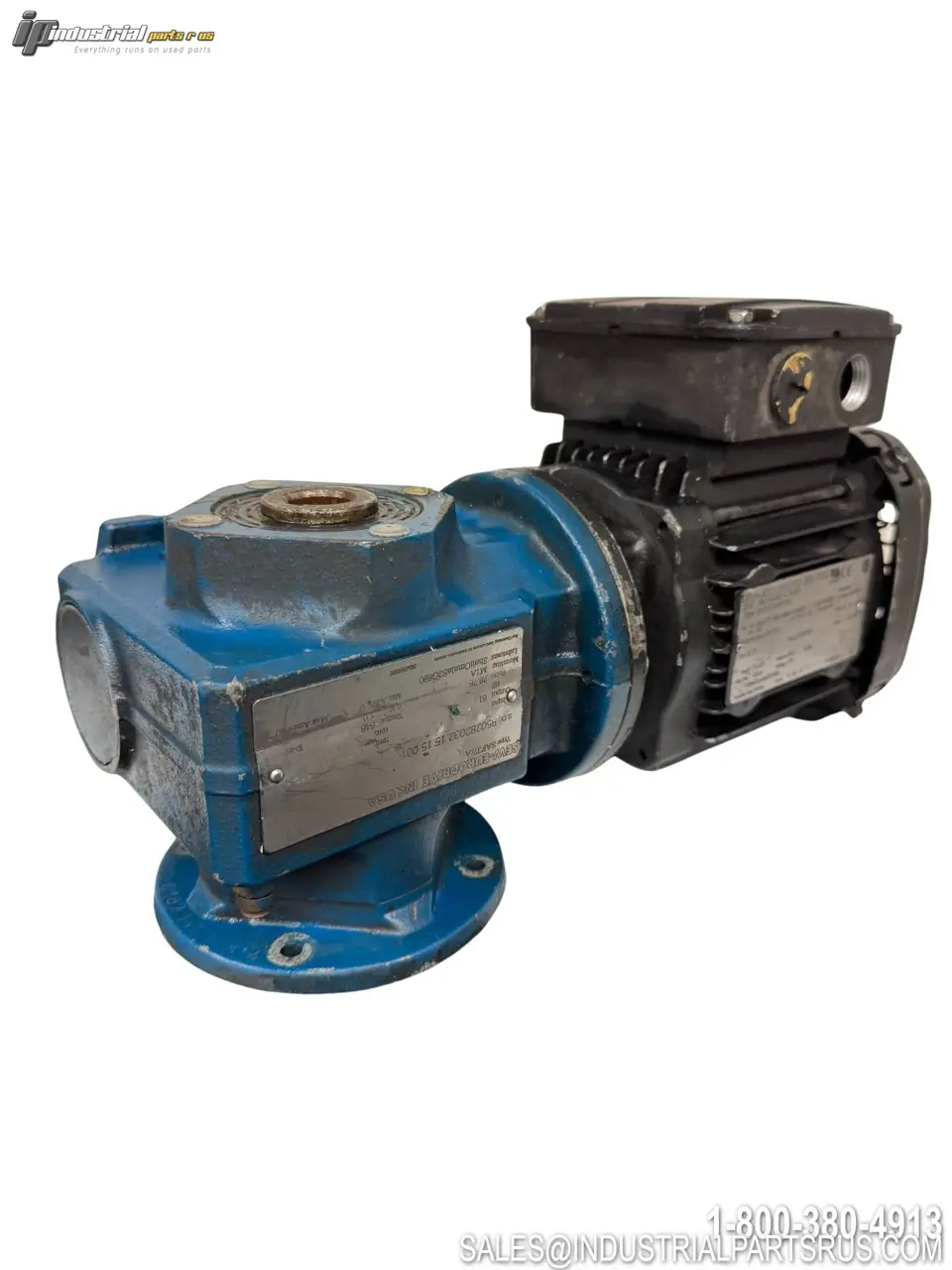

The SEW-Eurodrive SAF37DRS71S4 is a right-angle helical-worm gearmotor combining an SAF37 worm gear unit (flange-mounted, size 37) with a DRS71S4 AC motor (frame 71S, 4-pole). It delivers 0.37 kW (0.5 HP) at 1700 RPM input (60 Hz) and approximately 39 RPM output at a 43.68:1 gear ratio, with a 20 mm hollow shaft output for direct shaft mounting. Designed for industrial automation including conveyors, packaging machinery, and material handling, it features a TEFC/IP54 enclosure and 230/460V dual-voltage capability. Full load current is 1.84A at 230V and 0.92A at 460V. The unit is reversible and rated for continuous duty (S1).
Specification
Value
Brand
SEW-Eurodrive
Model / Part Number
SAF37DRS71S4
Product Type
Helical-Worm Gearmotor
Gear Unit Type
SAF37 (Right-Angle Helical-Worm, Flange-Mounted, Hollow Shaft)
Motor Frame
DRS71S (Frame 71S)
Rated Power
0.37 kW (0.5 HP)
Voltage
230/460V (Double-Star/Star)
Phase
3-Phase
Frequency
60 Hz
Motor Poles
4-Pole
Input Speed (60 Hz)
1700 RPM
Input Speed (50 Hz)
1380 RPM
Output Speed (60 Hz)
~39 RPM
Output Speed (50 Hz)
~32 RPM
Total Gear Ratio
43.68 / Infinite
Output Torque (60 Hz)
71 Nm
Output Torque (50 Hz)
87 Nm
Max Output Torque (Ma Max)
81 Nm
Service Factor (SEW-FB)
0.95 / 1.10
Enclosure Type
TEFC / IP54
Insulation Class
F (155°C)
Mounting Position
M2A
Shaft Type
Hollow Shaft
Hollow Shaft Bore
20 mm
Shaft Orientation
Right Angle
Mounting Bolt Circle
100 mm
Pilot Diameter
80 mm
Cyclic Duration Factor
S1 (Continuous)
Lubricant
CLP 680 Mineral Oil
Housing Material
Aluminum
Energy Efficiency Class
IE1 / Standard Efficiency
No Brake
No Brake Included
Design Standard
IEC
We warranty all items for 30 days from date of purchase.
