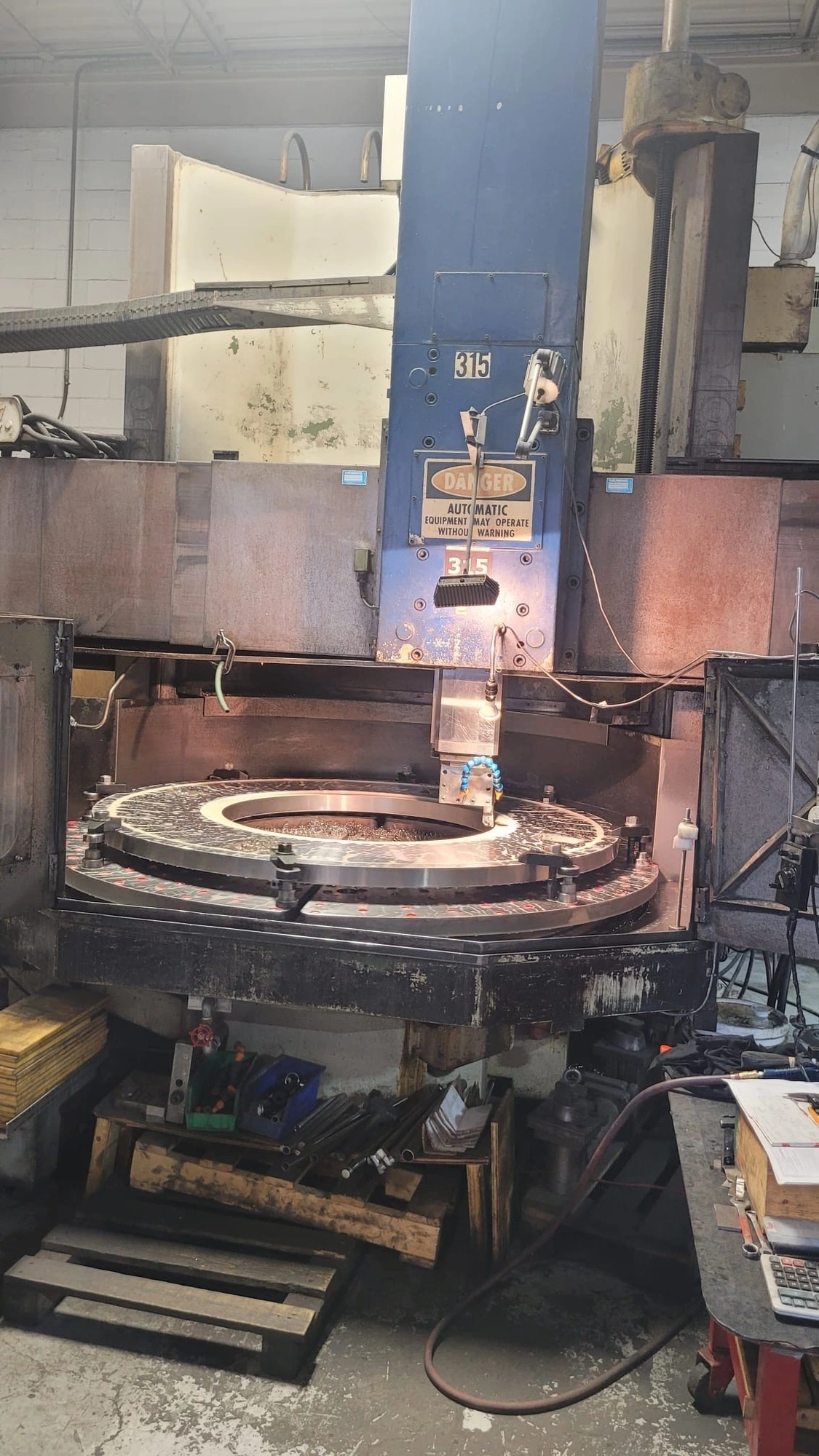

USED O-M VT5-16N
Overview
Description
Under Power, 63" Table, Fanuc CNC, 12 Position Automatic Tool Changer
Specifications
| Chuck / Table Dia | 63" | 1,600.2 mm |
|---|---|---|
| Swing | 78.74" | 2,000 mm |
| Work Ht-U/R | 62.99" | 1,599.9 mm |
| Maximum Turning Length | 63 in | |
| RPM | 275 RPM | 275 RPM |
| Power | 75 hp | 55.9 kW |
O-M VT5-16N CNC Vertical Boring Mill
Table Dia 1600mm/ 63"
Max Swing 2000 mm/ 78.75"
Max Turning Height 1600mm / 63"
Max Table Capacity 15400 lbs
Max Torque of Table 20/000 nm / 14470 ft lbs
Table speeds 1.6-66 RPM (Low)
Table speeds 6-270 RPM (High)
Table Transmission 2 speed
Min Distance From Bottom Cross Rail to Table Top 1115mm
Max Distance From Bottom Cross Rail to Table Top 1915
Cross Rail Positioning Steps Programmable 6 Steps Every 7
Height Under Cross Rail 36"
Vertical Travel of Ram Head 900mm/ 35.46"
Tool Holder Shank Size 32mm x 32mm / 1 1/4" x 1 1/4"
Ram Size 210mm x 210mm / 8/4" x 8 1/4"
Rapid Traverse Rate 10,000 mm / 393 IPM
Approximate Machine Weight 19000 kg/ 41800 Lbs
Equipped With
63" Table
12 Position Automatic Tool Changer
Fanuc Control
Very Good Condition
Under Power For Inspection
