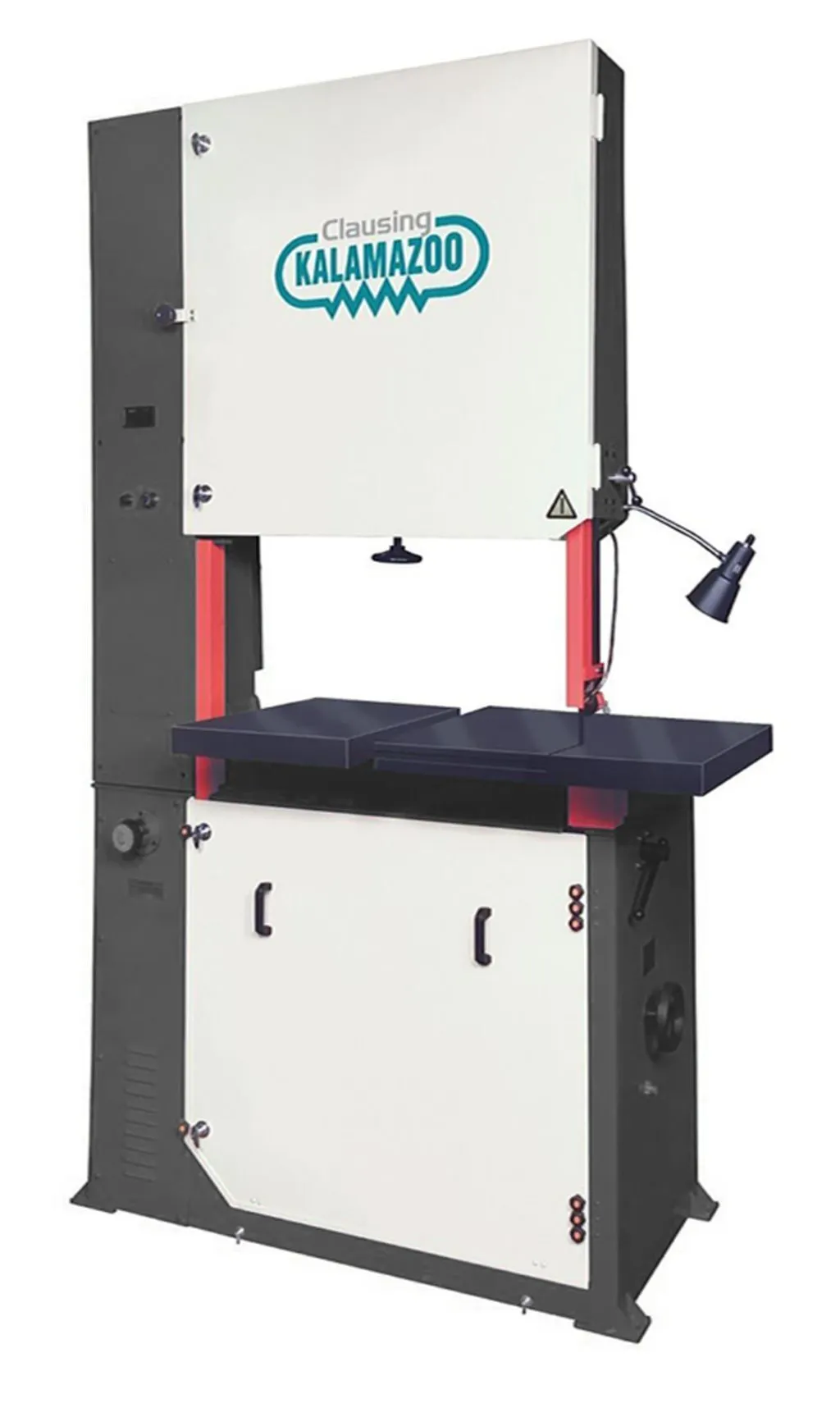

NEW 2025 CLAUSING KALAMAZOO V4014F

Specifications:
Machine Style..........Vertical Manual
Drive Type..........Motor to Gearbox
Maximum Capacity Throat Width (inch)..........40
Maximum Capacity Height (inch)..........14
Work Table Size (inch)..........29 x 27
Voltage..........230 or 460
Phase..........3
Coolant System..........Chip Blower
Blade Width (inch)..........1/8” – 1”
Blade Length (inch)..........262.5
Blade Speeds (SFPM)..........50-5200
Blade Guide Type..........Chevron
Motor Horsepower..........5
Machine Size (inch)..........72 x 41 x 113
Machine Weight (lbs.)..........2976

Machine Features:
• Magnetic starter with 110V control circuit and overload protection
• Dual range transmission
• 5Hp drive motor with brake (full stop from max speed within 10 seconds)
• 26-34” x 29” fixed heavy duty cast iron table with 2 way tilt 15 degrees left/15 degrees left
• Sets of (4) Chevron type blade guides, sizes 1/16”, 1/8”, 3/16”, ¼”, 3/8” , ½” , 5/8”, ¾” and 1” Back-up rollers in blade guide brackets
• Bonded rubber band wheels
• 110V work light
• Built-in air chip blower
• Blade tension indicator
• Blade speed indicator
• Rip Fence
• Locking band wheel doors
• Auxiliary Table 19” W x 26 ¾” L
• 2 year limited warranty
