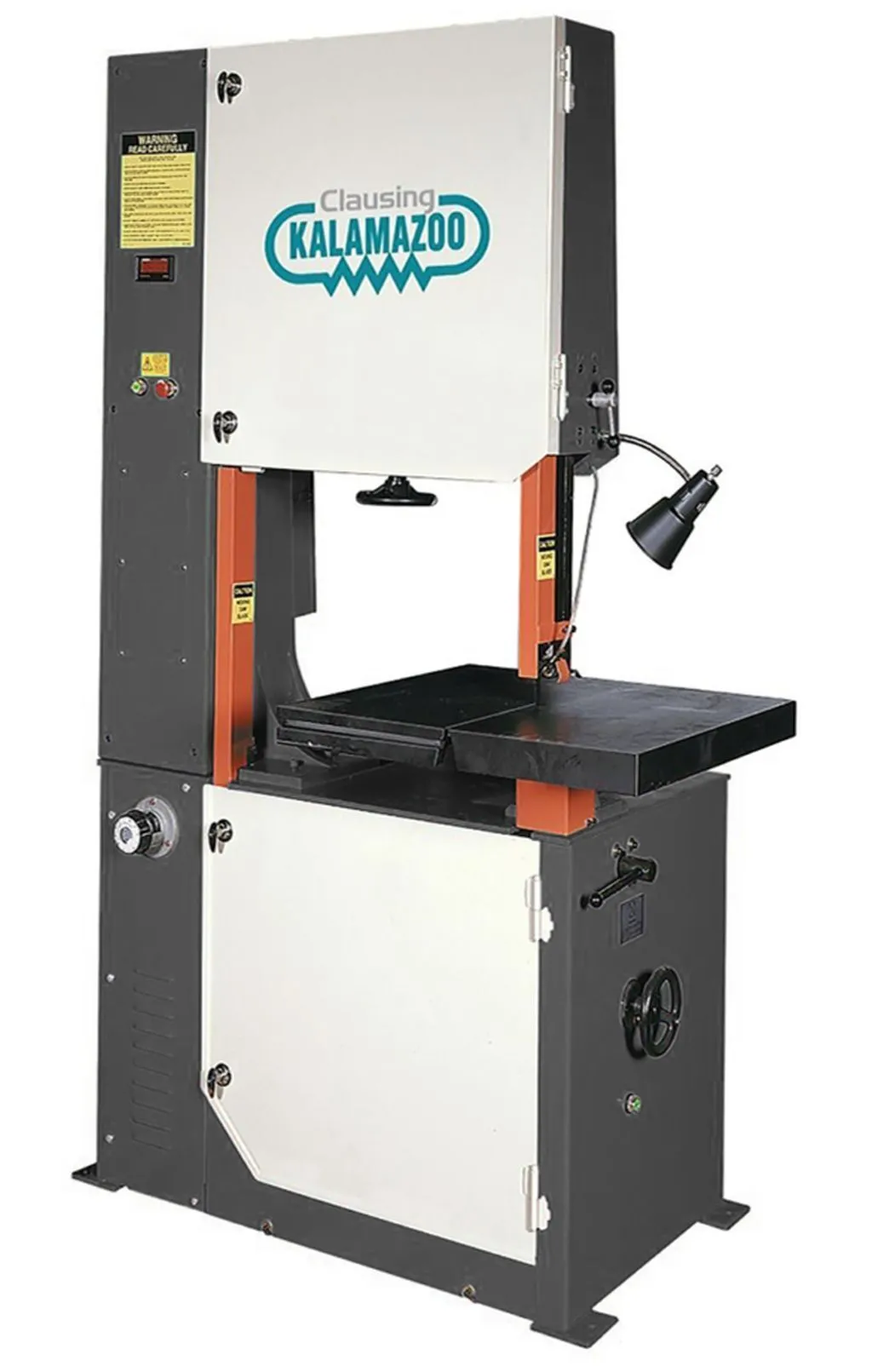

Discover precision with the new Clausing Kalamazoo V2812F Vertical Bandsaw. Features include a 28" throat, 12" work height, 3 hp motor, and a versatile cast iron table with 2-way tilt. Equipped with a magnetic starter and dual range transmission for superior performance.
| Throat | 28" | 711.2 mm |
| Work Height | 12" | 304.8 mm |
| Power | 3 hp | 2.2 kW |
| Blade Width | 1" | 25.4 mm |
| Blade Length | 197.5" | 5,016.5 mm |
| FPM | 5200 | 5200 |
| Dimensions | 61" x 44" x 91" | 61" x 44" x 91" |
| Weight | 1,650Lbs | 1,650Lbs |
Specifications:
• Machine Style..........Vertical Manual
• Drive Type..........Motor to Gearbox
• Maximum Capacity Throat Width (inch)..........28
• Maximum Capacity Height (inch)..........12
• Work Table Size (inch)..........26-3/4 x 29
• Voltage..........230 or 460
• Phase..........3
• Coolant System..........Chip Blower
• Blade Width (inch)..........1/8” – 1”
• Blade Length (inch)..........197.5
• Blade Speeds (SFPM)..........50-5200
• Blade Guide Type..........Chevron
• Motor Horsepower..........3
• Machine Size (inch)..........61 x 44 x 91
• Machine Weight (lbs.)..........1650
Machine Features:
• Magnetic starter with 110V control circuit and overload protection
• Dual range transmission
• 3 Hp Drive motor
• 26-34” x 29” fixed heavy duty cast iron table with 2 way tilt 15 degrees left/15 degrees left
• Sets of (4) Chevron type blade guides, sizes 1/16”, 1/8”, 3/16”, ¼”, 3/8” , ½” , 5/8”, ¾” and 1” Back-up rollers in blade guide brackets
• Bonded rubber band wheels
• 110V work light
• Built-in air chip blower
• Blade tension indicator
• Blade speed indicator
• Rip Fence
• Locking band wheel doors
• 2 year limited warranty
