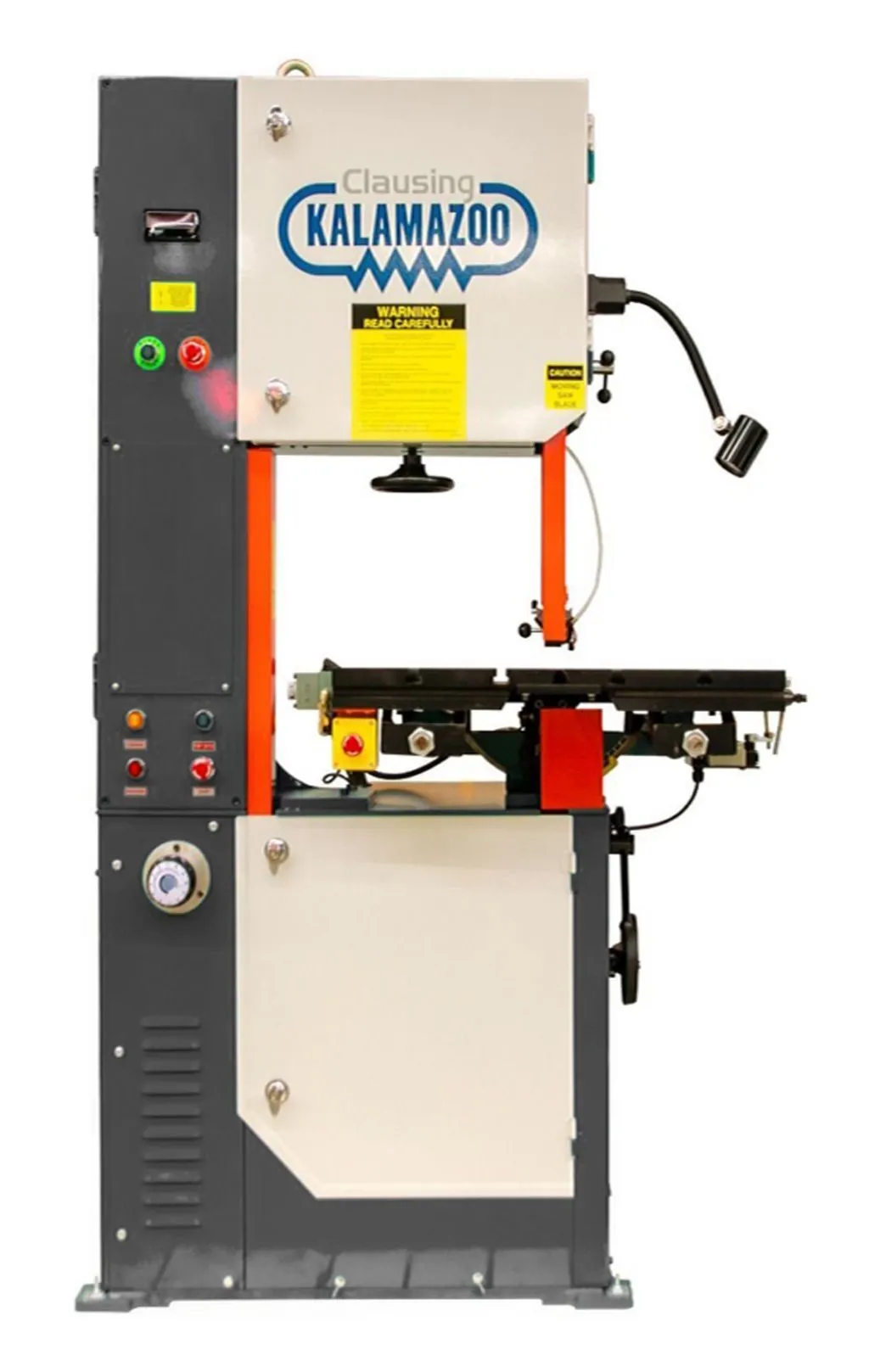

Explore precision and versatility with the new Clausing Kalamazoo V2012H Vertical Bandsaw. Featuring a 20" throat, 12.75" work height, 3 hp motor, and adjustable blade speeds up to 5200 SFPM. Perfect for diverse cutting needs.
| Throat | 20" | 508 mm |
| Work Height | 12.75" | 323.85 mm |
| Power | 3 hp | 2.2 kW |
| Blade Width | 1" | 25.4 mm |
| Blade Length | 161.4" | 4,099.6 mm |
| FPM | 5200 | 5200 |
| Dimensions | 51" x 44" x 81" | 51" x 44" x 81" |
| Weight | 1500Lbs | 1500Lbs |
Specifications:
• Machine Style..........Vertical Manual
• Drive Type..........Motor to Gearbox
• Maximum Capacity Throat Width (inch)..........20
• Maximum Capacity Height (inch)..........12.75”
• Work Table Size (inch)..........26-3/4 x 29
• Voltage..........230 or 460
• Phase..........3
• Coolant System..........Chip Blower
• Blade Width (inch)..........1/8” – 1”
• Blade Length (inch)..........161.4
• Blade Speeds (SFPM)..........50-5200
• Blade Guide Type..........Chevron
• Motor Horsepower..........3
• Machine Size (inch)..........51 x 44 x 81
• Machine Weight (lbs.)..........1500
Machine Features:
• Magnetic starter with 110V control circuit and overload protection
• Dual range transmission
• 3 Hp Drive motor
• 26-3/4” x 29” hydraulic moving heavy duty cast iron table with 2 way tilt 15 degrees left/ 15 degrees right. 4 T-slots on top surface and 13” travel. E-stop on table.
• Sets of (4) Chevron type blade guides, sizes 1/16”, 1/8”, 3/16”, ¼”, 3/8” , ½” , 5/8”, ¾” and 1” Back-up rollers in blade guide brackets
• Bonded rubber band wheels
• 110V work light
• Built-in air chip blower
• Blade tension indicator
• Blade speed indicator
• Rip Fence
• Locking band wheel doors
• 2 year limited warranty
