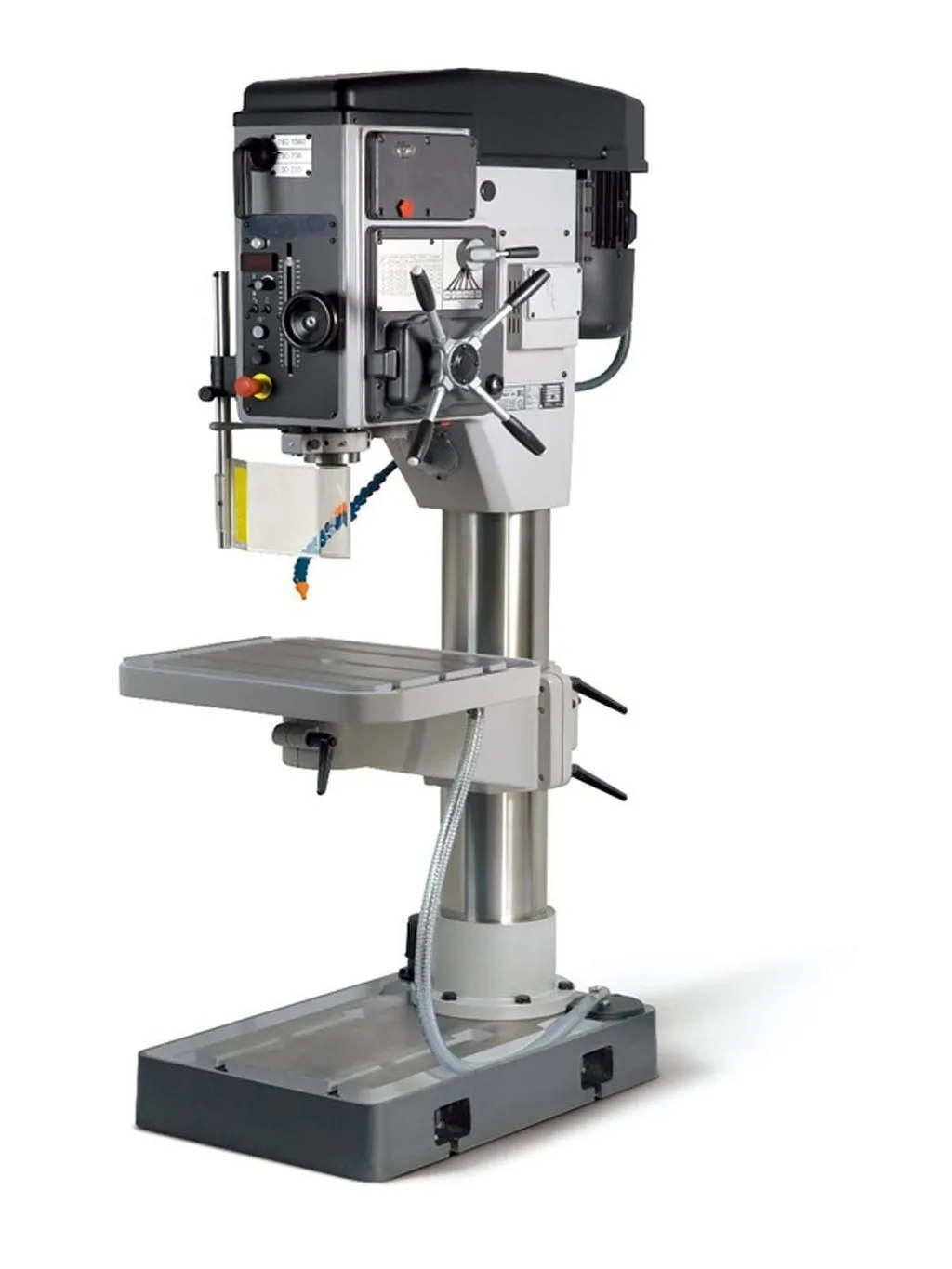

NEW 2025 CLAUSING IBARMIA BC40VE

Machine Style.......... Floor Drill W/Adjustable Table
Drive Type.......... Belt Head Drive Mechanical Variable Speed
Number of Speed Steps.......... 3
Spindle Speeds Range 1 (RPM).......... 36 – 360
Spindle Speeds Range 2 (RPM).......... 108 – 1080
Spindle Speeds Range 3 (RPM).......... 228 – 2280
Column to Spindle Center (in).......... 14.17
Spindle Nose.......... 4MT
Spindle Travel (in).......... 7.87
Quill Feed.......... Electromagnetic Clutch
4 Feed Ranges (in/rev).......... 0.0039, 0.0079, 0.0118, 0.0157
Spindle to Work Surface Min/Max. (in).......... 1.97 / 27.16
Column Diameter (in).......... 6.89
Adjustable Table Surface (in).......... 21.65 x 21.65
Work Table T-Slots (in).......... 1/2
Base Size (in).......... 31.9 x 26.3
Drill Capacity with Manual Feed (in).......... 1.57
E-Stop Switch.......... Yes
Voltage.......... 230 or 460
Phase.......... Three
Motor Horsepower.......... 4
Machine Weight (lbs.).......... 1,455
Machine Dimensions (WxDxH in).......... 26 x 40 x 81.9
Shipping Weight (lbs.).......... 1,653
Shipping Dimensions ships laying down (LxWxD in).......... 91 x 28 x 48

Machine Features:

• Electronic inverter variable speed belt drive
• LED Speed Display
• 3 Speed Gear head with shift lever on the face of the drill
• Gear box lubrication by automatic pump
• Hardened and Ground high quality steel gears
• 4 Hp spindle motor
• Built in low voltage electrical equipment
• Depth scale and adjustable depth stop
• Electromagnetic clutch quill feed system
• Adjustable work table, rotating and tilting
• work light
• Manual fine feed control handwheel
• Automatic spindle reversing system for tapping
• Thermomagnetic motor breaker switch
• Machined base with coolant tank
• Safety drill guard with microswitch
• Automatic tool ejector
• Emergency stop button
• CE mark
