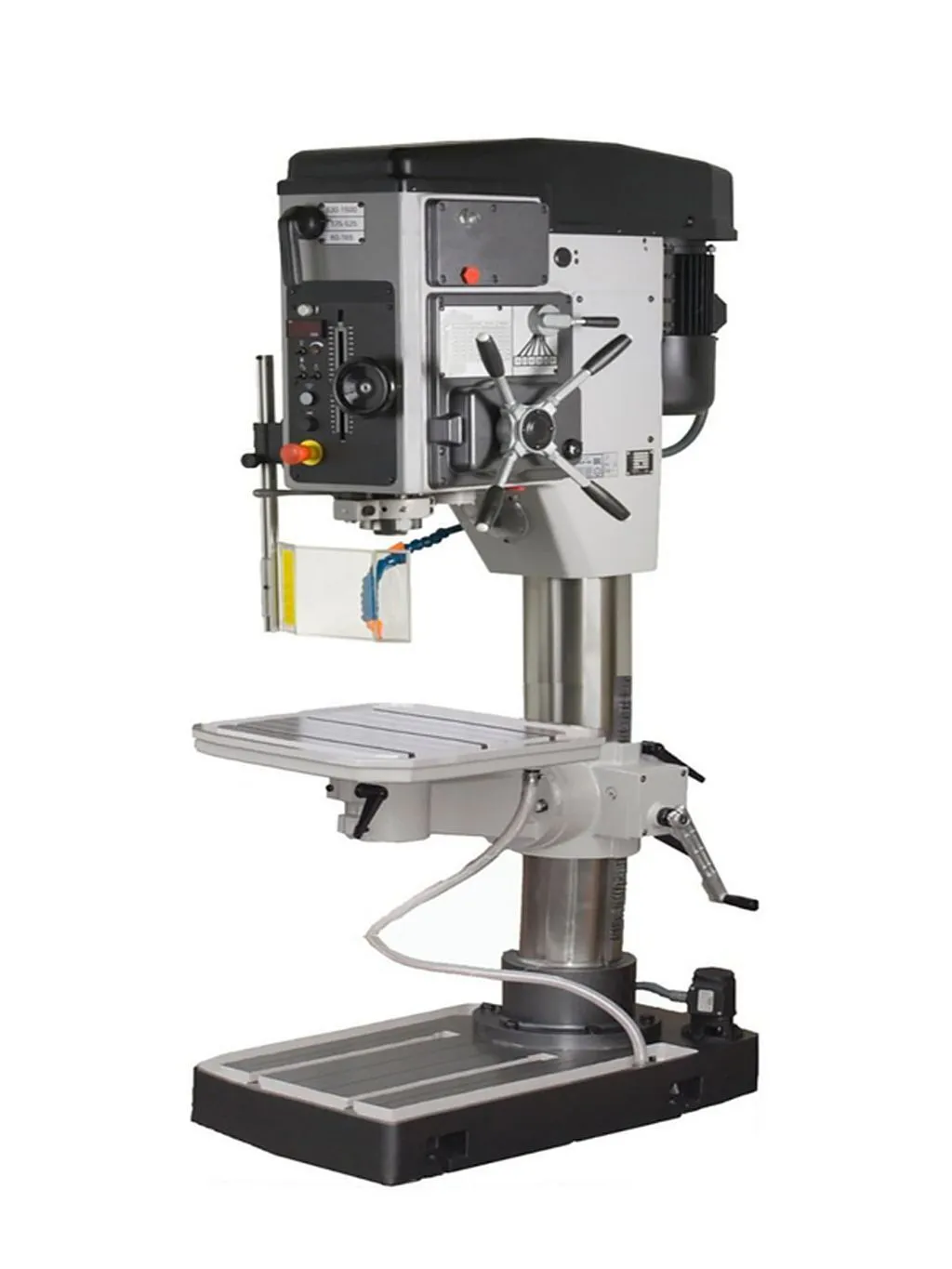

NEW 2025 CLAUSING IBARMIA BC40V

Clausing Ibarmia BC40V Iberdrill 28.34” Floor Drill Press Belt Drive 3 Speed Gear Head Drive, Adjustable Rotating Work Table, 72 – 1800 RPM by mechanical variable speed, 3.46” diameter quill, 4MT taper spindle, Electromagnetic clutch quill feed, 4 hp spindle motor, 1.57” drill capacity steel, 230/460 volt 3 Phase voltage

Machine Style.......... Floor Drill W/Adjustable Table
Drive Type............. Belt Head Drive Mechanical Variable Speed
Number of Speed Steps.. 3
Spindle Speeds Range 1 (RPM) 72 – 240
Spindle Speeds Range 2 (RPM) 240 – 720
Spindle Speeds Range 3 (RPM) 720 – 1800
Column to Spindle Center (in) 14.17
Spindle Nose........... 4MT
Spindle Travel (in).... 7.87
Quill Feed............. Electromagnetic Clutch
4 Feed Ranges (in/rev) 0.0039, 0.0079, 0.0118, 0.0157
Spindle to Work Surface Min/Max. (in) 1.97 / 27.16
Column Diameter (in)... 6.89
Adjustable Table Surface (in) 21.65 x 21.65
Work Table T-Slots (in) 1/2
Base Size (in)......... 31.9 x 26.3
Drill Capacity with Manual Feed (in) 1.57
E-Stop Switch.......... Yes
Voltage................ 230 or 460
Phase.................. Three
Motor Horsepower....... 4
Machine Weight (lbs.).. 1,455
Machine Dimensions (WxDxH in)
26 x 40 x 81.9
Shipping Weight (lbs.). 1,653
Shipping Dimensions ships laying down (LxWxD in)
91 x 28 x 42

Machine Features:
• Mechanical variable speed belt drive
• 3 Speed Gear head with shift lever on the face of the drill
• Gear box lubrication by automatic pump
• Hardened and Ground high quality steel gears
• 4 Hp spindle motor
• Built in low voltage electrical equipment
• Depth scale and adjustable depth stop
• Electromagnetic clutch quill feed system
• Adjustable work table, rotating and tilting
• Work light
• Manual fine feed control handwheel
• Automatic spindle reversing system for tapping
• Thermomagnetic motor breaker switch
• Machined base with coolant tank
• Safety drill guard with microswitch
• Automatic tool ejector
• Emergency stop button
• CE mark
