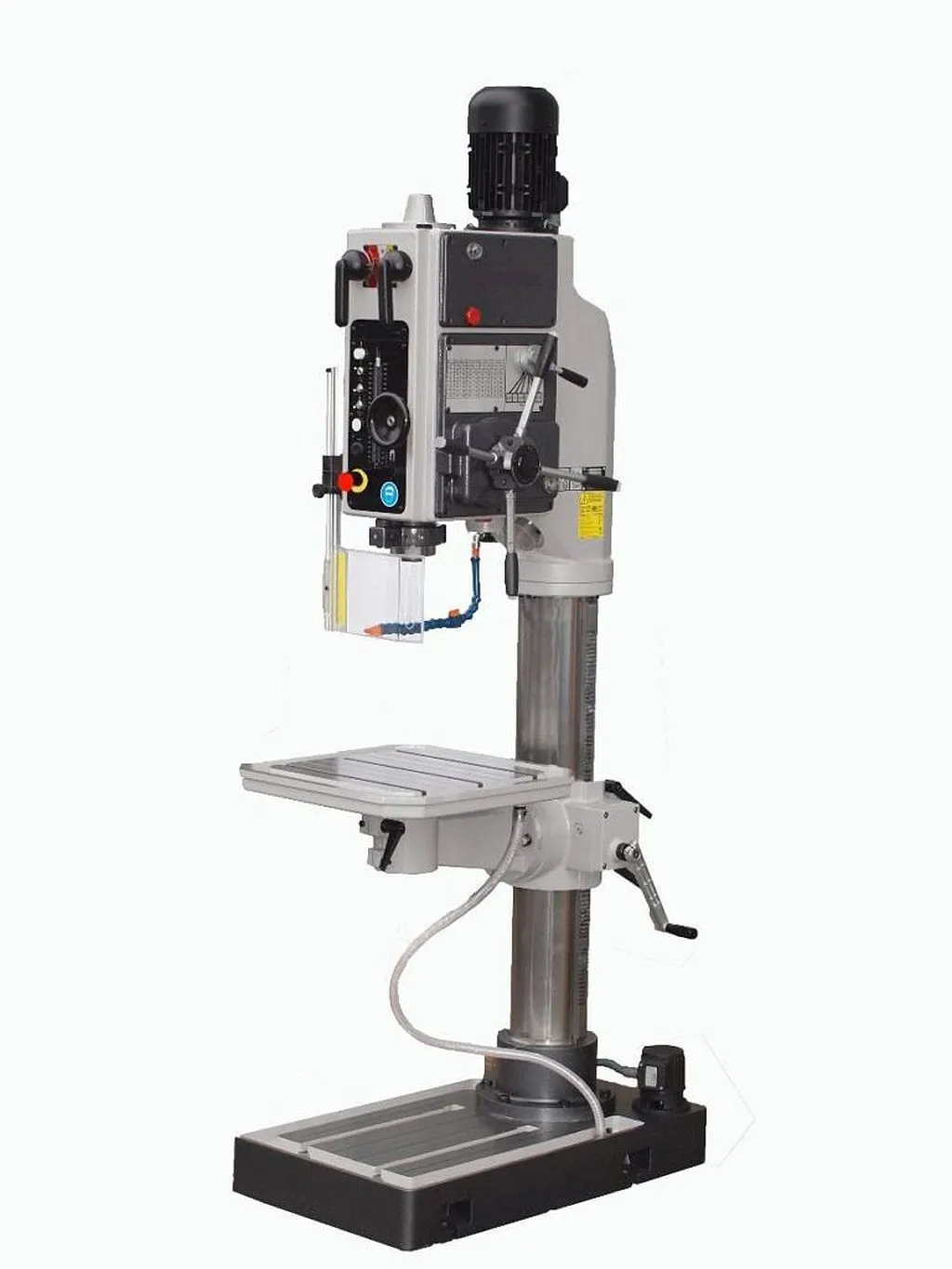

NEW 2025 CLAUSING B60
Overview
Clausing Iberdrill 33” Floor Drill Press Gear Head Drive, Adjustable Rotating Worktable, 76 – 1446 RPM by 12 speed gear box, 3.54” diameter quill, 5MT taper spindle, Electromagnetic clutch quill feed, 5.5 hp spindle motor, 2.36” drill capacity steel, 230/460 volt 3 Phase voltage
Specs
Machine Style.......... Floor Drill W/Adjustable Table
Drive Type.......... Gear Head Drive
Number of Speed Steps.......... 12
Spindle Speeds (RPM).......... 76 – 96 – 127 – 165 – 238
– 296 – 392 – 513 – 670 – 838 – 1107 – 1446
Column to Spindle Center (in).......... 16.5
Spindle Nose.......... 5MT
Spindle Travel (in).......... 10.24
Quill Feed.......... Electromagnetic Clutch
6 Feed Ranges (in/rev).......... 0.0039, 0.0079, 0.0118, 0.0157, 0.0197, 0.0236
Spindle to Work Surface Min/Max. (in).......... 3.15 / 25.98
Column Diameter (in).......... 8.66
Adjustable Table Surface (in).......... 23.6 x 27.6
Work Table T-Slots (in).......... 1/2
Base Size (in).......... 35.8 x 23.2
Drill Capacity with Manual Feed (in).......... 2.36
E-Stop Switch.......... Yes
Voltage.......... 230 or 460
Phase.......... Three
Motor Horsepower.......... 5.5
Machine Weight (lbs.).......... 1,808
Machine Dimensions (WxDxH in).......... 24 x 40 x 103.9
Shipping Weight (lbs.).......... 2,025
Shipping Dimensions ships laying down (LxWxD in).......... 106.3 x 28 x 48
