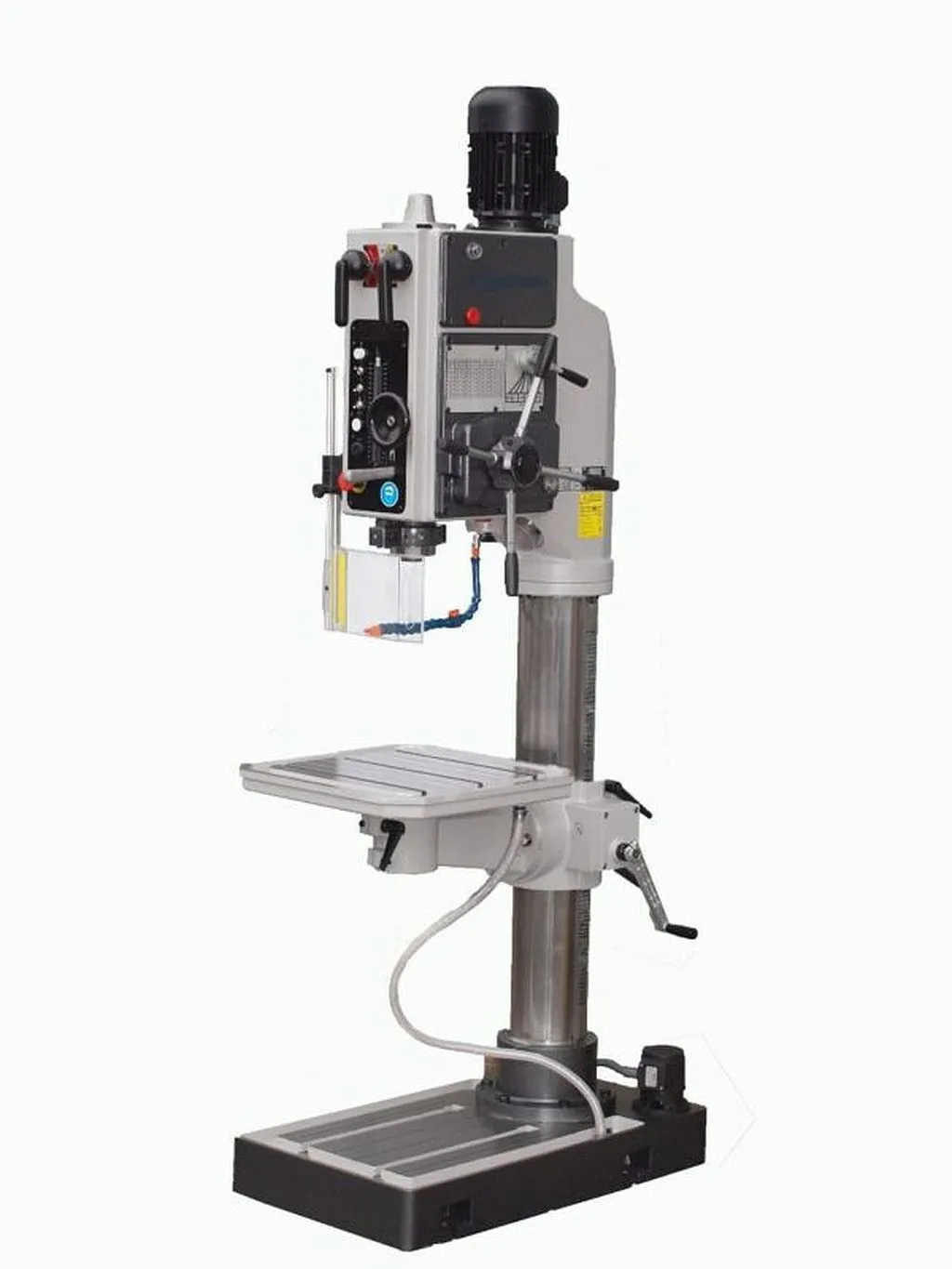

NEW 2025 CLAUSING IBARMIA A40

Machine Style.......... Floor Drill W/Adjustable Table
Drive Type.......... Gear Head Drive
Number of Speed Steps.......... 9
Spindle Speeds (RPM).......... 73 – 103 – 149 – 232 – 325 – 472 – 695 – 976 – 1415
Column to Spindle Center (in).......... 14.57
Spindle Nose.......... 4MT
Spindle Travel (in).......... 7.87
Quill Feed.......... Mechanical Clutch
3 Feed Ranges (in/rev).......... 0.0039, 0.0079, 0.0118
Spindle to Work Surface Min/Max. (in).......... 4.72 / 30.71
Column Diameter (in).......... 6.3
Adjustable Table Surface (in).......... 18.9 x 22.1
Work Table T-Slots (in).......... 1/2
Base Size (in).......... 31.5 x 18.5
Drill Capacity with Manual Feed (in).......... 1.38
E-Stop Switch.......... Yes
Voltage ..........230 or 460
Phase.......... Three
Motor Horsepower.......... 2
Machine Weight (lbs.).......... 1,080
Machine Dimensions (WxDxH in).......... 22 x 38 x 92.4
Shipping Weight (lbs.).......... 1,257
Shipping Dimensions ships laying down (LxWxD in).......... 98.5 x 24 x 48

Machine Features:
• Gear head drive with shift levers on the face of the drill
• Gear box lubrication by automatic pump
• Hardened and Ground high quality steel gears
• 2 Hp spindle motor
• Built in low voltage electrical equipment
• Depth scale and adjustable depth stop
• Mechanical clutch quill feed system
• Adjustable worktable
• Work light
• Manual spindle reversing switch
• “RS” Models are equipped with automatic spindle reversing system for tapping
• Thermomagnetic motor breaker switch
• Machined base with coolant tank
• Safety drill guard with microswitch
• Automatic tool ejector
• Emergency stop button
• CE mark
