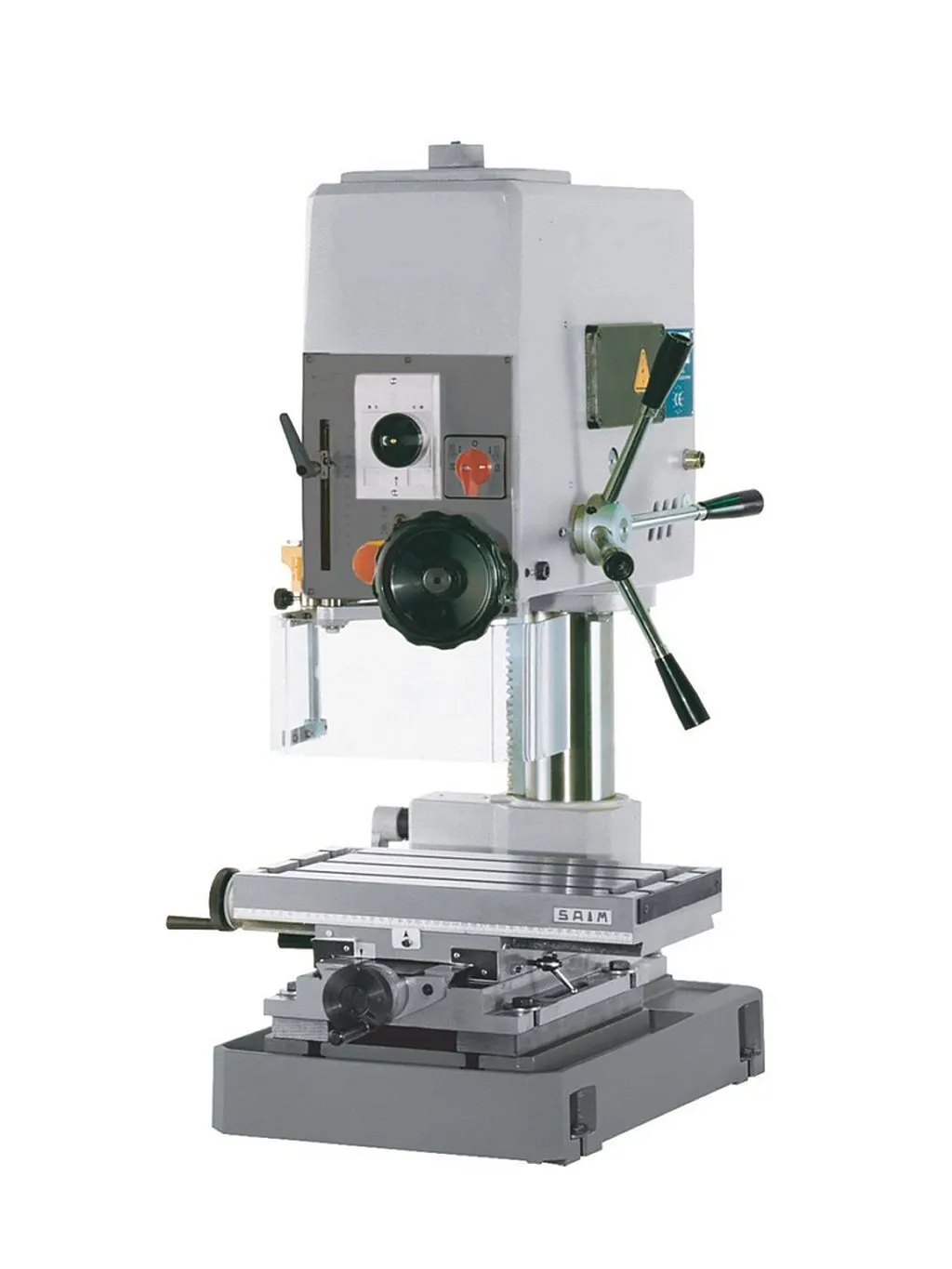

NEW 2025 CLAUSING IBARMIA KS25/EV
Overview
Description
Clausing Iberdrill 19.68” Bench Drill Press Variable Speed Belt Drive and Base, 295 – 4800 RPM electronic inverter, 2.44” diameter quill, 3MT taper spindle, manual quill feed, 1 ½ hp spindle motor, 1” drill capacity steel, 230/460 volt
Specifications
| Swing | 19.7" | 500.38 mm |
|---|---|---|
| Capacity (Mild Steel) | 1" | 25.4 mm |
| Capacity (Cast Iron) | 1.18" | 29.972 mm |
| Power | 1.5 hp | 1.1 kW |
| RPM | 4,800 RPM | 4,800 RPM |
| Dimensions | 20 x 32 x 47.6 | 20 x 32 x 47.6 |
| Weight | 298 | 298 |
Specifications
Machine Style.......... Bench Drill
Drive Type.......... Electronic Inverter Belt Drive
Number of Speed Steps.......... Infinitely
Spindle Speeds (RPM).......... 300 – 4800
Column to Spindle Center (in).......... 9.84
Spindle Nose.......... 3MT
Spindle Travel (in).......... 4.72
Quill Feed.......... Manual
Spindle to Work Surface Min/Max. (in).......... 4.33 / 19.7
Column Diameter (in).......... 3.94
Adjustable Table Surface (in).......... N/A
Work Table T-Slots (in).......... 1/2
Base Size (in).......... 22 x 15
Drill Capacity with Manual Feed (in).......... 1
E-Stop Switch.......... Yes
Voltage.......... 230 or 460
Phase.......... Three
Motor Horsepower.......... 1 1/2
Machine Weight (lbs.).......... 298
Machine Dimensions (WxDxH in).......... 20 x 32 x 47.6
Shipping Weight (lbs.).......... 353
Shipping Dimensions ships laying down (LxWxD in).......... 57 x 24 x 36
Machine Features:
• Belt Drive – electronic inverter
• Depth scale and adjustable depth stop
• Work light
• Manual spindle reversing switch
• “RS” Models are equipped with automatic spindle reversing system for tapping
• Thermomagnetic motor breaker switch
• Low voltage electric equipment
• Safety drill guard with microswitch
• Automatic tool ejector
• Emergency stop button
• CE mark
• Optional base cabinets available
