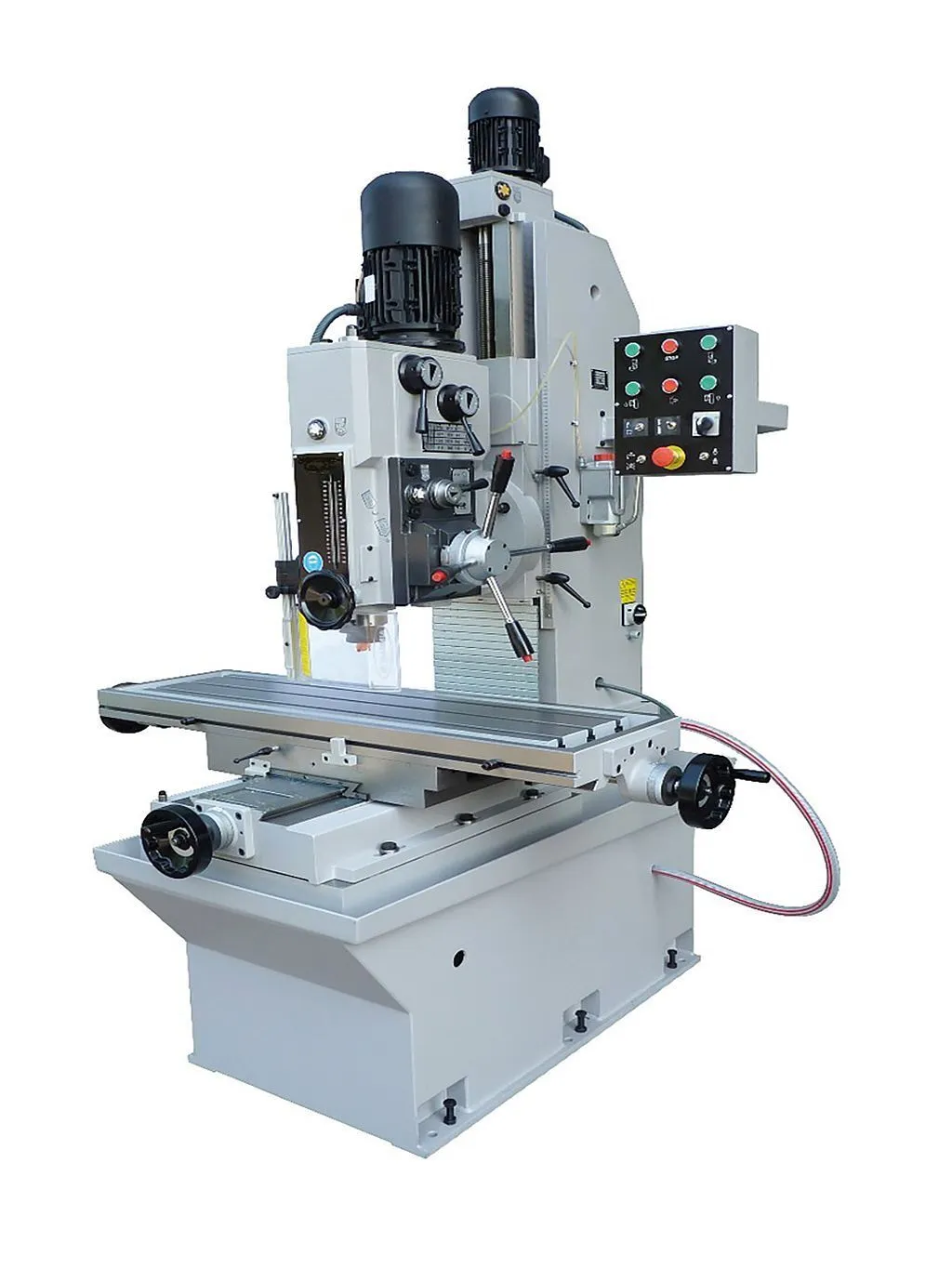

Discover precision with the new Clausing BF35 – 30.7” Drill Press by IBERDRILL. A heavy-duty single spindle, prismatic column floor drill featuring gear head drive, motorized column head elevation, and 16 spindle speeds up to 2,670 RPM.
| Swing | 23.23" | 590.04 mm |
| Capacity (Mild Steel) | 1.38" | 35.052 mm |
| Capacity (Cast Iron) | 1.57" | 39.878 mm |
| Power | 2 hp | 1.5 kW |
| RPM | 2,670 RPM | 2,670 RPM |
| Dimensions | 61.8 x 57.1 x 81.9 | 61.8 x 57.1 x 81.9 |
| Weight | 2756 lbs. | 2756 lbs. |
Machine Style.......... Prismatic Column Floor Drill W/Co-ordinate Cross Table
Drive Type.......... Gear Head Drive
Number of Speed Steps.......... 16
Spindle Speeds (RPM)
113 – 162 – 226 – 248 – 324 – 363– 417 – 496
597 – 726 – 834 – 912 – 1194 – 1335 – 1824 – 2670
Column to Spindle Center (in) 15.35
Spindle Nose............... 4MT
Spindle Travel (in)........ 7.87
Quill Feed.......... Electromagnetic Clutch
3 Feed Ranges (in/rev).......... 0.0039, 0.0079, 0.0094
Spindle to Work Surface Min/Max. (in).......... 0 / 23.23
Column Head Elevation.......... Motorized
Co-ordinate Table Surface (in).......... 48 x 14.17
Work Table T-Slots (in) 5/8
Base Size (in)............... 57.1 x 29.53
Drill Capacity with Manual Feed (in) 1.38
E-Stop Switch............... Yes
Voltage.......... 230 or 460
Phase............ Three
2 Speed Motor Horsepower.......... 2
Machine Weight (lbs.) ........2,756
Machine Dimensions (WxDxH in).......... 61.8 x 57.1 x 81.9
Shipping Weight (lbs.) ........3,197
Shipping Dimensions (LxWxD in).......... 66 x 66 x 99
