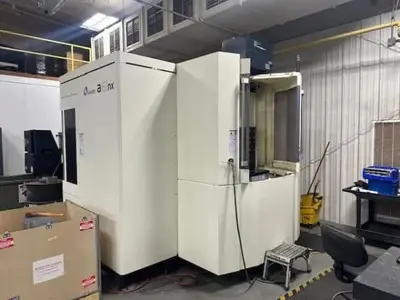

Makino A61NX – 2022
Overview
2022 MAKINO A61NX
Specs
PALLET SIZE – L 19.7″
PALLET SIZE – W 19.7″
NUMBER OF PALLETS 2
PALLET WEIGHT CAPACITY 1,200 lb
PALLET SURFACE TO SPINDLE CENTER 3.14″ ~ 31.4″
PALLET CENTER TO SPINDLE GAGE LINE 3.93″ ~ 35.4″
WORKPIECE DIMENSIONS 31.4″ X 39.3″
X – AXISTRAVEL 28.7″
Y – AXIS TRAVEL 25.6″
Z – AXIS TRAVEL 31.5″
B – AXIS TRAVEL .0001 N/C ROTARY
RAPID TRAVERSE RATE – X 2,362 in/min.
RAPID TRAVERSE RATE – Y 2362 ipm
RAPID TRAVERSE RATE – Z 2361 ipm
CUTTING FEED RATE 1,968 in/sec.
SPINDLE SPEED 14,000 RPM
SPINDLE TAPER BIG PLKUS 40 CT
MAIN MOTOR 49.6 hp
AUTOMATIC TOOL CHANGER 60
TOOL DIAMETER 3.76″ / 6.7″
TOOL LENGTH 20″
TOOL WEIGHT 26.4 lb
TOOL CHANGE TIME 0.9 sec.
MACHINE WEIGHT 26,900 lb
CONTROL CNC (FANUC 310I CNC COLOR CONTROL W/PRO 6)
WEIGHT 27000.00
Equipped With
FANUC 310I B WITH PRO 6 CNC CONTROL
4 MB DATA CENTER
FULL 4TH AXIS N/C ROTARY TABLE
DD MOTORTABLE INDEXING, DIRECT DRIVE
CHIP REMOVAL SYSTEM
PRO 6 CONTROL
HI SPEED SKIP
BTSOMA BROKEN TOOL SENSOR ATC
MARPOSS TOOL LENGTH MEASUREMENT LASER SYSTEM
RENISHA OMP 600 PART PROBE SYSTEM
GI CONTROL
BALL SCREW CORE COOLING
3 POINT LEVEL SYSTEM
OVERHEAD SHOWER COOLANT
AIR DRYER SYSTEM IDFA6E
SPINDLE TABLE CRASH AVOIDANCE
HELICAL INTERPOLATION
400 PAIRS TOOL OFFSETS
3GB PROGRAM STORAGE
54 PAIRS WORK COORDINATES
COOLANT THRU SPINDLE 300PSI
2476 CUTTING HOURS
CLIMATE CONTROLED MACHINING AREA
(1) SPARE PALLET AND 2 SIDED TOMBSTONE
