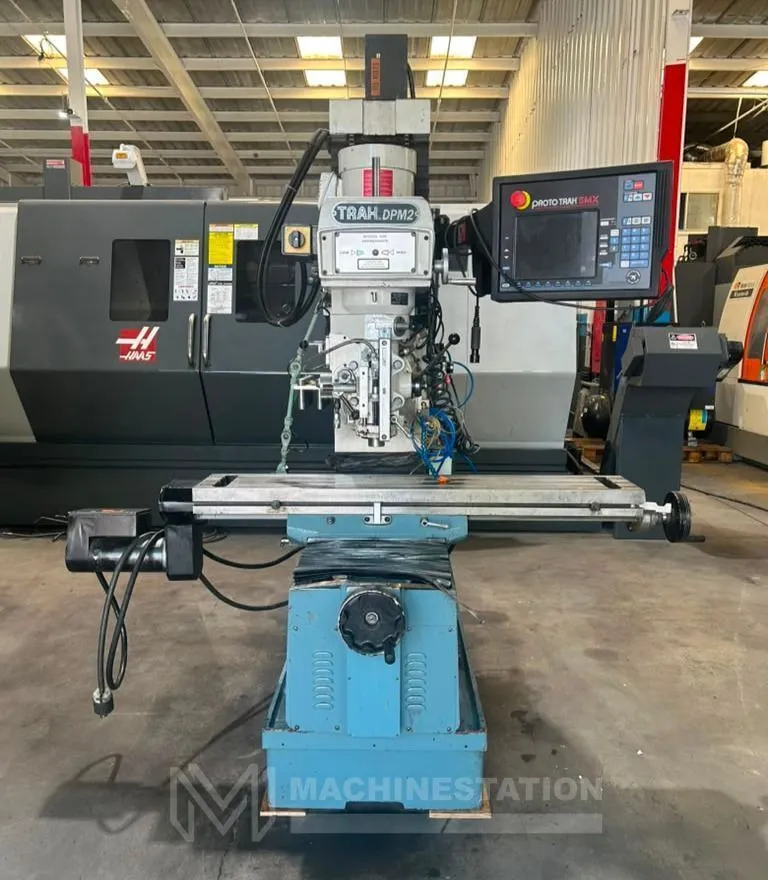

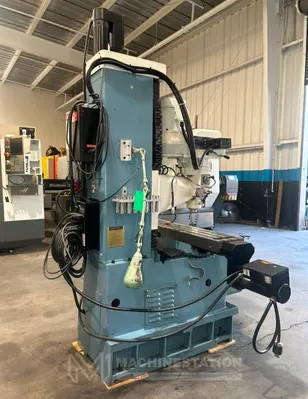

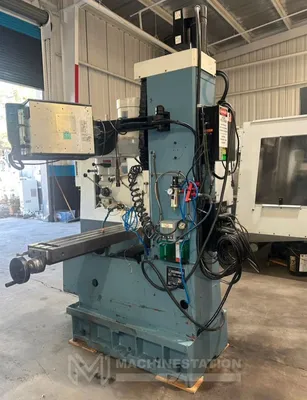

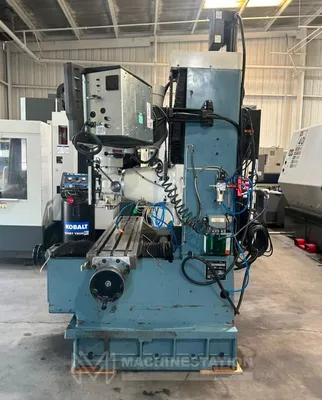

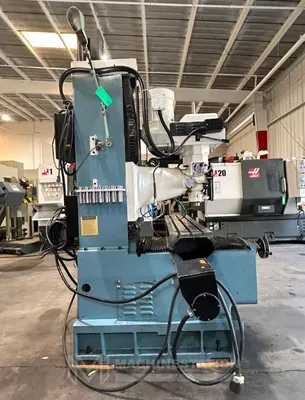

USED SOUTHWESTERN INDUSTRIES TRAK DPM SX2

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

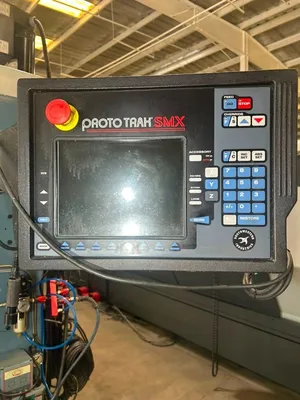

ProtoTRAK SMX 3-Axis CNC Control

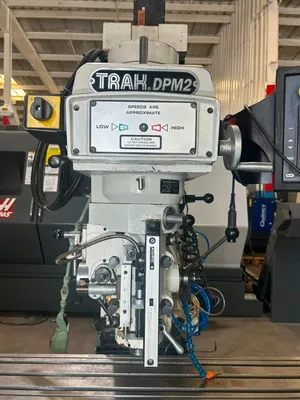

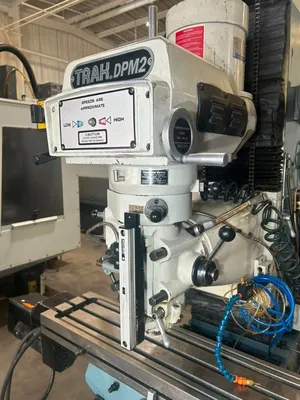

Two-Speed Variable-Speed Spindle Head
Manual Quill with Power Feed

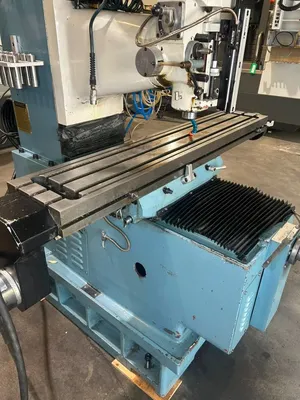

Table:
Table Size: 49.0 inch × 9.0 inch
Number of T-Slots: 3
T-Slot Width: 0.63 inch
T-Slot Spacing: 2.50 inch
Maximum Table Load: 1,320 lbs

Travels:
X-Axis Travel: 32.0 inch
Y-Axis Travel: 16.0 inch
Z-Axis Travel: 23.5 inch
Maximum Quill Travel: 5.0 inch

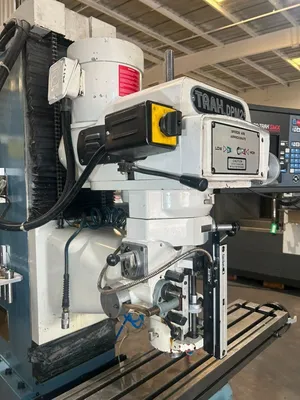

Spindle:
Spindle Taper: R8
Spindle Speed Range: 70 – 4,200 RPM
Spindle Motor: 3 HP
Quill Diameter: 3.375 inch
Spindle Center to Column Face: 18.0 inch
Maximum Quill Travel: 5.0 inch
Two-Speed Variable-Speed Head: Low / High

Feedrate:
Rapid Traverse, X-Axis: 150 IPM
Rapid Traverse, Y-Axis: 150 IPM
Rapid Traverse, Z-Axis: 150 IPM

Machining Capacity:
Maximum Drilling Capacity: 1.0 inch Diameter
Maximum Tapping Capacity: 5/8 inch
Maximum Table Load: 1,320 lbs

General:

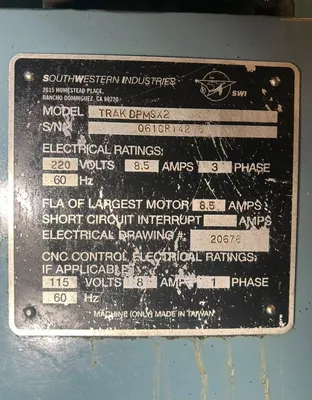

Electrical Requirement: 220 Volts / 8.5 Amps / 3-Phase / 60 Hz
CNC Control Electrical Requirement: 115 Volts / 8 Amps / 1-Phase / 60 Hz
Approximate Overall Dimensions: 104 inch W × 64 inch D × 98 inch H
Approximate Net Weight: 3,200 lbs
