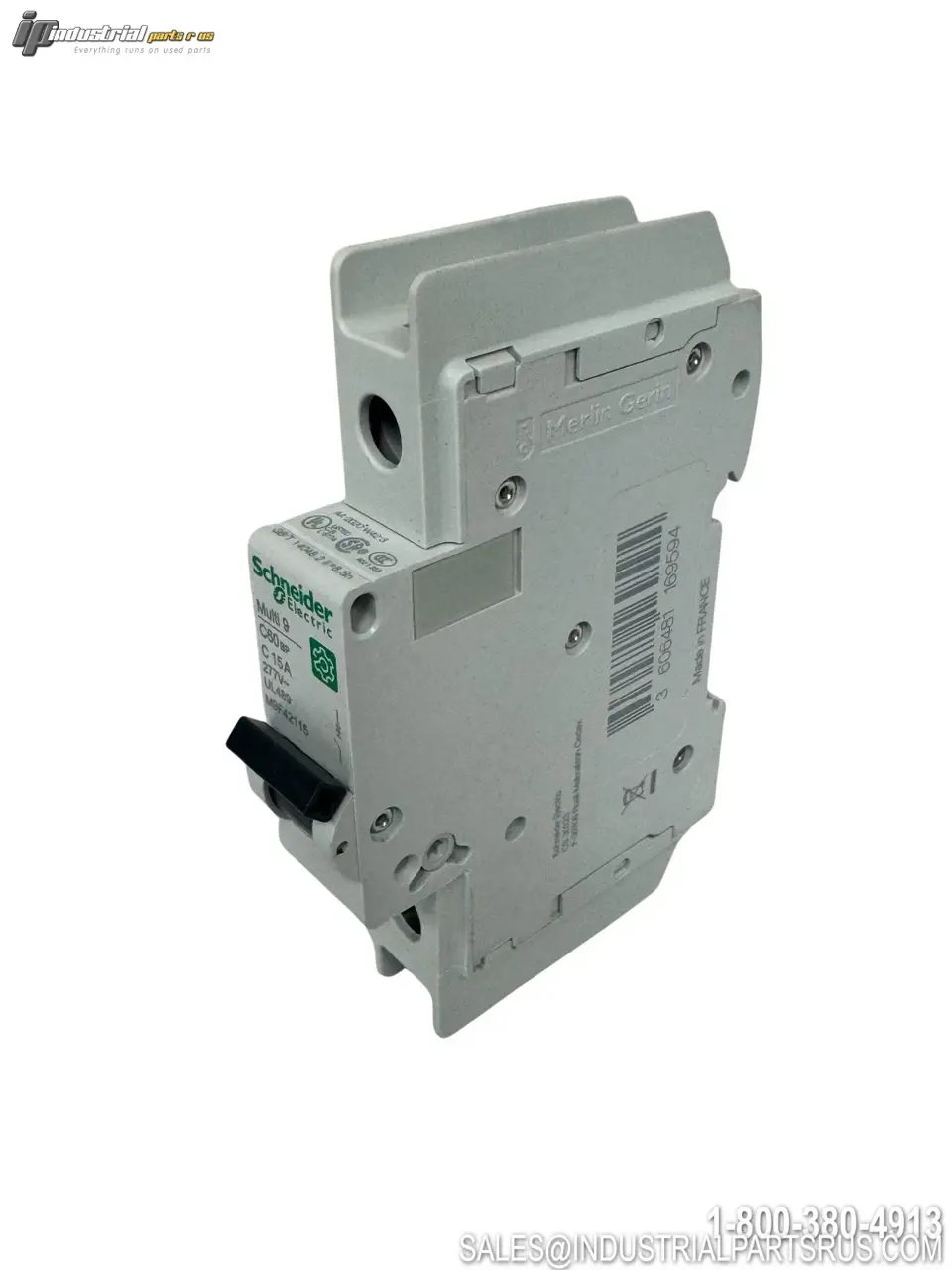

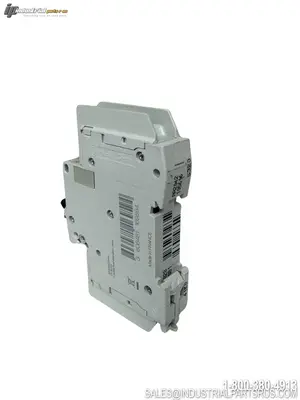

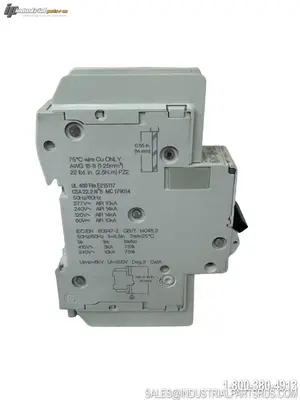

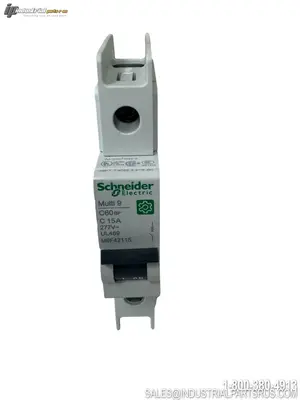

USED SCHNEIDER MULTI 9 C60BP

The Schneider Electric Multi 9 C60BP is a low-voltage, multi-standard miniature circuit breaker (MCB) designed for distribution and branch-circuit protection. It is available in 1-pole, 2-pole, and 3-pole configurations with various rated-current and trip-curve options. The C60BP family uses thermal-magnetic trip technology and is available with C, D, and Z tripping curves, depending on the specific catalog number. It is designed for OEM equipment, control panels, machinery, and electrical distribution applications and provides protection against short-circuit and overload currents. Certain configurations also provide protection against earth-leakage faults.

Technical Specifications

Specification Value BrandSchneider Electric Product FamilyMulti 9 Product NameMulti9 C60 Device Short NameC60BP Product TypeMiniature Circuit Breaker (MCB) Protection TechnologyThermal-Magnetic ApplicationDistribution, OEM Equipment, Control Panels, Industrial Machinery Number of Poles1P, 2P, or 3P — depending on catalog number Rated Current0.5 A to 63 A — depending on catalog number Trip CurvesC, D, or Z — depending on catalog number Mounting35 mm DIN Rail, Clip-On StandardsUL 489, CSA C22.2 No. 5, IEC/EN 60947-2 Rated Insulation Voltage (Ui)Up to 500 V AC on applicable configurations Impulse Withstand Voltage (Uimp)6 kV on applicable configurations Mechanical EnduranceUp to 20,000 cycles Electrical EnduranceUp to 10,000 cycles ManufacturerSchneider Electric

Note: The exact rated current, number of poles, trip curve, operating voltage, and breaking capacity must be verified from the complete Schneider Electric catalog number printed on the breaker. C60BP is a product family designation rather than a complete configuration-specific part number. Schneider lists C60BP versions with different ratings and configurations. {"fallbackMarkdown":"([Schneider Electric](https://www.se.com/us/en/product/M9F42115/miniature-circuit-breaker-mcb-multi9-c60bp-1p-15a-c-curve-14ka-ul489-10ka-iec-en-609472/?utm_source=chatgpt.com))","reference":{"matched_text":"","prefix":null,"start_idx":4428,"end_idx":4473,"safe_urls":["https://www.se.com/us/en/product/M9F42115/miniature-circuit-breaker-mcb-multi9-c60bp-1p-15a-c-curve-14ka-ul489-10ka-iec-en-609472/","https://www.se.com/us/en/product/M9F42115/miniature-circuit-breaker-mcb-multi9-c60bp-1p-15a-c-curve-14ka-ul489-10ka-iec-en-609472/?utm_source=chatgpt.com","https://www.se.com/us/en/product/M9F42303/miniature-circuit-breaker-mcb-multi9-c60bp-3p-3a-c-curve-10ka-ul489-10ka-iec-en-609472/","https://www.se.com/us/en/product/M9F42303/miniature-circuit-breaker-mcb-multi9-c60bp-3p-3a-c-curve-10ka-ul489-10ka-iec-en-609472/?utm_source=chatgpt.com","https://www.se.com/us/en/product/M9F43203/miniature-circuit-breaker-mcb-multi9-c60bp-2p-3a-d-curve-10ka-ul489-10ka-iec-en-609472/","https://www.se.com/us/en/product/M9F43203/miniature-circuit-breaker-mcb-multi9-c60bp-2p-3a-d-curve-10ka-ul489-10ka-iec-en-609472/?utm_source=chatgpt.com"],"refs":[],"alt":"([Schneider Electric](https://www.se.com/us/en/product/M9F42115/miniature-circuit-breaker-mcb-multi9-c60bp-1p-15a-c-curve-14ka-ul489-10ka-iec-en-609472/?utm_source=chatgpt.com))","prompt_text":null,"type":"grouped_webpages","status":"done","error":null,"fallback_items":null,"style":null,"items":[{"title":"M9F42115 - Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 15A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) | Schneider Electric USA","url":"https://www.se.com/us/en/product/M9F42115/miniature-circuit-breaker-mcb-multi9-c60bp-1p-15a-c-curve-14ka-ul489-10ka-iec-en-609472/?utm_source=chatgpt.com","attribution":"Schneider Electric","pub_date":null,"snippet":"","attribution_segments":null,"supporting_websites":[{"title":"M9F43203 - Miniature circuit breaker (MCB), Multi9 C60BP, 2P, 3A, D curve, 10kA (UL489), 10kA (IEC/EN 60947-2) | Schneider Electric USA","url":"https://www.se.com/us/en/product/M9F43203/miniature-circuit-breaker-mcb-multi9-c60bp-2p-3a-d-curve-10ka-ul489-10ka-iec-en-609472/?utm_source=chatgpt.com","pub_date":null,"snippet":"","attribution":"Schneider Electric"},{"title":"M9F42303 - Miniature circuit breaker (MCB), Multi9 C60BP, 3P, 3A, C curve, 10kA (UL489), 10kA (IEC/EN 60947-2) | Schneider Electric USA","url":"https://www.se.com/us/en/product/M9F42303/miniature-circuit-breaker-mcb-multi9-c60bp-3p-3a-c-curve-10ka-ul489-10ka-iec-en-609472/?utm_source=chatgpt.com","pub_date":null,"snippet":"","attribution":"Schneider Electric"}],"refs":[{"turn_index":0,"ref_type":"search","ref_index":0},{"turn_index":0,"ref_type":"search","ref_index":2},{"turn_index":0,"ref_type":"search","ref_index":5}],"hue":null,"attributions":null}]},"showLoginRequiredCard":false}

We warranty all items for 30 days from the date of purchase.

:::{"fallbackMarkdown":"","reference":{"matched_text":" ","prefix":null,"start_idx":4550,"end_idx":4550,"safe_urls":[],"refs":[],"alt":"","prompt_text":null,"type":"sources_footnote","sources":[{"title":"M9F42115 - Miniature circuit breaker (MCB), Multi9 C60BP, 1P, 15A, C curve, 14kA (UL489), 10kA (IEC/EN 60947-2) | Schneider Electric USA","url":"https://www.se.com/us/en/product/M9F42115/miniature-circuit-breaker-mcb-multi9-c60bp-1p-15a-c-curve-14ka-ul489-10ka-iec-en-609472/?utm_source=chatgpt.com","attribution":"Schneider Electric"}],"has_images":false},"showLoginRequiredCard":false}
Specification
Value
Brand
Schneider Electric
Model / Part Number
Multi 9 C60BP
Product Range
Multi 9
Product Name
Multi 9 C60
Device Short Name
C60BP
Product Type
Miniature Circuit Breaker (MCB)
Device Application
Distribution / Branch Circuit Protection
Available Poles
1P, 2P, 3P
Trip Unit Technology
Thermal-Magnetic
Available Tripping Curves
C, D
Network Type
AC
Ue Operational Voltage
240VAC
Ui Rated Insulation Voltage
500VAC
Uimp Rated Impulse Withstand Voltage
6 kV
UL 489 Rated Voltage
277V (1P), 480Y/277V (2P, 3P)
Breaking Capacity (Icu) at 415VAC
10 kA (IEC/EN 60947-2)
Breaking Capacity (Icu) at 240VAC
20 kA
AIR at 240VAC (UL 489)
14 kA
AIR at 480Y/277VAC (UL 489)
10 kA
Mounting Type
DIN Rail Clip-On
Terminal Type
Tunnel Terminal (Top or Bottom)
Wire Range (Rigid)
1–25 mm² (AWG 18–AWG 8)
Wire Range (Flexible with Ferrule)
1–16 mm² (AWG 18–AWG 8)
Dimensions 1P (W x H x D)
18 mm x 103 mm x 72 mm
Dimensions 2P (W x H x D)
36 mm x 103 mm x 72 mm
Dimensions 3P (W x H x D)
54 mm x 103 mm x 72 mm
DIN Rail Width per Pole
2 pitches of 9 mm per pole
IP Rating (Terminals)
IP20 (IEC/EN 60529)
Pollution Degree
3
Color
Light Grey (RAL 7035)
Operating Temperature
-30°C to +70°C
Electrical Endurance
10,000 cycles
Mechanical Endurance
20,000 cycles
Standards Compliance
UL 489, EN/IEC 60947-2, EN/IEC 60898-1, GB 14048.2
Application
OEM, Control Panel Builders, Distribution
Protection Functions
Short Circuit, Overload, Earth Leakage
We warranty all items for 30 days from date of purchase.
