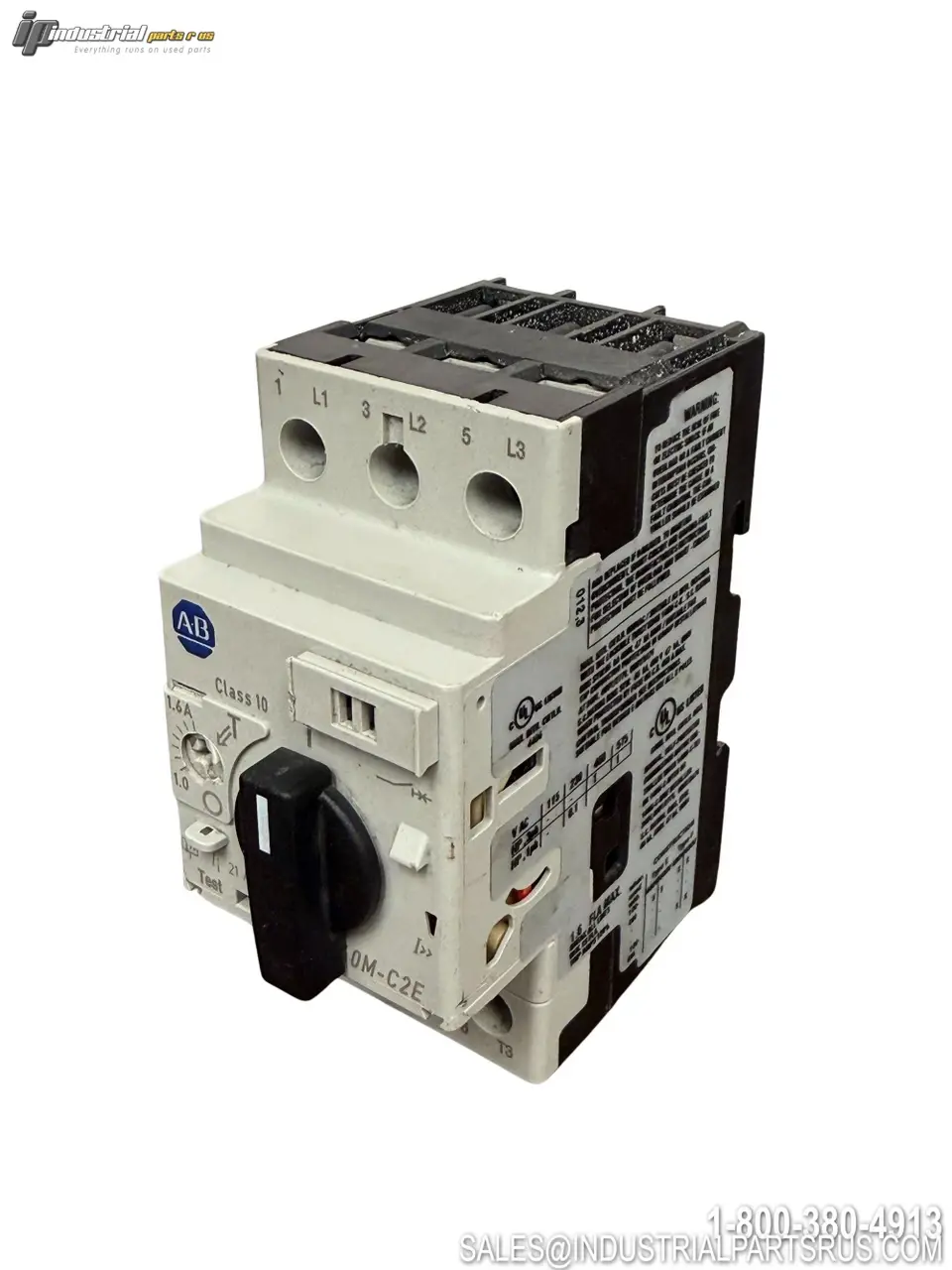

USED ALLEN-BRADLEY 140M-C2E-B16

The Allen-Bradley 140M-C2E-B16 is a 3-pole, C-frame motor protection circuit breaker from the Bulletin 140M series, designed to provide disconnecting means, manual switching, overload thermal protection, and branch-circuit short-circuit magnetic protection for individual motor branch circuits. It features an adjustable thermal trip range of 1.0–1.6A and a fixed magnetic trip set at 13× the rated current (Ie), with a Class 10 trip curve. When combined with a compatible 100-C or 100-K series contactor, it is listed as a Type F combination motor controller for complete short-circuit protection. Suitable for use with AC motors, pumps, conveyors, compressors, HVAC equipment, and motor control centers.
Specification
Value
Brand
Allen-Bradley
Catalog Number
140M-C2E-B16
Series
C
Product Type
Motor Protection Circuit Breaker (MPCB)
Bulletin
140M
Number of Poles
3
Rated Current
1.6 A
Adjustable Current Range
1.0–1.6 A
Trip Class
Class 10
Magnetic Trip
21 A
Frequency
50/60 Hz
Rated Operational Voltage (Ue)
Up to 690 VAC
Impulse Withstand Voltage (Uimp)
6 kV
IEC Breaking Capacity (Icu/Ics)
100/100 kA @ 400V; 8/8 kA @ 690V
Maximum Backup Fuse
16 A @ 690V (gL/gG)
UL Maximum Voltage
600 VAC
Operation
Rotary Handle
Mounting
DIN Rail / Panel Application
Standards
EN 60947-1, EN 60947-2, EN 60947-4-1; IEC 60947-1, IEC 60947-2, IEC 60947-4-1
Country of Manufacture
Switzerland
Manufacturer
Rockwell Automation / Allen-Bradley
Note:
Specifications above are based on the markings present on the unit. Please review all photos and nameplate information to confirm compatibility with your application.
We warranty all items for 30 days from date of purchase.
