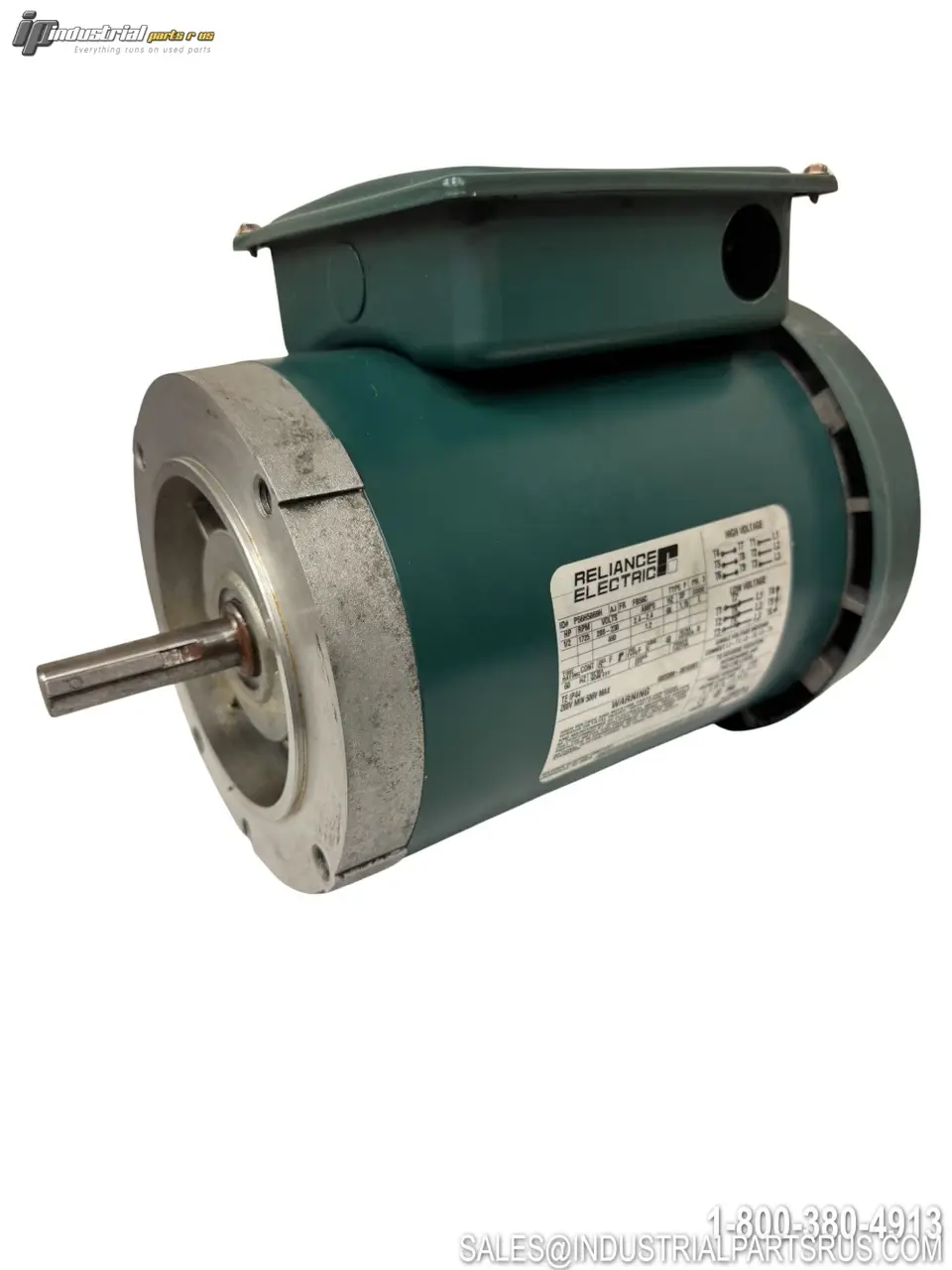

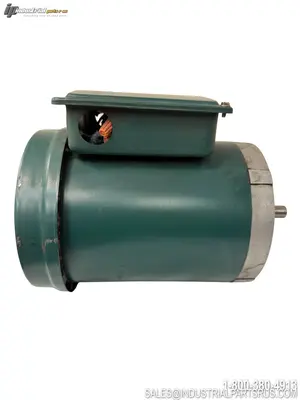

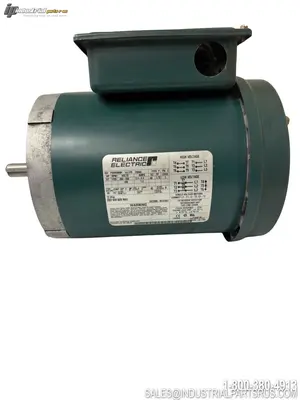

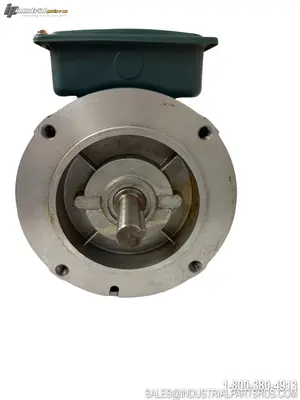

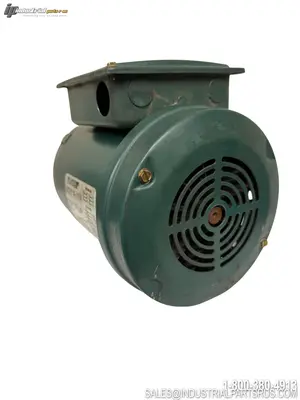

USED RELIANCE ELECTRIC P56H5069H

The Reliance Electric P56H5069H is a Duty Master series three-phase AC induction motor rated at 1/2 horsepower and 1725 RPM. It features a totally enclosed fan-cooled (TEFC) EC56C C-face frame design, making it suitable for general industrial applications including pumps, conveyors, fans, and gear reducers. The motor accepts a dual voltage input of 208-230V or 460-480V at 60 Hz and draws 2.2 amps at low voltage or 1.1–1.2 amps at high voltage. Rated full-load torque is 1.52 lb·ft with a starting torque of 3.04 lb·ft. The motor carries an IP44 protection rating, guarding against solid objects greater than 1mm and water splash from any direction.
Specification
Value
Brand
Reliance Electric
Model / Part Number
P56H5069H
Product Series
Duty Master
Motor Type
AC Induction Motor
Horsepower
1/2 HP
Base Speed (RPM)
1725 RPM
Synchronous Speed
1800 RPM
Number of Poles
4
Voltage
208-230V / 460-480V
Full Load Amps
2.2A (208-230V) / 1.1–1.2A (460-480V)
Phase
3-Phase
Frequency
60 Hz
Frame Size
EC56C
NEMA Frame Suffix
C (C-Face)
Enclosure Type
TEFC (Totally Enclosed Fan Cooled)
Mounting Type
C-Face Flange
Shaft Diameter
5/8 in
Shaft Type
Keyed
Service Factor
1.15
Insulation Class
F
NEMA Design
B
Current Type
AC
Reversible
Yes
Type Code
Type P
We warranty all items for 30 days from date of purchase.
