USED ALLEN-BRADLEY 140-MN-0250

The Allen-Bradley 140-MN-0250 is a 3-pole manual motor starter and motor protection device designed for manual motor control and overload/short-circuit protection. This unit features an adjustable full-load current range of 1.6–2.5A, thermal and magnetic protection, and front-mounted START and STOP/RESET controls.
This unit also includes an Allen-Bradley 140-A11 Series C auxiliary contact, providing one normally open (NO) and one normally closed (NC) auxiliary contact.
Specification
Value
Brand
Allen-Bradley
Catalog Number
140-MN-0250
Series
C
Product Type
Manual Motor Starter / Motor Protector
Number of Poles
3
Full Load Current Adjustment
1.6–2.5 A
Tripping Current
120% FLA
Protection Type
Thermal / Magnetic
AC-3 Rating
28 A
General Use Rating
2.5 A, 600 VAC, 3-Phase
3-Phase Motor Rating @ 230/240V
0.5 HP
3-Phase Motor Rating @ 460/480V
1 HP
3-Phase Motor Rating @ 575V
1.5 HP
1-Phase Motor Rating @ 230/240V
0.16 HP
Short-Circuit Rating
100 kA @ 400V; 100 kA @ 500V; 4.5 kA @ 690V
Wire Range
No. 16–10 AWG
Recommended Wire
75°C Copper Wire
Terminal Torque
20–26 lb-in
Controls
START / STOP-RESET / TEST
Auxiliary Contact
Allen-Bradley 140-A11 Series C
Auxiliary Contact Configuration
1 NO + 1 NC
Auxiliary Contact Terminals
13-14 NO / 21-22 NC
Auxiliary Contact Rating
A600 / Q600
Standards
IEC 947-2, IEC 947-4, IEC 947-5
Country of Manufacture
Switzerland
Included:

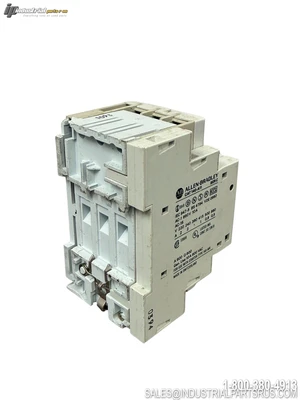

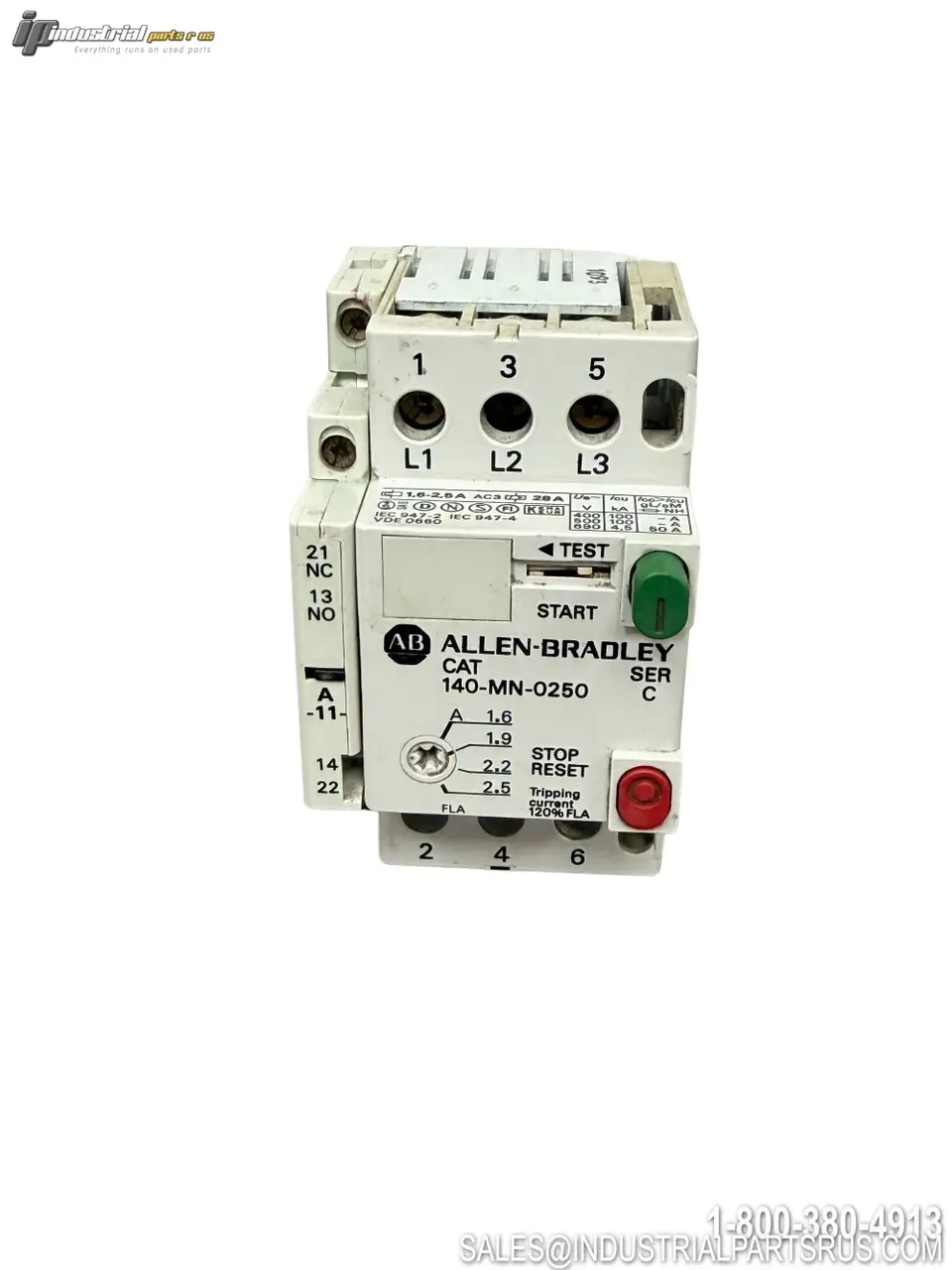

Allen-Bradley 140-MN-0250 Series C manual motor starter with 140-A11 Series C auxiliary contact as pictured.
We warranty all items for 30 days from date of purchase.
