USED GENERAL ELECTRIC CR72AMH

The General Electric CR72AMH is an IEC manual motor starter / motor protector designed for manual motor control and protection applications. This 3-pole unit features an adjustable thermal-magnetic current range of 1.6–2.5A and is rated for operation on systems up to 600 VAC.
This unit includes a
GE CR72AXA11 auxiliary contact block
with 1 normally open (N.O.) and 1 normally closed (N.C.) auxiliary contact. The starter features separate START and STOP controls and an adjustable current setting for matching the connected motor load.
Specification
Value
Brand
General Electric (GE)
Model / Catalog Number
CR72AMH
Product Type
Manual Motor Starter / Motor Protector
Product Series
CR72
Number of Poles
3-Pole
Adjustable Current Range
1.6–2.5 A
Protection Type
Thermal-Magnetic
Trip Class
Class 10
Trip Rating
120% of Dial Setting
Maximum Voltage
600 VAC
Frequency
50/60 Hz
Motor Rating – 200V, 3-Phase
1/2 HP
Motor Rating – 230V, 3-Phase
1/2 HP
Motor Rating – 460V, 3-Phase
1 HP
Motor Rating – 575V, 3-Phase
1-1/2 HP
Motor Rating – 230V, 1-Phase
1/6 HP
Group Fusing Rating
5 kA – 600 VAC
Maximum Fuse / Circuit Breaker
100 A
Wire Range
14–10 AWG
Wire Type
75°C Copper Wire
Terminal Torque
2.3 Nm / 20 lb-in
Controls
Manual START / STOP
Standards
IEC 947-4 / EN 60947-4
Country of Manufacture
Germany
Manufacturer
General Electric (GE)
Catalog Number
CR72AXA11
Product Type
Auxiliary Contact Block
Contact Configuration
1 N.O. / 1 N.C.
Terminal Identification
13-14 N.O. / 21-22 N.C.
Maximum Voltage / Current
600 VAC Max. / 5 A
Pilot Duty Rating
B300 / R300; B600 (Same Polarity)
Thermal Current (Ith)
6 A @ 50°C
Compatibility
For Use With GE CR72A Series
Included:

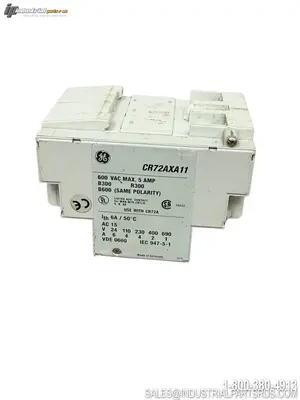

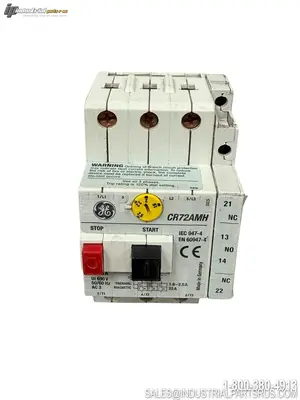

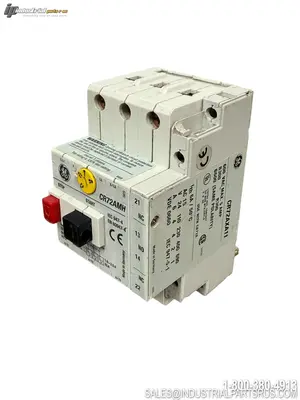

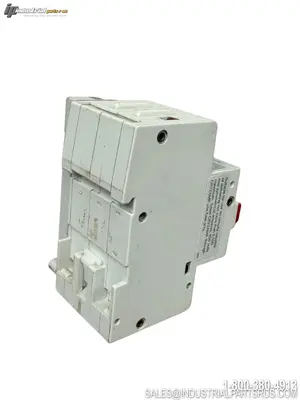

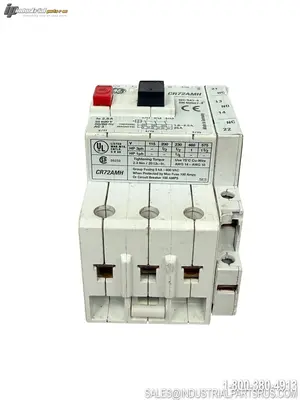

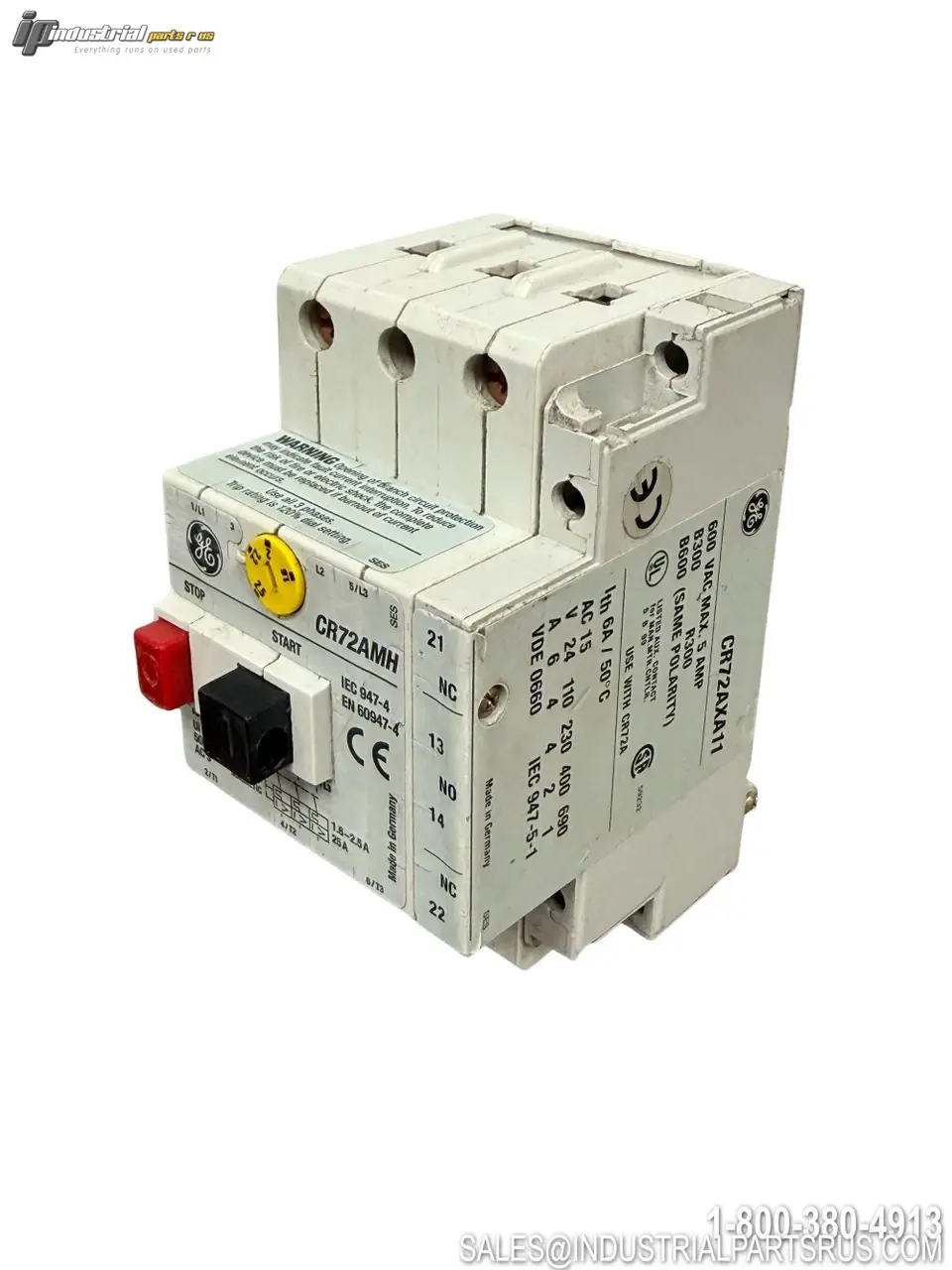

GE CR72AMH manual motor starter with GE CR72AXA11 auxiliary contact block as pictured.
Please review all photos for the exact configuration, markings, and cosmetic condition of the unit.
We warranty all items for 30 days from date of purchase.
