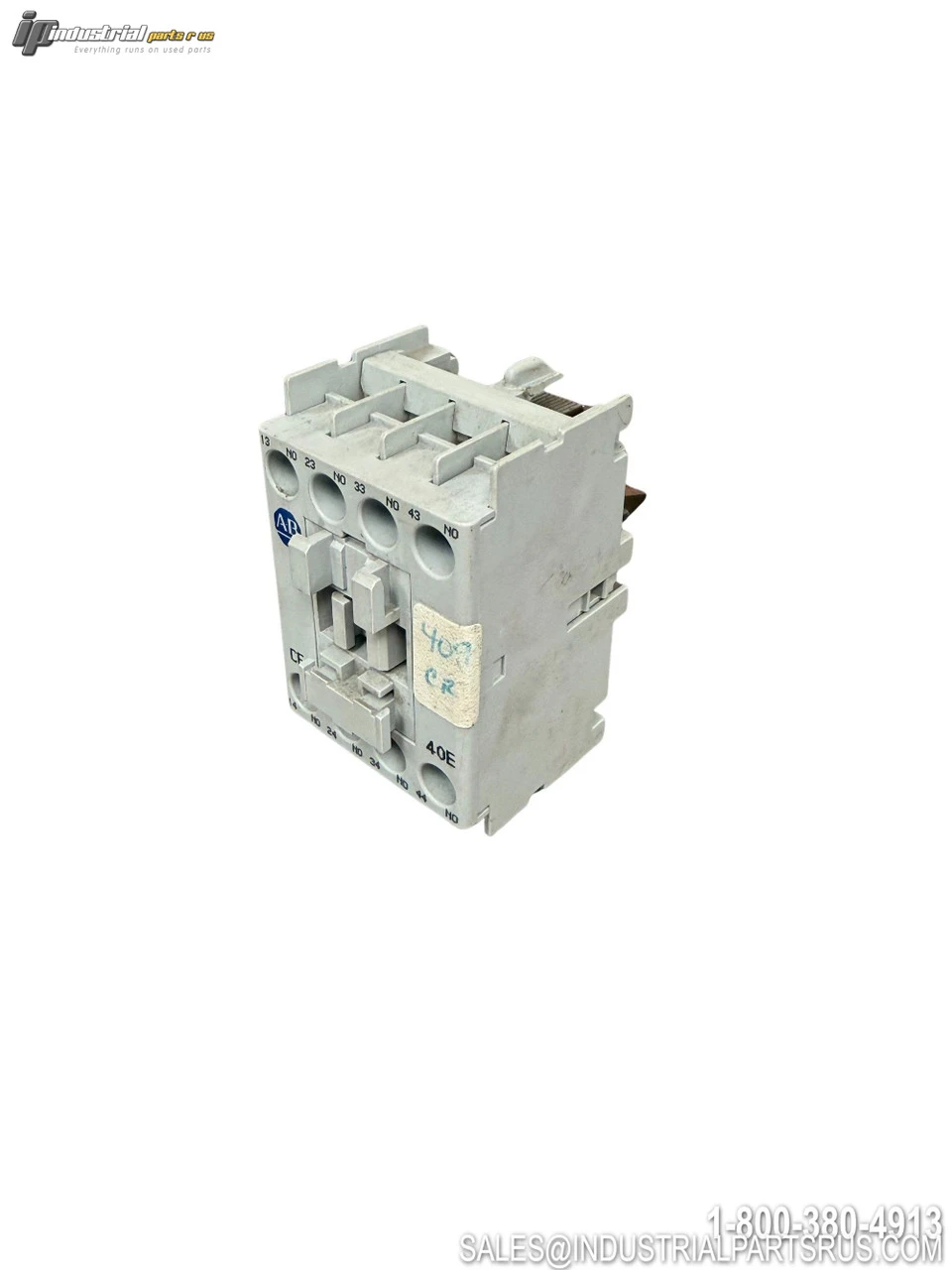

USED ALLEN-BRADLEY 700-CF400D*

The Allen-Bradley 700-CF400D* is a Bulletin 700-CF IEC industrial control relay designed for industrial control, switching, interlocking, and auxiliary control applications. This Series A unit features four normally open (4 N.O.) contacts with terminals 13-14, 23-24, 33-34, and 43-44.
The complete catalog number includes additional coil information represented by the asterisk (*). The specific coil/control voltage is not clearly identified in the provided markings and should be verified from the coil markings before installation.
Specification
Value
Brand
Allen-Bradley
Catalog Number
700-CF400D*
Series
A
Product Type
IEC Industrial Control Relay
Bulletin
700-CF
Contact Configuration
4 Normally Open (4 N.O.)
Number of Contacts
4
Contact Terminals
13-14, 23-24, 33-34, 43-44
Coil / Control Voltage
Not Identified - Verify Coil Markings
AC-1 Rating
690V / 25A
AC-15 Rating @ 230V
10A
AC-15 Rating @ 240V
10A
AC-15 Rating @ 400V
5A
AC-15 Rating @ 415V
5A
AC-15 Rating @ 500V
2.5A
AC-15 Rating @ 690V
1A
Maximum UL Voltage
600 VAC
General Purpose Rating
25A, 3-Phase / Single-Phase
Pilot Duty
A600 / P600
Rated Impulse Withstand Voltage (Uimp)
8 kV
Connection Type
Screw Terminals
Standard
IEC / EN 60947
Country of Manufacture
Switzerland
Manufacturer
Allen-Bradley
Important:
The catalog number on this unit is marked 700-CF400D*. The asterisk represents additional catalog/coil information. The specific coil/control voltage is not clearly identified in the provided photos and should be verified before installation.
We warranty all items for 30 days from date of purchase.
