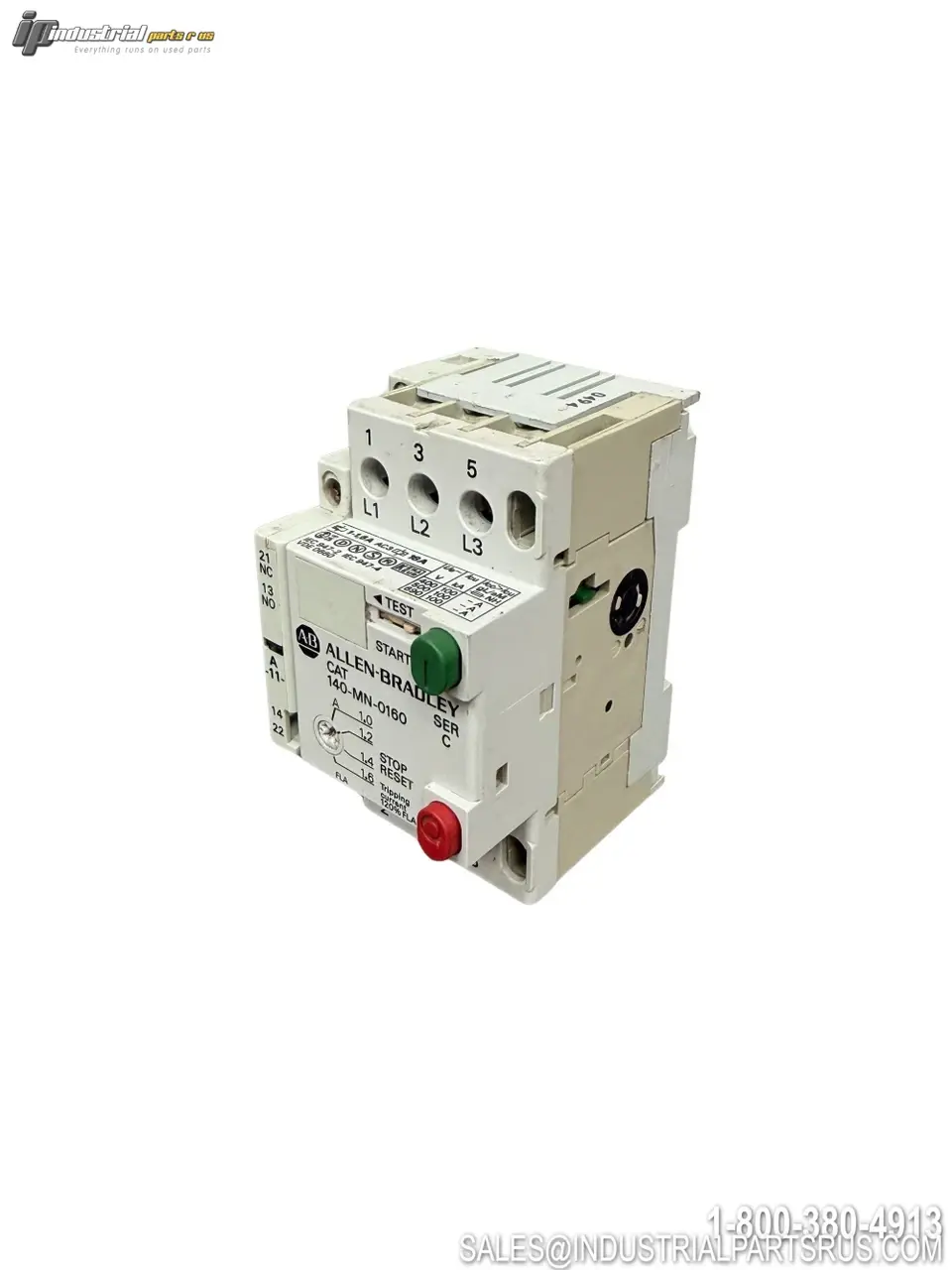

USED ALLEN-BRADLEY 140-MN-0160

The Allen-Bradley 140-MN-0160 is a manual motor starter and motor protector designed for industrial motor control and protection applications. This 3-pole unit features an adjustable current range of 1.0–1.6A with thermal overload and magnetic short-circuit protection. The unit includes an Allen-Bradley 140-A11 auxiliary contact block with one normally open (N.O.) and one normally closed (N.C.) contact.
Specification
Value
Brand
Allen-Bradley
Catalog Number
140-MN-0160
Series
C
Product Type
Manual Motor Starter / Motor Protector
Number of Poles
3
Current Adjustment Range
1.0–1.6 A
Magnetic Trip Rating
18 A
Maximum Voltage
600 VAC
General Use Rating
2.5 A @ 600 VAC, 3-Phase
Tripping Current
120% FLA
HP Rating – 3-Phase
0.5 HP @ 200V / 0.5 HP @ 240V / 1 HP @ 460V / 1.5 HP @ 575V
HP Rating – 1-Phase
0.1 HP @ 115V / 0.16 HP @ 240V
Auxiliary Contact Block
Allen-Bradley 140-A11
Auxiliary Contacts
1 N.O. + 1 N.C.
Auxiliary Contact Rating
B600 / R300
Wire Range
No. 16–10 AWG
Terminal Torque
20–26 lb-in
Conductor
75°C Copper Wire
Controls
Start / Stop-Reset / Test
Standards
IEC 947-2 / IEC 947-4 / VDE 0660
Country of Manufacture
Switzerland
We warranty all items for 30 days from date of purchase.
