USED BALLUFF BNI006A

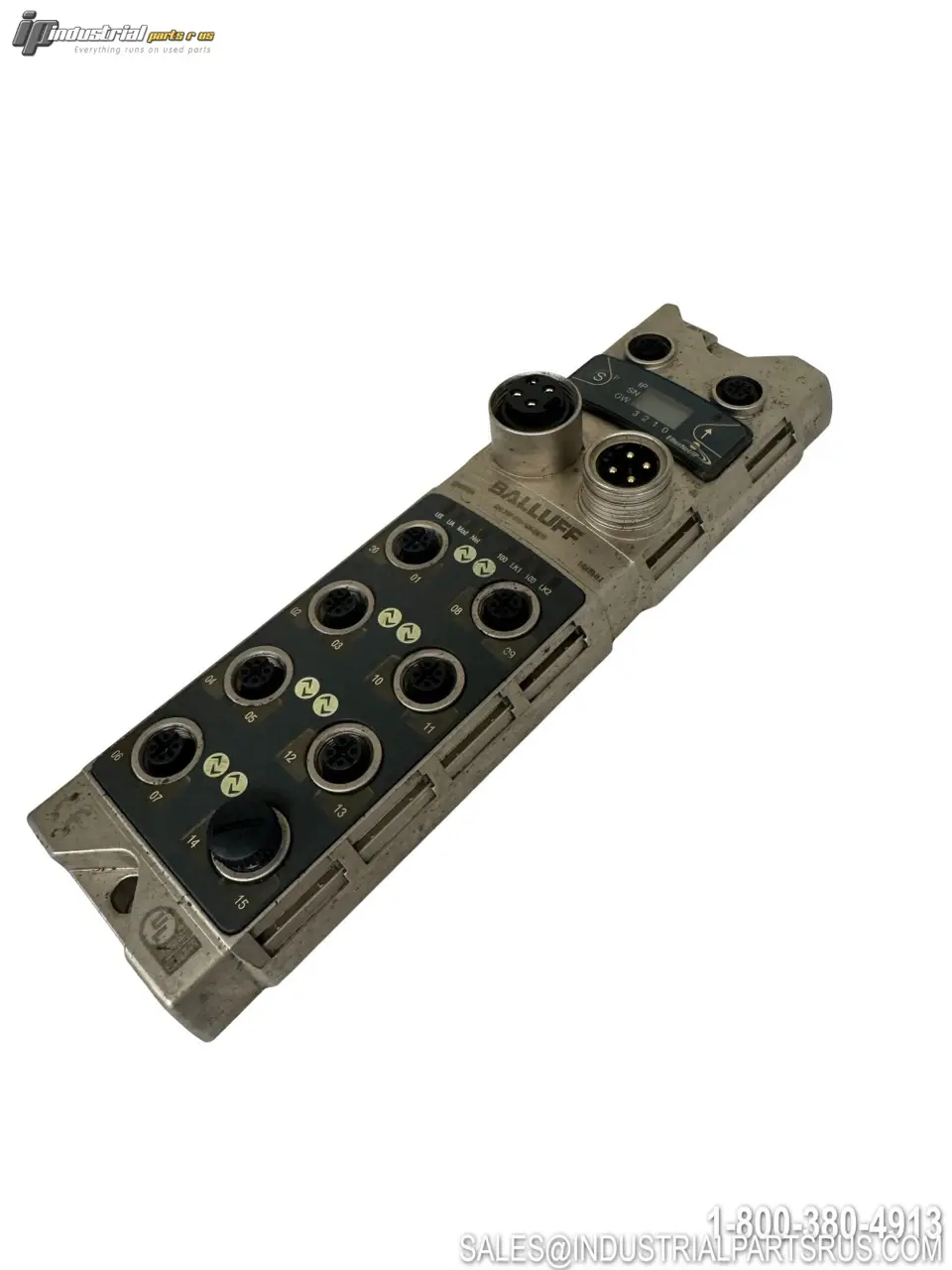

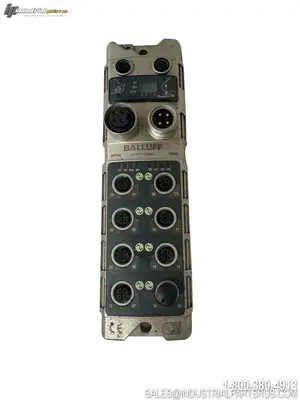

The
Balluff BNI006A
(catalog number
BNI EIP-508-105-Z015
) is an EtherNet/IP IO-Link Master network block designed for decentralized I/O and IO-Link device integration in industrial automation systems. It features eight Type A IO-Link ports, 16 PNP digital inputs, and 16 PNP digital outputs, providing a versatile distributed I/O solution for modern factory networks.
The module communicates via EtherNet/IP and provides additional IIoT connectivity through REST API and MQTT interfaces. Its rugged, nickel-plated die-cast zinc housing is rated
IP67
for protection in demanding industrial environments.
Specification
Value
Brand
Balluff
Model / Part Number
BNI006A
Catalog Number
BNI EIP-508-105-Z015
Product Type
IO-Link Master / EtherNet/IP Network Block
Series
BNI Series
Fieldbus Interface
EtherNet/IP
IIoT Interfaces
REST API, MQTT
IO-Link Ports
8
IO-Link Port Class
Type A
IO-Link Version
1.1.3
Digital Inputs
16 × PNP, Type 3
Digital Outputs
16 × PNP
Configurable Inputs / Outputs
Yes
Maximum Output Current
2 A per port
Current Sum, US (Sensor Supply)
9.0 A
Current Sum, UA (Actuator Supply)
9.0 A
Operating Voltage
18–30.2 VDC (24 VDC nominal)
COM 1 Connection
M12 × 1 female, 4-pin, D-coded
COM 2 Connection
M12 × 1 female, 4-pin, D-coded
Supply Voltage IN
7/8-inch male, 4-pin
Supply Voltage OUT
7/8-inch female, 4-pin
I/O Connections
8 × M12 × 1 female, 5-pin, A-coded
Display
Yes, multi-line LCD
Display Style
Two-row
Housing Material
Nickel-plated die-cast zinc
Gasket Material
FKM 75
Housing Shield
Yes
Surface Protection
Cu 15 µm / Ni 15 µm
Ingress Protection
IP67
Dimensions (H × W × L)
68 × 37.9 × 224 mm
Mounting
2-hole screw mount
Mounting Ground Strap
M4
Ambient Temperature
−5 to 70 °C
MTTF at 40 °C
49 years
Approvals / Conformity
CE, UKCA, cULus, ODVA, WEEE, RoHS
Supported Web Browsers
Google Chrome, Mozilla Firefox
eCl@ss 9.1
27-24-26-04
ETIM 6.0
EC001599
Warranty:
All items are covered by a 30-day warranty from the date of purchase.
