USED 1994 STANDARD AB-325-16

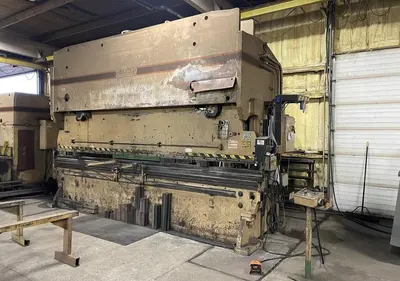

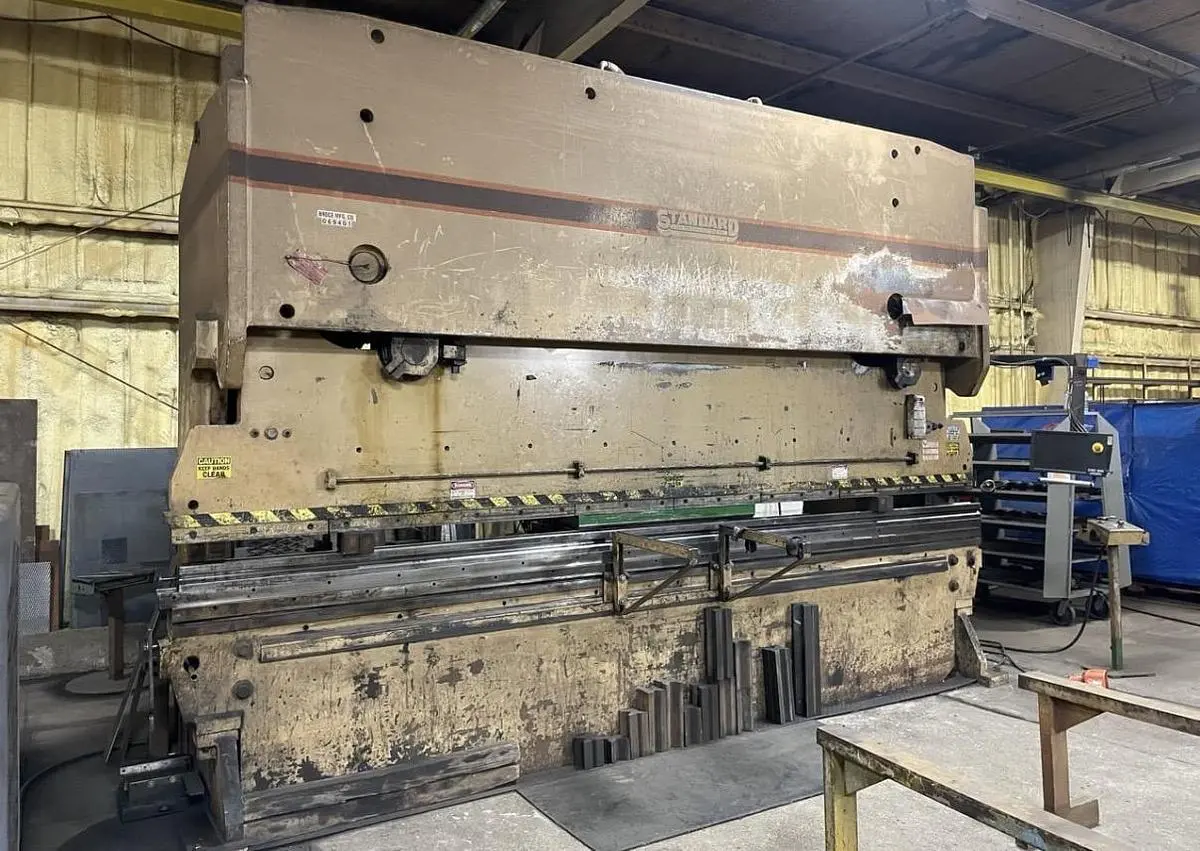

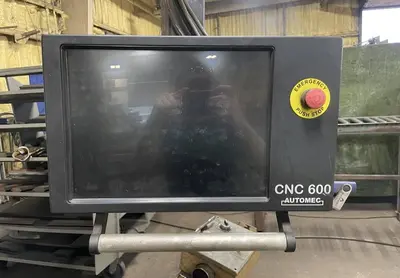

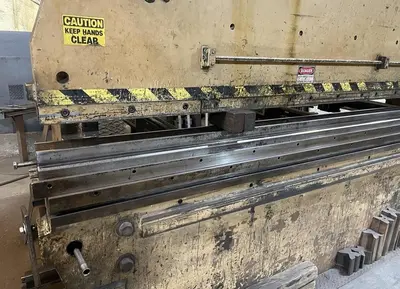

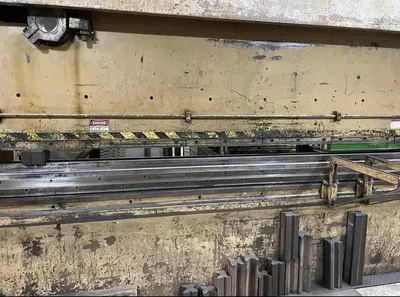

325 Ton x 16′ Standard AB-325-16 CNC Press Brake, 1994 – Automec CNC Control (2 years old) Back Gauge, Tooling Included, Pit Required

Machine Type: Hydraulic Press Brakes
Make: Standard
Model: AB-325-16
Year: 1994
Capacity: 325 Ton x 16‘

Tonnage: 325 Ton
Bending Length: 192″
Dist. Between Housings: 173″
Throat Depth: 10”
Open Height: 16″
Stroke Length: 8”
Closed Height: 8″
Fast Approach Speed: 112 IPM
Fast Return Speed: 18 IPM
Press Speed: 89 IPM
Motor Size: 30 HP – 220/440V – 3 Phs
Capacities (Mild Steel): 5/16″
Weight: 66,000 Lbs
Pit Requirements: 172″ long x 12″ wide x 14″ deep
EQUIPPED WITH:
In-Line Depth Stop
Hydraulic Pressure Tonnage Control w/Gauge
Portable Control Station w/(2) Controls:
– Inch Control
– Emergency Stop
Operation & Parts Manual
MACHINE FEATURES:
“Large Bore” Single Hydraulic Cylinders
Massive “Heavy Duty” Welded Frame
Full Tonnage – Entire Length Of Bed & Ram Stroke
Manifold Centralized Lube System
Hand/Foot Safety Sequence w/Foot Switch
+/- 0.001” Ram Repeatability
Simple & Precise Ram Adjustment
All Components “Off The Shelf”
Off-Center Load Capability

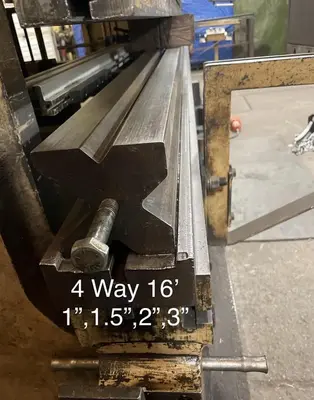

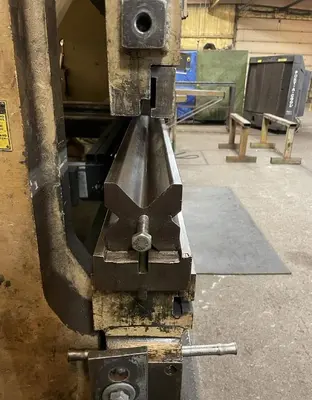

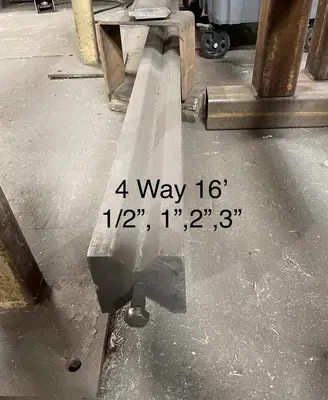

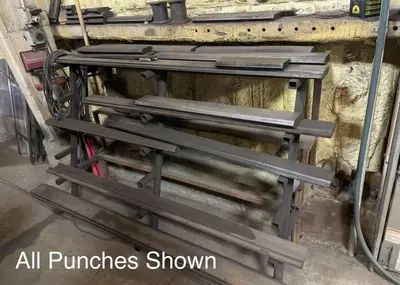

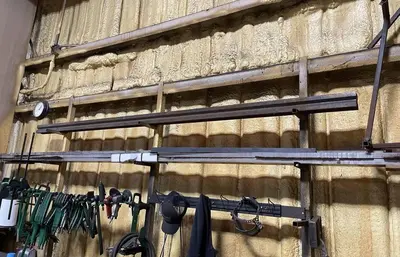

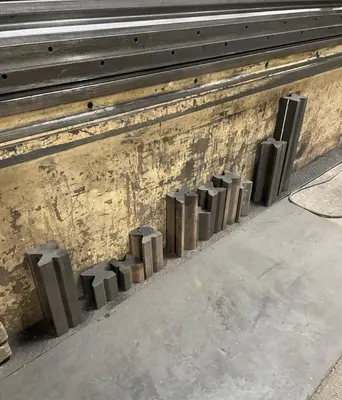

TOOLING PICTURED INCLUDED
