USED 2017 CYCLEMATIC CTL-618E

6" 3 JAW CHUCK
5C COLLET CHUCK
ASSORTMENT OF COLLETS AND TOOLING

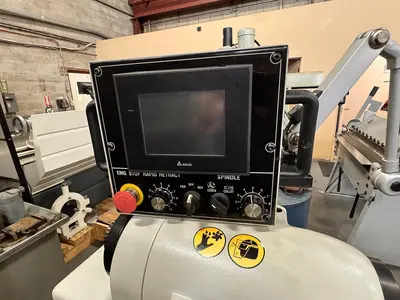

DELTA DIGITAL READOUT WITH X/Z AXIS DISPLAY
DIGITAL THREADING CONTROL

THIS MACHINE IS ON ITS WAY TO OUR WAREHOUSE, FURTHER DETAILS FORTHCOMING

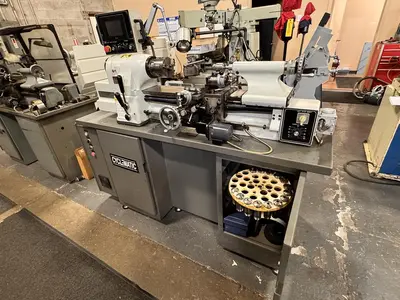

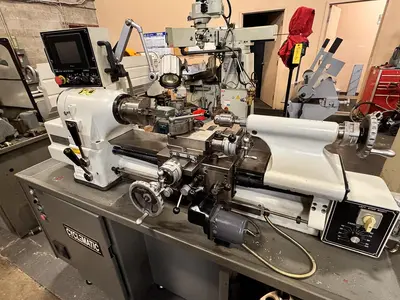

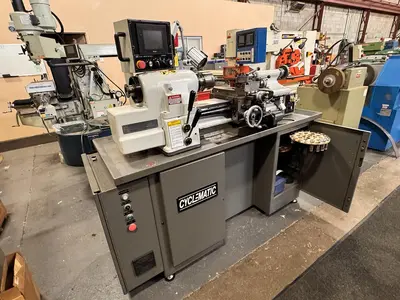

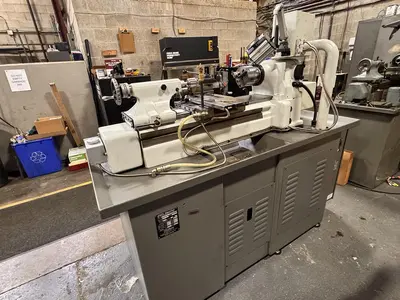

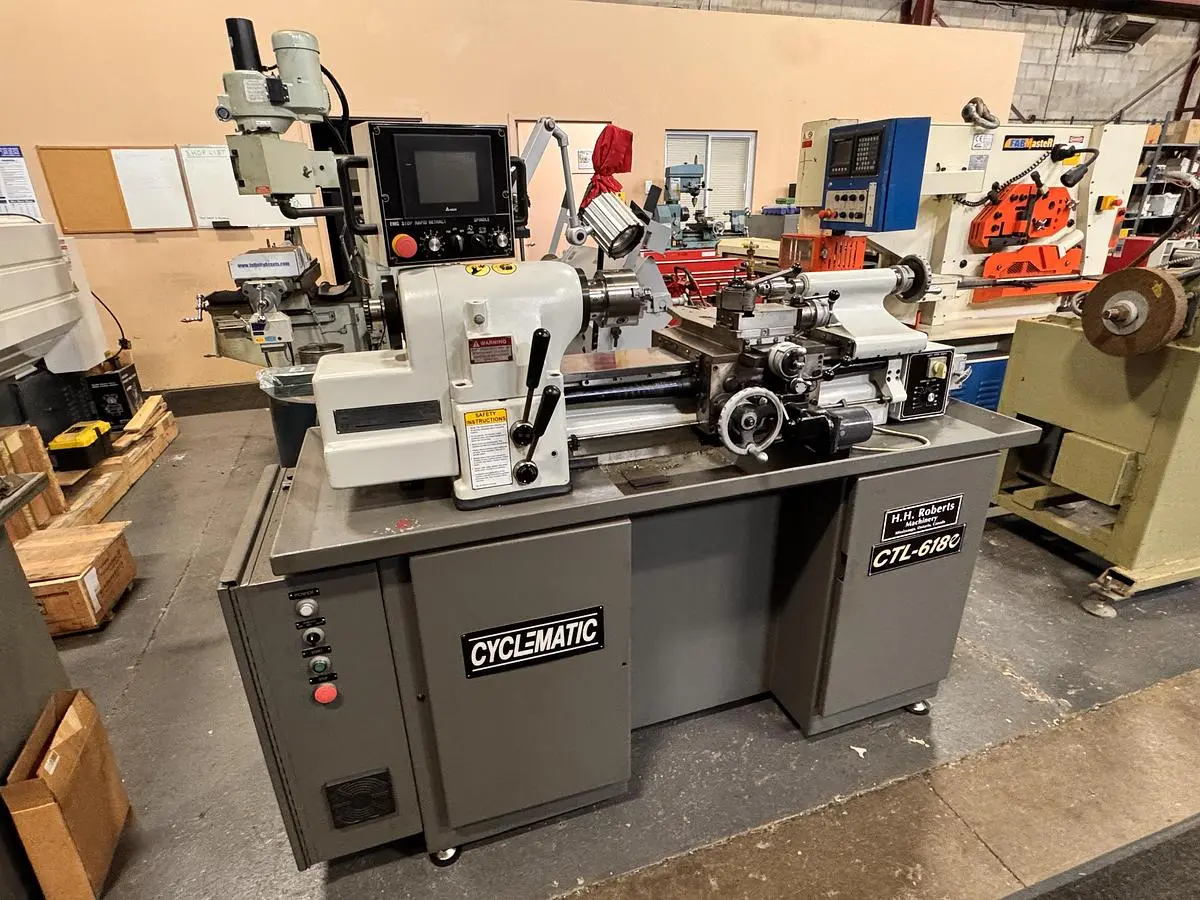

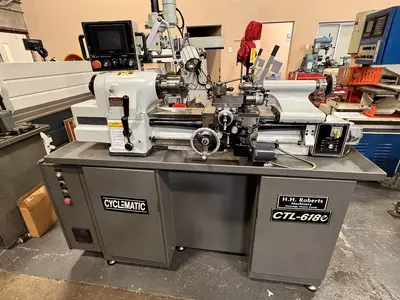

The 2017 Cyclematic CTL-618e Toolroom Lathe is a precision machine designed for detailed metalworking tasks. It comes equipped with a 6" 3-jaw chuck and a 5C collet chuck, along with an assortment of collets and tooling, making it versatile for various applications. The lathe features a Delta digital readout showing X and Z-axis measurements, complemented by digital threading control for enhanced accuracy.

With a swing over bed of 11 inches, swing over carriage of 9 inches, and swing over cross slide of 6 inches, the CTL-618e is capable of accommodating moderately sized workpieces, with a distance between centers of 18 inches. The spindle bore is 1-1/4 inches with a speed range from 50 to 4000 RPM, driven by a robust 3 HP motor. This machine also allows for cross slide travel of 6 inches and compound rest travel of 3 inches, along with a tailstock quill travel of 3-3/4 inches.

The lathe operates on 230V, 3-phase, 60 Hz electrical supply, ensuring it meets industrial standards for power and efficiency. Ideal for both toolroom and production tasks, this used lathe offers a professional solution for precision machining requirements.
