USED 2000 CITIZEN L20VII 5M7
Overview

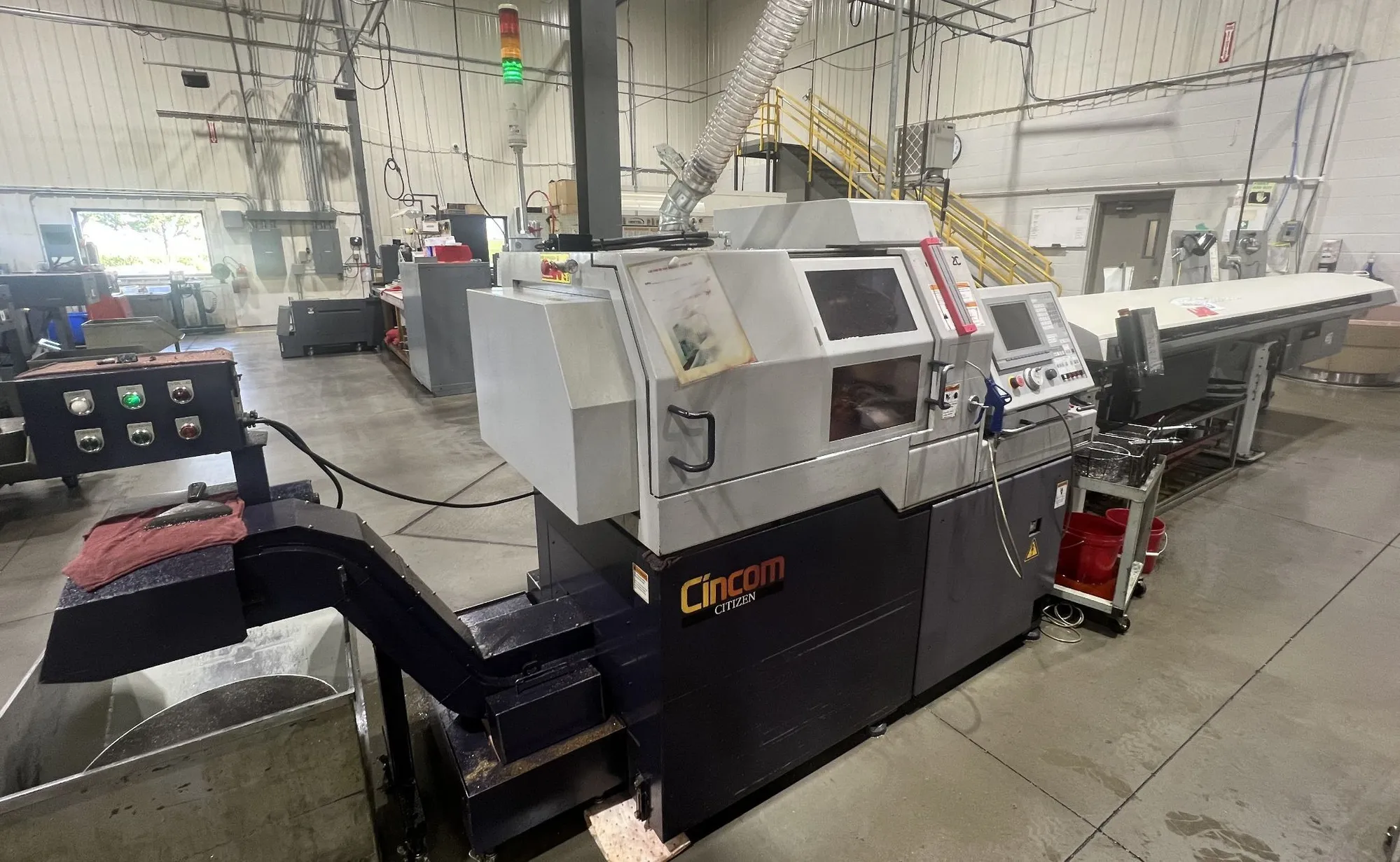

CITIZEN L20 VII (5M7) SWISS TYPE CNC LATHE (used) New 2000 - Equipped with: Fire Suppression, Chip Conveyor, Part Conveyor, Patrol Light, LNS Express 326 magazine bar loader w/14mm, 17mm, 21mm channel sets, All available manuals, complete tool kit, keys. Ran oil.
Specs
Citizen L20 Type VII
with Cincom System M6 (Mitsubishi Meldas 635LC-AC11)
Five Cutting Axes (X1, Y1, Z1, X2, Z2)
Three Miscellaneous Axes (A1, A2, A3)
Including:
1) Simultaneous 8 Axes control
2) AC Servo Axes Control
3) Main Spindle Speed 200 ~ 10,000 rpm 5-digit stepless command
4) Back Spindle Speed 200 ~ 8,000 rpm 4-digit stepless command
5) Live Tool Spindle Speed 200 ~ 5,000 rpm 4-digit stepless command
6) L51620U31B 4 Rotary Tools Drive System
7) L51620U9130B Back Spindle Collet Chuck Unit (S&M TF25)
8) L51620U32J Work-piece Separator (L max = 45mm)
9) L51620U10R Cutting Oil Tank with Oil Level Detector (32 Gal Oil capacity)
10) L51620U60R Back Spindle Air Blow Unit
11) L1620U2150Z Synchronous Type Rotary Guide Bushing Unit for (uses S&M TD25NS)
12) L1620U9130Z Main Spindle Collet Chuck Unit (S&M TF25)
