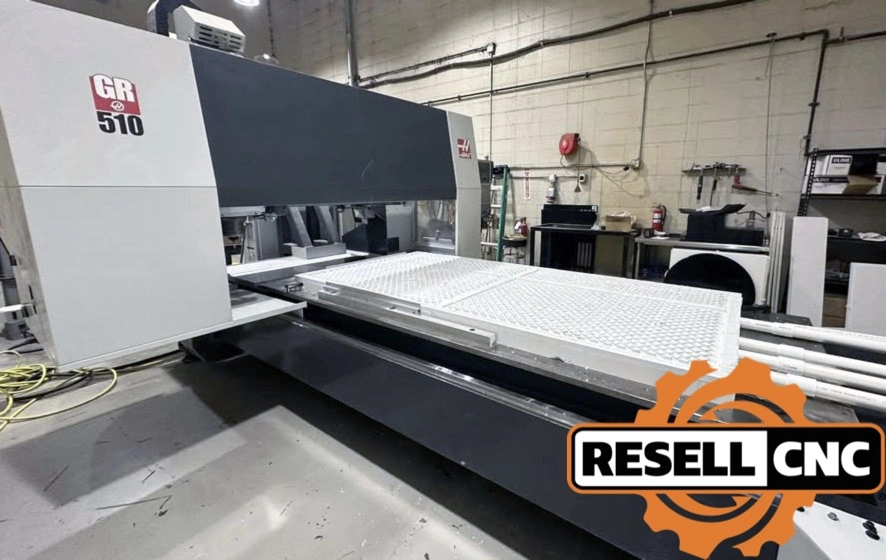

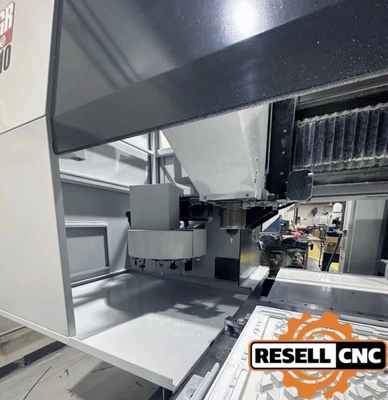

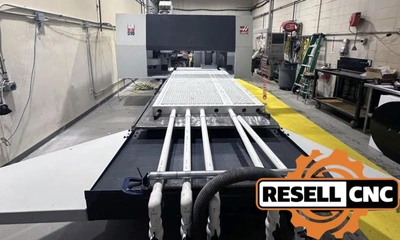

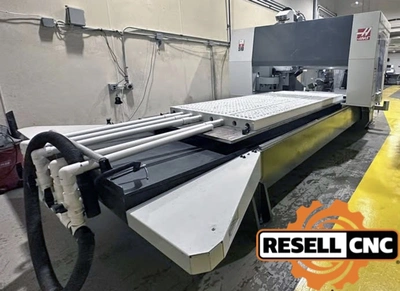

USED 2020 Haas GR-510

X2nd Turret Live Tooling: false
X4th Axis: false
X5th Axis: false
Additional Machine Specs: Probing Hardware (Needs Installation)

Upgraded 15,000 RPM High-Speed Spindle

Gantry Router Coolant System

Programmable Coolant Nozzle

Steel Table (Inch)

Second Home Position

Max Torque 48 ft-lbf @ 1,500 RPM

Direct Drive / Belt Drive Spindle

X-Axis Rapid 800 IPM

Y-Axis Rapid 2,100 IPM

Z-Axis Rapid 1,100 IPM

Distance Between Columns 62"

Max Thrust X 2,520 LBF / Y 1,020 LBF / Z 2,050 LBF

B Axis: false
C Axis: false
Control Make Model: Haas
Control Options: High Speed Machining, Remote Jog Handle, Expanded Memory
Coolant Type S: Flood Coolant, Programmable Coolant
Cutting Feed Rate: 800
Live Milling Thru Spindle Coolant: false
Live Tooling Milling: false
Max Table Pallet Load: 6000.0
Max Tool Diameter: 3.5
Max Tool Weight: 12.0
Max Workpiece Weight: 6000.0
Programmable Tailstock: false
Rapid Traverse: 2100
Single Turret: false
Single Turret Live Tooling: false
Spindle Motor: 15 HP
Spindle Nose To Table Top: 13.5
Spindle Speed: 15000.0
Spindle Taper Type: CAT#40
Sub Spindle: false
Tailstock: false
Tool Changer Type: Umbrella
Tool Positions: 10.0
Twin Turret: false
X Travel: 121.0
Y Axis: false
Y Travel: 61.0
Z Travel: 11.0
