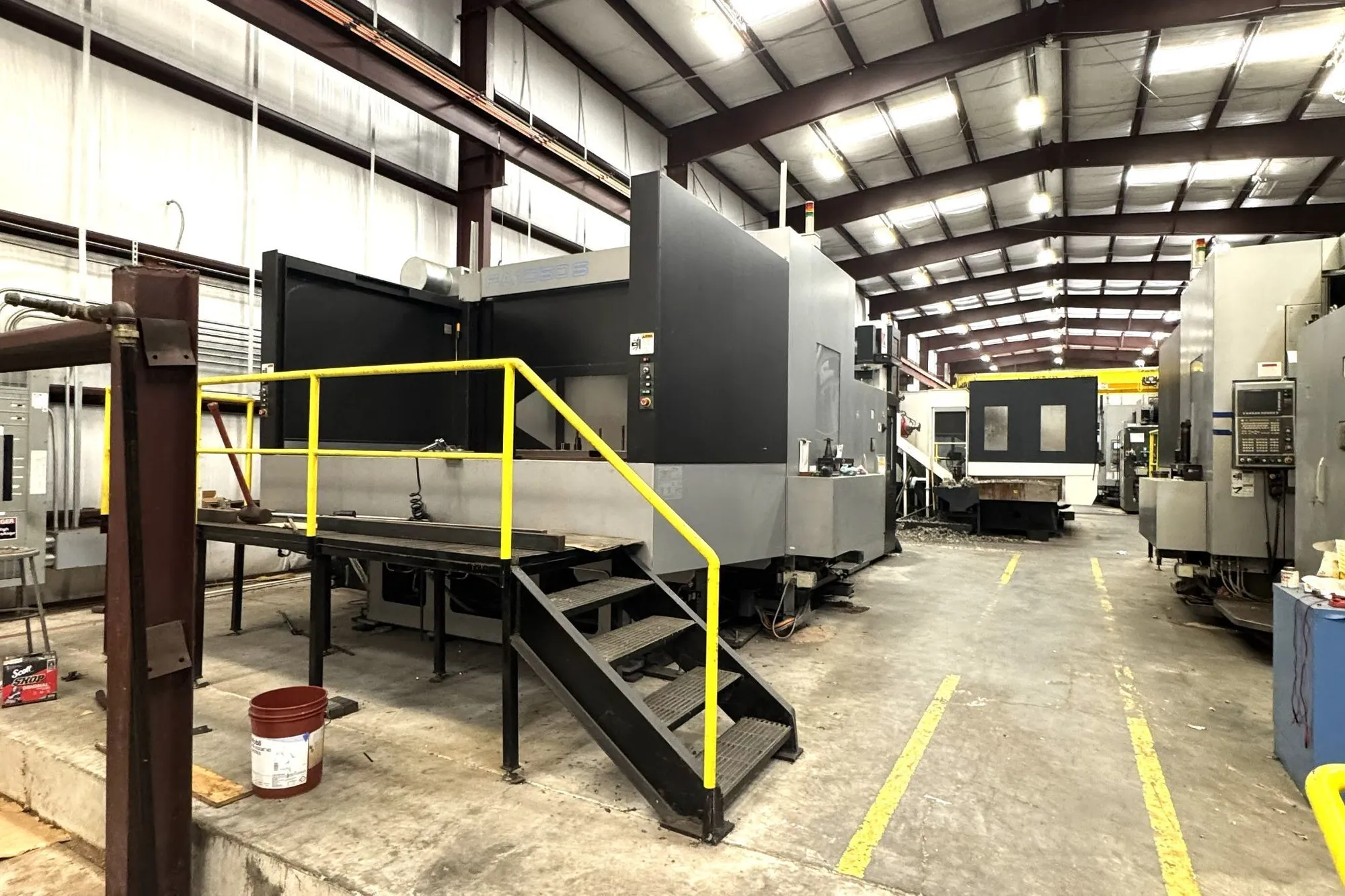

USED 2014 TOYODA FA1050S

2014 Toyoda FA-1050 Heavy-duty, large-frame horizontal machining center built for high-load cutting and long cycle times. The FA1050S offers exceptional rigidity, high horsepower, and a large work envelope, making it ideal for aerospace, energy, and oversized part production. Heavy Duty Forth Axis 1 Degree Table Positioning for Part
Weights and Rigidity Milling Capabilities. Chip Blaster 1000 PSI High Pressure Thru-Spindle Coolant System. Side Discharge Barnes Chip - Coolant Separator Ungraded
System Installed.

Main Specifications
X-Axis Travel 62.8"
Y -Axis Travel 55.1"
Z -Axis Travel 45.2"
Main Power 50 hp
Max RPM 6,000 RPM
# ATC 60
Taper CAT 50 Big Plus
Pallet-W 41.3"
Pallet-L 41.3"
# Axis 4th. Axis 1 Degree Rotary Table
Dimensions 215" x 320" x 161"
Weight 66,000 Lbs.

Equipped With:
Fanuc 31i CNC
Pallet Size: 41.3″ x 41.3″
Table Index: Rotary table (1 degree)
X-Axis Travel: 62.8”Y-Axis Travel: 55.1”
Z-Axis Travel: 45.2”
8,800 lb. Table Loading
6,000 RPM High Power Gear Spindle
Cat 50 Taper Big Plus Contact Spindle
Barnes Side Discharge Chip - Coolant Filter
Separator Chip Conveyor
1000 PSI Chip Blaster Thru-Spindle Coolant Installed.

Special Pricing $ Please Email Request for Quotations.

I thank you for your review and consideration and questions

Sincerely,
Mark Murphy
Murphy Machinery
[email protected]
