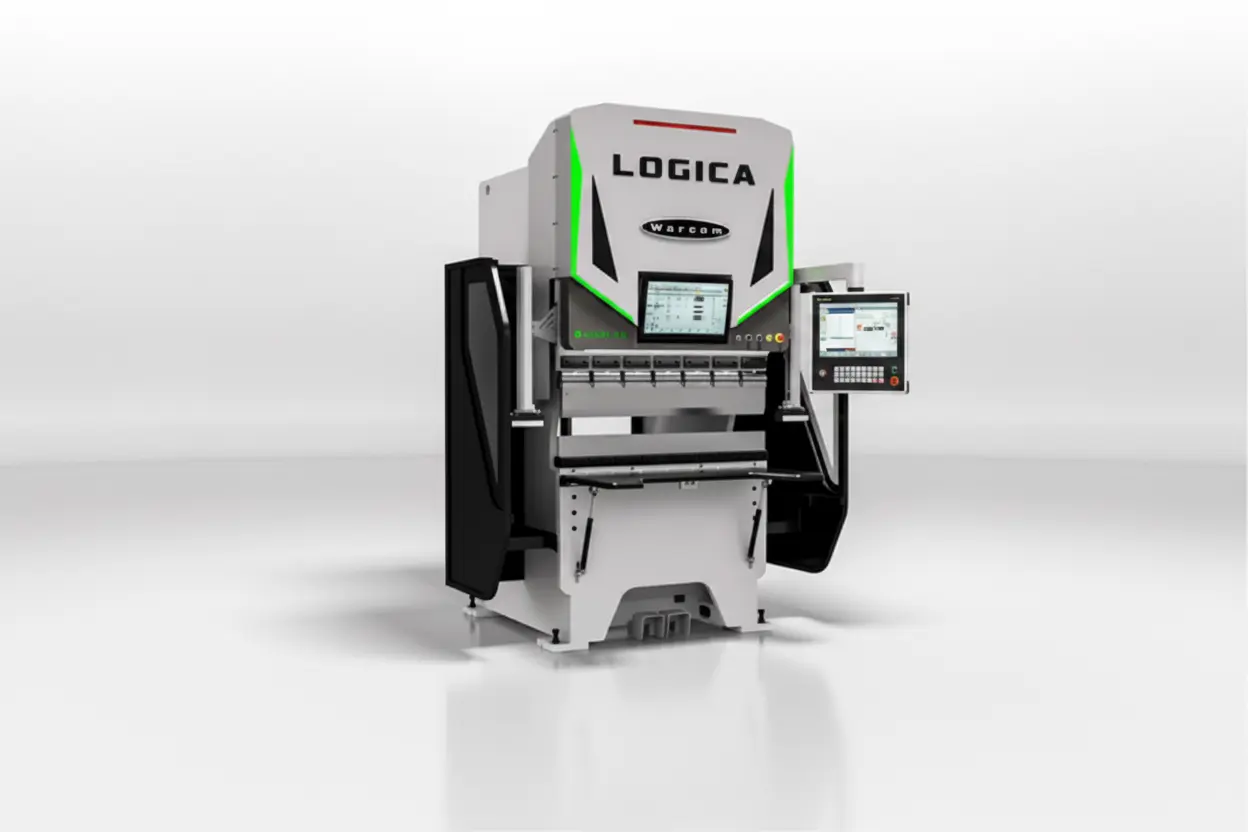

NEW WARCOM LOGICA 60-1700

Machine Specifications
Standard Features
4-Axis CNC configuration (Y1, Y2, X, R)
ESA S875 CNC Controller
21-inch Touchscreen Interface
Servo-electric drive technology
Motorized X & R backgauge
Two adjustable backgauge finger stops
Digital CAN-Bus servo motors
500 mm/sec X-axis speed
Manual PROMECAM upper tool clamping
Manual PROMECAM lower tool clamping
Hardened double-guide bearing system
Adjustable LED work light
Two sliding front support arms with anti-scratch coating
LazerSafe safety system with PCSS PLC
CE compliant
Machine supplied without tooling
Key Benefits
High-precision servo-electric bending
Lower energy consumption than hydraulic press brakes
Reduced maintenance costs
Quiet and environmentally friendly operation
Excellent repeatability and positioning accuracy
Fast setup and production speeds
User-friendly ESA touchscreen CNC
Compact footprint with high productivity
Ideal Applications
Sheet Metal Fabrication
Stainless Steel Fabrication
Electrical Cabinets
HVAC Components
Medical Equipment Manufacturing
Aerospace Components
Automotive Parts
Electronics Enclosures
Architectural Metalwork
General Metal Fabrication
Available Factory Options
Warcom offers several optional upgrades to customize the machine for specific production requirements.
CNC & Backgauge Options
6-Axis CNC Configuration (Z1-Z2)
7-Axis CNC Configuration (Z1-Z2 + X5)
8-Axis CNC Configuration (Z1-Z2 + X5-X6)
Tool Clamping Systems
Pneumatic PROMECAM Tool Clamping
Pneumatic Die Clamping
Wila Pneumatic Punch Clamping
Wila Pneumatic Die Clamping
Wila Hydraulic Die Clamping
Tooling
Standard Wila Tool Package
Premium Wila Tooling Package
Safety & Measurement
LazerSafe Motorized Safety System
IRIS Fast Bend Safety System
LazerSafe Angle Measurement System
DATA M Copra Laser Check 6G
Productivity Accessories
3D Offline Programming Software (Autopol)
Wireless Digital Protractor
Programmable LED Tool Station Indicator
Additional Adjustable Front Supports
Factory Installation & Operator Training
Manufacturer: Warcom
Model: Logica 60-1700
Machine Type: Electric CNC Press Brake
Condition: New
Press Force: 60 Ton
Maximum Bending Length: 1700 mm (67")
Distance Between Frames: 1200 mm
Throat Depth: 240 mm
Daylight Opening: 450 mm
Ram Stroke: 230 mm
X Axis Stroke: 450 mm
R Axis Stroke: 150 mm
Y Axis Accuracy: ±0.005 mm
X Axis Accuracy: ±0.05 mm
Approach Speed: 280 mm/sec
Bending Speed: 10 mm/sec
Return Speed: 280 mm/sec
Electrical Supply: 400V / 50Hz / 3 Phase
Approximate Weight: 4,900 kg
