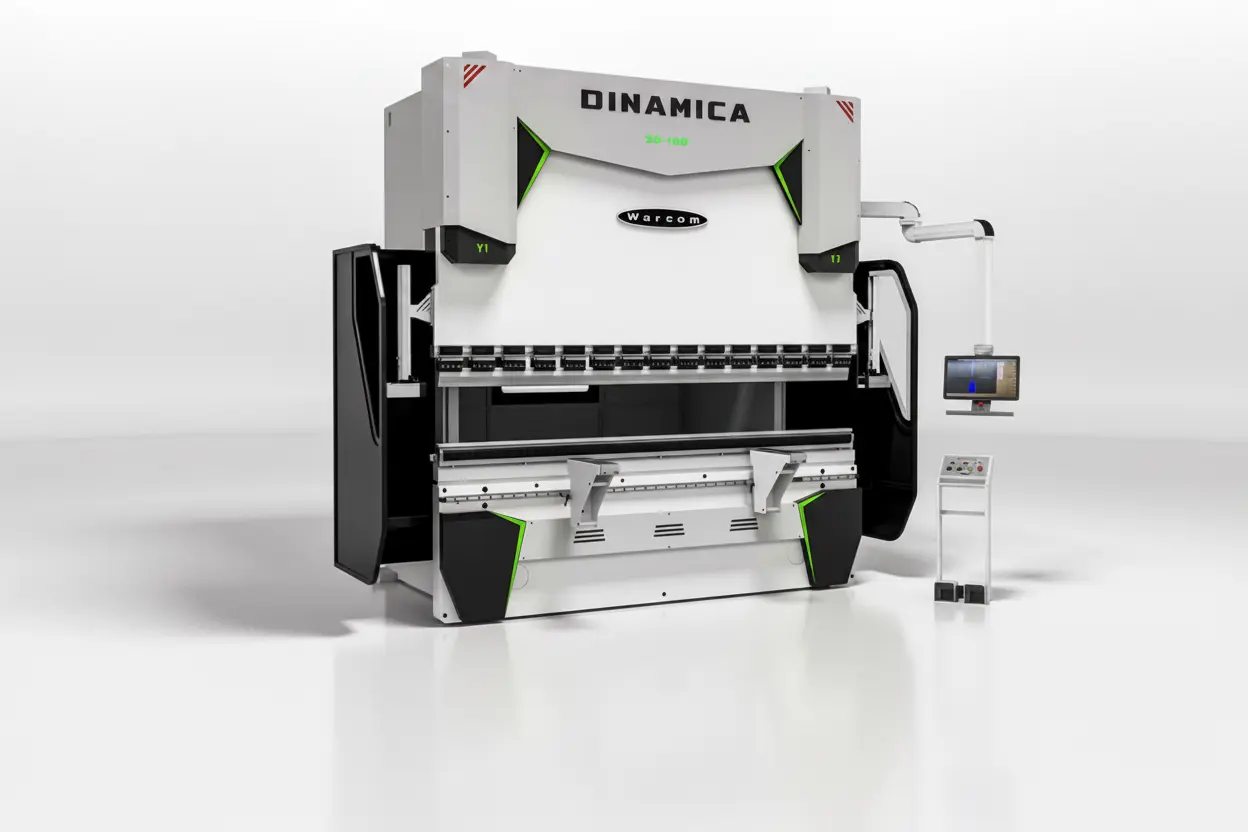

NEW WARCOM DINAMICA 60-30

Specifications
Standard Features
4-Axis CNC (Y1-Y2-X-R)
ESA S875 21" Touchscreen CNC Controller
Talento Touchscreen Control
Motorized X-R Backgauge
Digital CAN BUS Motors
Two Manual Backgauge Finger Stops
Manual PROMECAM Upper Tool Clamping
Manual PROMECAM Lower Tool Clamping
Twin Roll Ram Guiding
DCS PLUS Dynamic Hydraulic Crowning Unit
Heat Exchanger
Low Noise Hydraulic Pump
Two Height Adjustable Front Support Arms
Linear Guide Front Supports
Anti-Scratch Support Material
Side Parking for Front Supports
Latest Generation Lazer Safe Safety System
Adjustable LED Front Working Light
CSA Compliant
Machine Does Not Include
Bending tools
First hydraulic oil fill
CNC Control
ESA S875
Talento 21-inch Touchscreen
4-Axis Control
Y1
Y2
X
R
Backgauge
Motorized X-R Backgauge
Digital CAN BUS Motors
Two Manual Finger Stops
600 mm X-Axis Travel
150 mm R-Axis Travel
Safety Features
Latest Generation Lazer Safe Safety System
Adjustable LED Front Working Light
DCS PLUS Dynamic Hydraulic Crowning
Heat Exchanger
Low Noise Hydraulic Pump
CSA Certified
Electrical Requirements
400 Volt
50 Hz
3 Phase
Approximate Machine Weight
8,000 kg
Available Optional Upgrades
6-Axis Configuration (Y1-Y2-X-R-Z1-Z2)
7-Axis Configuration with X5 Conical Bending
8-Axis Configuration with X5-X6 Conical Bending
Pneumatic Tool Clamping (Promecam)
Pneumatic Die Clamping
Wila Hydraulic Tool Clamping
Standard Tool Package
Wila Tool Package
Lazer Safe Motorized Safety System
Lazer Safe IRIS Fast Bend
Lazer Safe Angle Measurement System
DATA M Copra Laser Check 6G
Autopol 3D Offline Programming Software
Wireless Digital Protractor
Programmable LED Tool Station Indicator
Ideal Applications
Precision Sheet Metal Fabrication
Industrial Metal Forming
Electrical Enclosures
HVAC Manufacturing
Stainless Steel Fabrication
Agricultural Equipment
Automotive Components
General Manufacturing
Manufacturer: Warcom
Model: Dinamica 60-30
Machine Type: CNC Hydraulic Press Brake
Capacity: 60 Ton
Maximum Bending Length: 3200 mm
Distance Between Frames: 2550 mm
Throat Depth: 500 mm
Daylight Opening: 500 mm
Ram Stroke: 300 mm
X-Axis Travel: 600 mm
R-Axis Travel: 150 mm
Y-Axis Positioning Accuracy: ±0.01 mm
X-Axis Positioning Accuracy: ±0.1 mm
Approach Speed: 200 mm/sec
Bending Speed: 10 mm/sec
Return Speed: 180 mm/sec
Main Motor: 7.5 kW
Hydraulic Oil Tank Capacity: 115 L
Maximum Oil Temperature: 45°C
Electrical Supply: 400 V
Frequency: 50 Hz
Power Requirement: 3 Phase (N+M)
Approximate Weight: 8,000 kg
Machine Color: RAL 7035 (Warcom Grey)
