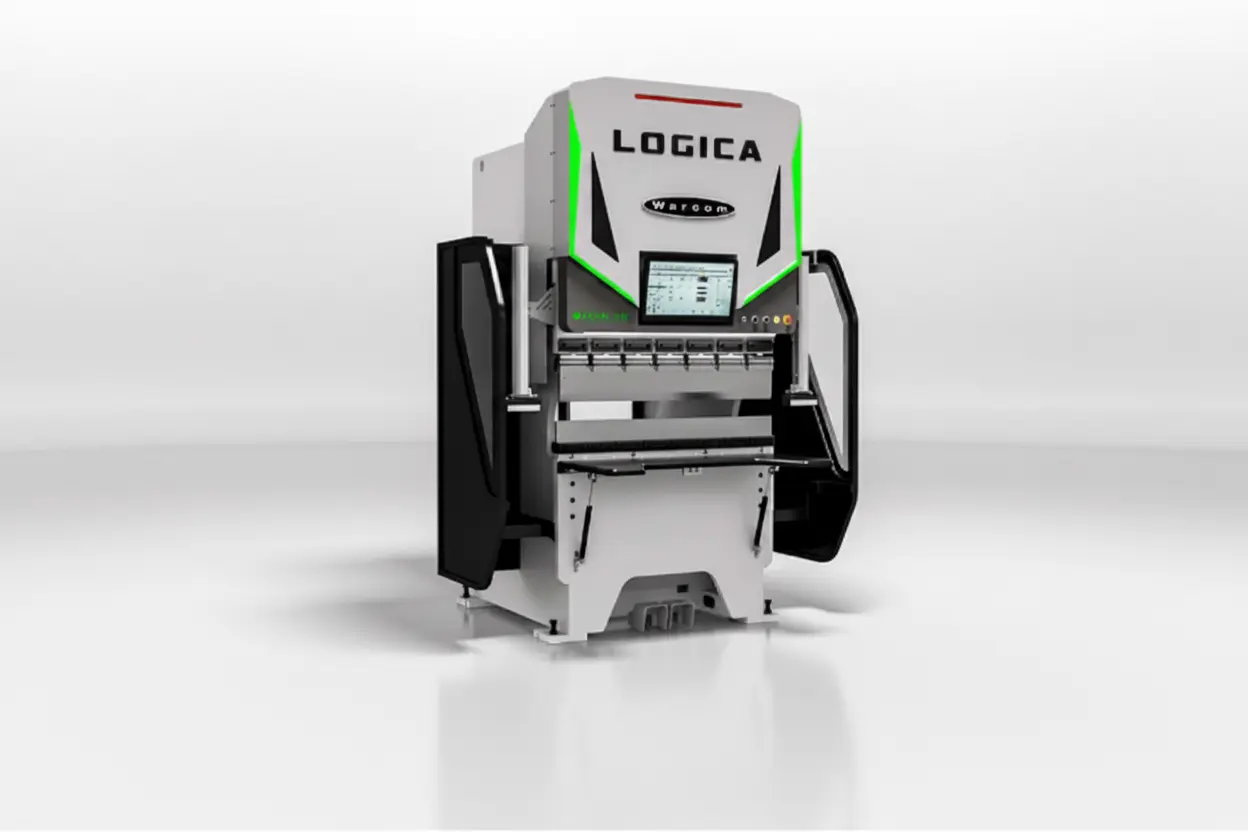

NEW WARCOM LOGICA 60-1250

The Warcom Logica 60-1250 is a precision electric CNC press brake designed for high-speed, energy-efficient sheet metal bending. Equipped with a 60-ton pressing capacity and 1250 mm bending length, the machine features a 4-axis CNC control system with an ESA S875 21-inch touchscreen, motorized X/R backgauge, and Lazer Safe safety technology.
Its electric drive system delivers excellent positioning accuracy while reducing energy consumption compared to hydraulic press brakes. The machine is ideal for precision fabrication, aerospace components, electrical enclosures, stainless steel work, and general sheet metal production. Standard features include PROMECAM manual clamping, adjustable front supports, LED work lighting, hardened guideways, and CE-compliant safety systems.
Machine Overview
Model: Logica 60-1250
Machine Type: Electric CNC Press Brake
Machine Capacity
Press Force: 60 Ton
Bending Length: 1250 mm (49.2")
Distance Between Frames: 1050 mm
Throat Depth: 240 mm
Daylight Opening: 450 mm
Ram Stroke: 230 mm
Approximate Weight: 4,400 kg
Power Supply: 400V / 50Hz / 3 Phase
Standard Features
4-Axis CNC (Y1, Y2, X, R)
ESA S875 CNC Control
21" Touchscreen Control
Motorized X & R Backgauge
CAN-Bus Digital Servo Motors
Two Adjustable Finger Stops
500 mm/sec X-axis Speed
Manual PROMECAM Upper Tool Clamping
Manual PROMECAM Lower Tool Clamping
Hardened Linear Guide System
Adjustable LED Working Light
Two Sliding Front Support Arms
Lazer Safe Safety System
CE Compliant
