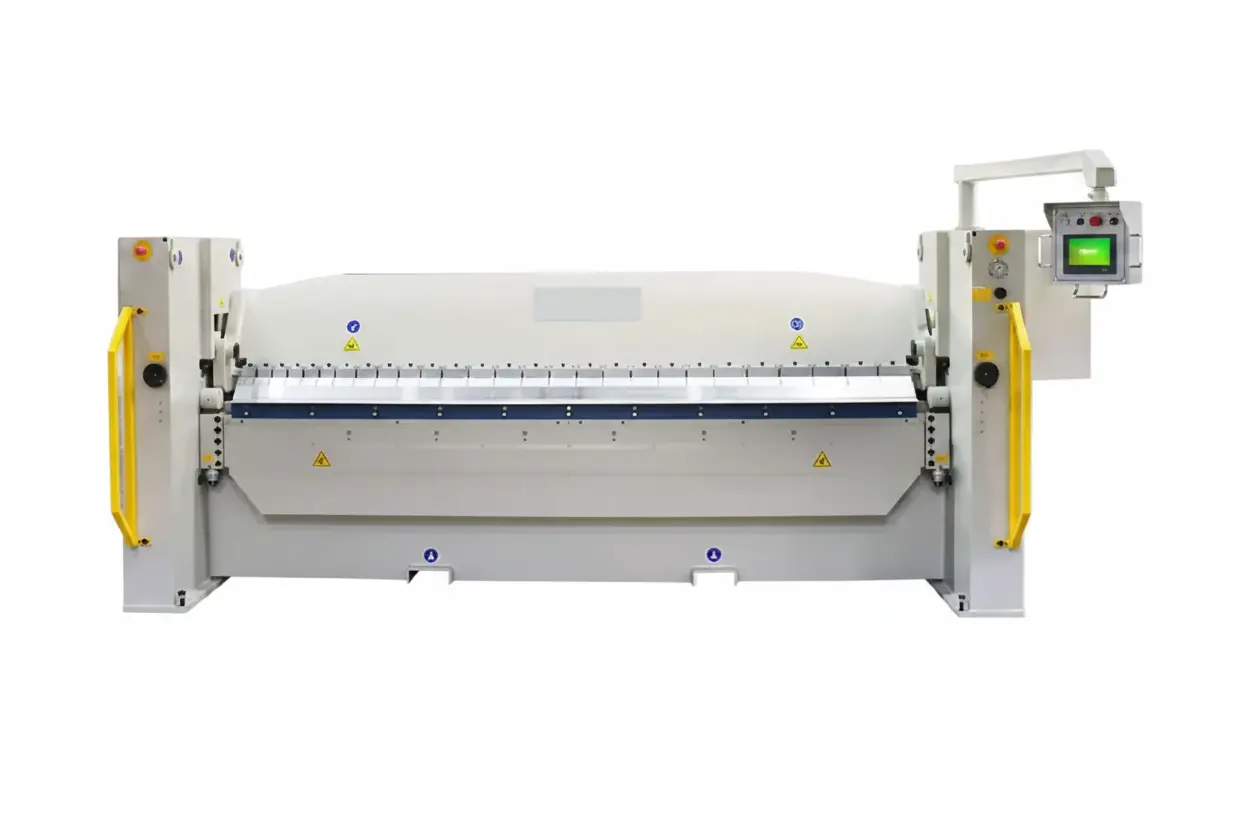

NEW LINMAC VH-1020-6HC

Key Specifications
Standard Features
Segmented / Straight Clamping Tools: Multi-size tooling options and Quick replacement design
Hydraulic Hold-Down System: Adjustable pressure for different material thickness
Angle Bar (Standard 65°): Two-position movable design for reverse bending
Lower Crowning Compensation: Ensures uniform bending accuracy
Gap Clearance Adjustment: Optimized for varying sheet thickness
Hydraulic Pressure Gauge: Easy monitoring and adjustment
NC Controller (M15 LED – Standard): Single-axis angle control and Programmable bending sequences
Back Gauge System: Manual handwheel adjustment (standard) and Optional motorized upgrade
Controller Options
Standard: M15 LED NC Controller
Digital display
1-axis angle control
Stores up to 6 programs with 16 steps each
Optional: Schneider Electric 2-Axis Controller
7" touchscreen interface
Automatic angle + back gauge control
Up to 256 programs, 50 steps each
Multi-language support
Included Equipment
3HP 3PH 220V 60HZ Motor
M15 LED Angle Setting Device
Standard clamping tooling
Hydraulic system with pressure control
Manual back gauge
Bending Length: 122" (3100 mm)
Capacity (Mild Steel): 14 Gauge (2.0 mm)
Capacity (Stainless Steel): ~16–18 Gauge (approx. 1.2 mm)
Bending Angle: 0° – 135°
Minimum Reverse Bend: ~1.38" (35 mm)
Motor: 3 HP
Electrical: 3 Phase, 220V, 60Hz (CSA Electrical)
Packing Weight: ~8,157 lbs (3700 kg approx. for similar series)
Machine Type: NC Hydraulic Folding Machine
