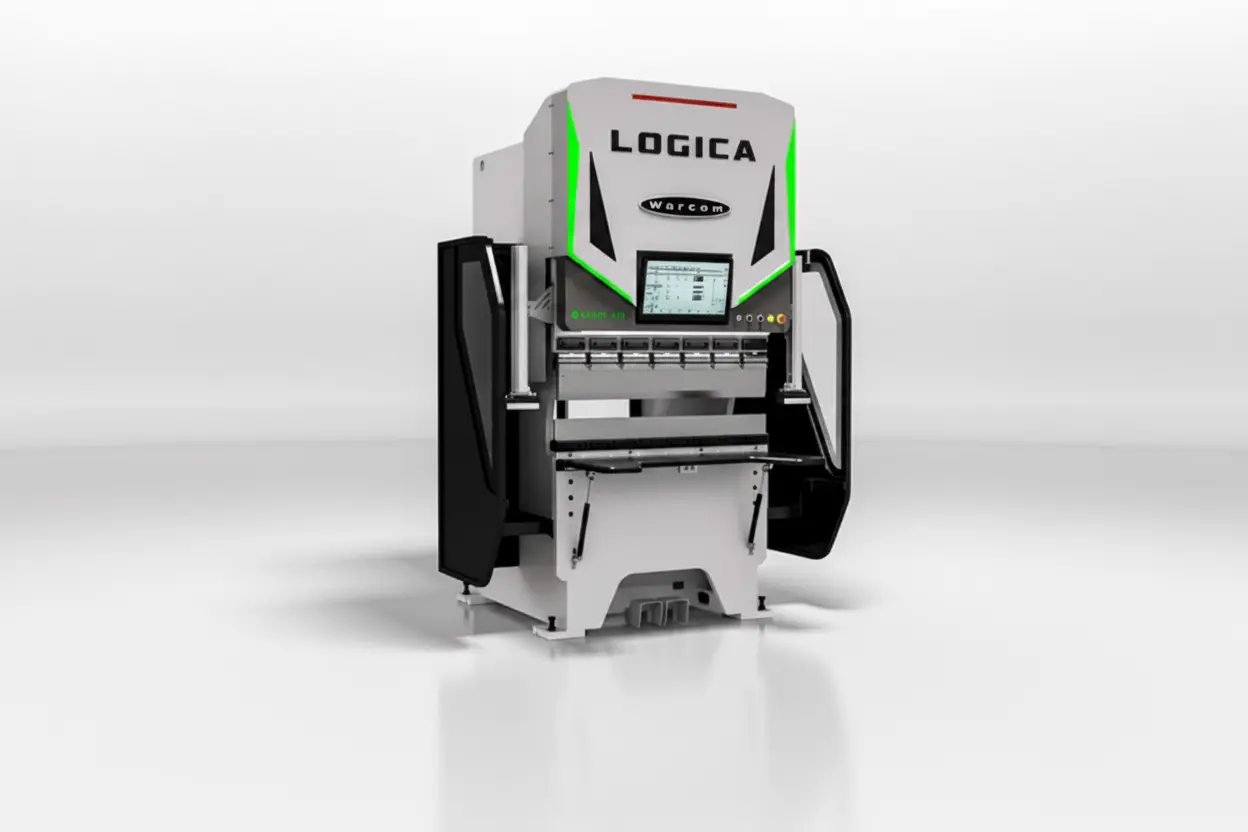

NEW WARCOM LOGICA 40-1700

Machine Specifications
Standard Features
4-Axis CNC (Y1, Y2, X, R)
ESA S875 CNC Controller
21-inch Touchscreen Interface
Servo-electric Drive Technology
Motorized X & R Backgauge
Two Adjustable Finger Stops
500 mm/sec X-Axis Travel
PROMECAM Manual Upper Tool Clamping
PROMECAM Manual Lower Tool Clamping
Hardened Double Guide Bearing System
Adjustable LED Work Light
Two Height Adjustable Front Support Arms
LazerSafe Safety System with PCSS PLC
CE Certified
Machine supplied without tooling
Benefits
Energy-efficient electric drive
High bending accuracy
Quiet operation
Reduced maintenance costs
Fast setup and production
Excellent repeatability
Compact footprint
Ideal for precision sheet metal manufacturing
Ideal Applications
Precision Sheet Metal Fabrication
Electrical Cabinets
Stainless Steel Components
Medical Equipment
Aerospace Parts
Electronics Manufacturing
HVAC Components
Automotive Parts
General Fabrication Shops
Optional Equipment Available
Warcom offers numerous factory-installed options including:
6-Axis CNC Configuration
7-Axis CNC Configuration
Additional Conical Bending Axes
Pneumatic PROMECAM Tool Clamping
Wila Pneumatic Tool Clamping
Wila Hydraulic Die Clamping
Wila Tool Packages
LazerSafe IRIS Fast Bend System
Laser Angle Measurement
DATA M Copra Laser Check 6G
3D Offline Programming Software
Wireless Digital Protractor
Additional Front Supports
Manufacturer: Warcom
Model: Logica 40-1700
Machine Type: Electric CNC Press Brake
Condition: New
Press Force: 40 Ton
Bending Length: 1700 mm (67")
Distance Between Frames: 1200 mm
Throat Depth: 240 mm
Daylight: 450 mm
Ram Stroke: 230 mm
X Axis Stroke: 450 mm
R Axis Stroke: 150 mm
Y Axis Accuracy: ±0.005 mm
X Axis Accuracy: ±0.05 mm
Approach Speed: 280 mm/sec
Bending Speed: 10 mm/sec
Return Speed: 280 mm/sec
Electrical Supply: 400V / 50Hz / 3 Phase
Machine Weight: Approx. 4700 kg
