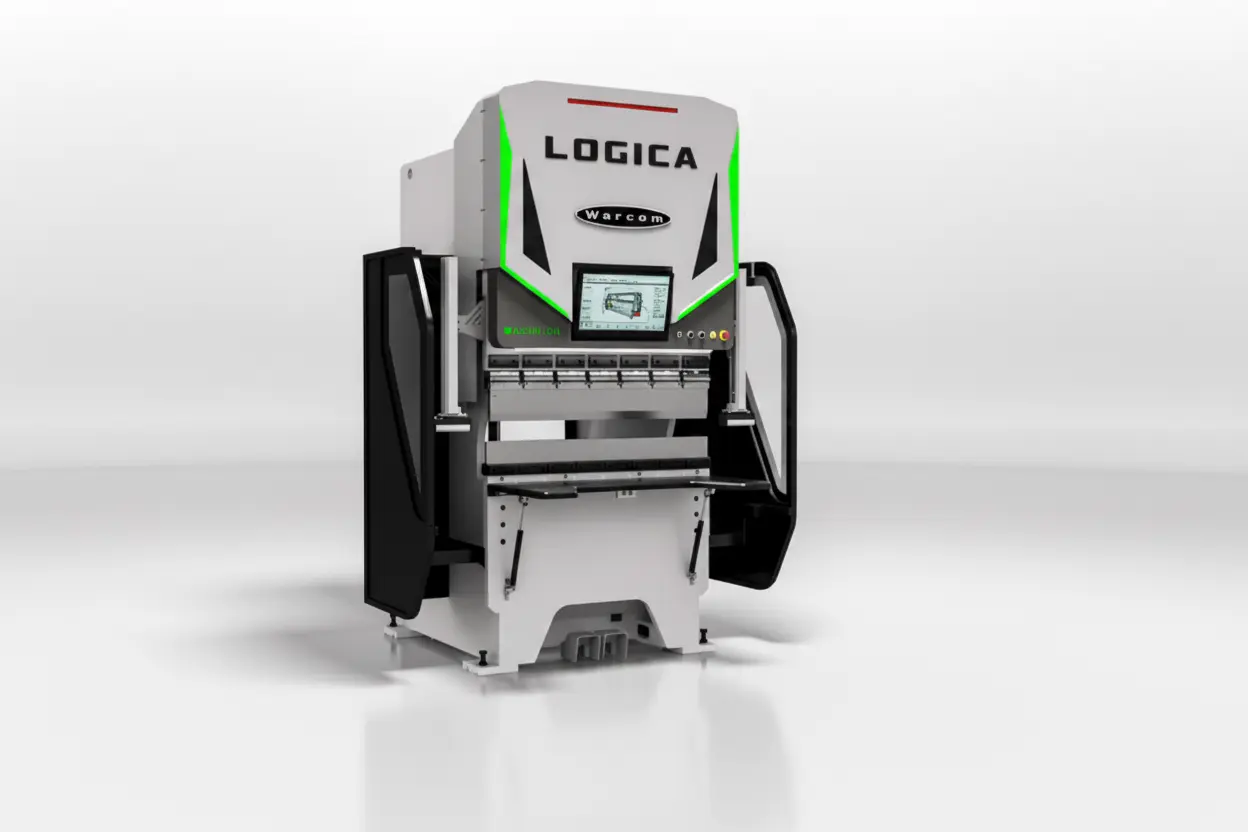

NEW WARCOM LOGICA 40-1250

Machine Specifications
Standard Features
4-Axis CNC configuration (Y1, Y2, X, R)
ESA S875 CNC controller with 21" touchscreen
Servo-electric drive system
Motorized X & R backgauge
Two adjustable backgauge fingers
CAN-Bus digital servo motors
500 mm/sec X-axis speed
Manual PROMECAM upper tool clamping
Manual PROMECAM lower tool clamping
Hardened double-guide bearing system
Adjustable LED work light
Two sliding front support arms with anti-scratch surface
LazerSafe safety system with PCSS PLC
CE compliant
Machine supplied without tooling
Key Benefits
Energy-efficient servo-electric technology
Extremely accurate and repeatable bending
Quiet operation compared to hydraulic press brakes
Low maintenance requirements
Fast approach and return speeds
Compact footprint for smaller workshops
User-friendly touchscreen CNC interface
High productivity with reduced operating costs
Ideal Applications
Precision Sheet Metal Fabrication
Stainless Steel Fabrication
Electrical Cabinets
HVAC Manufacturing
Aerospace Components
Medical Equipment
Electronics Enclosures
Architectural Metalwork
Prototype & Production Bending
General Fabrication Shops
Available Factory Options
Warcom offers a wide range of optional upgrades, including:
CNC Upgrades
6-Axis CNC Configuration (Z1-Z2)
7-Axis CNC Configuration (Z1-Z2 + X5)
8-Axis Configuration (Z1-Z2 + X5-X6)
Tool Clamping
Pneumatic PROMECAM Tool Clamping
Pneumatic Die Clamping
Wila Pneumatic Tool Clamping
Wila Hydraulic Die Clamping
Tooling
Standard Wila Tool Package
Premium Wila Tooling
Safety & Measurement
LazerSafe Motorized Safety System
IRIS Fast Bend Safety System
LazerSafe Angle Measurement
DATA M Copra Laser Check 6G
Productivity Options
3D Offline Programming Software (Autopol)
Wireless Digital Protractor
Programmable LED Tool Station Indicator
Additional Front Support Arms
Installation & Operator Training
Manufacturer: Warcom
Model: Logica 40-1250
Machine Type: Electric CNC Press Brake
Condition: New
Press Force: 40 Ton
Bending Length: 1250 mm (49.2")
Distance Between Frames: 1050 mm
Throat Depth: 240 mm
Daylight Opening: 450 mm
Ram Stroke: 230 mm
X Axis Stroke: 450 mm
R Axis Stroke: 150 mm
Y Axis Accuracy: ±0.005 mm
X Axis Accuracy: ±0.05 mm
Approach Speed: 300 mm/sec
Bending Speed: 10 mm/sec
Return Speed: 300 mm/sec
Electrical Supply: 400V / 50Hz / 3 Phase
Machine Weight: Approx. 4,200 kg
