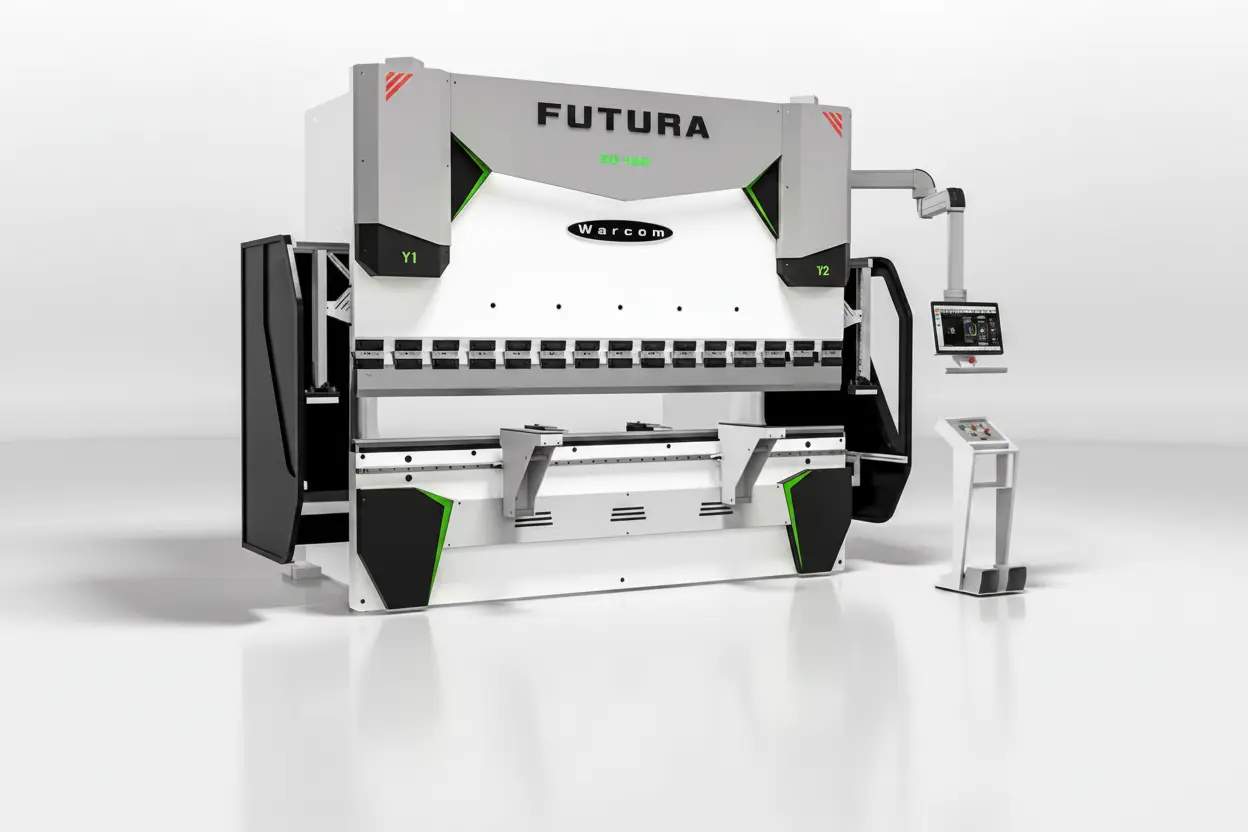

NEW WARCOM FUTURA 60-20

Specifications
Standard Features
4-Axis CNC (Y1-Y2-X-R)
ESA S875 21" Touchscreen CNC Controller
Talento Videographic Control
Motorized X-R Backgauge
Digital CAN BUS Servo Motors
Two Front Adjustable Backgauge Fingers with Pneumatic Brake
Manual PROMECAM Upper Tool Clamping
Manual PROMECAM Lower Tool Clamping
Heat Exchanger
Automatic Centralized Lubrication Pump
Two Height Adjustable Sliding Front Supports
Anti-Scratch Material on Front Supports
Lazer Safe Safety System with PCSS PLC
CSA Compliant
Machine Does Not Include
Bending tools
First hydraulic oil fill
CNC Control
ESA S875
Talento 21-inch touchscreen
4-axis control
Y1
Y2
X
R
Backgauge
Motorized X-R Backgauge
Digital CAN BUS Motors
Two adjustable finger stops
Front adjustment with pneumatic brake
600 mm X-axis travel
150 mm R-axis travel
Safety Features
Lazer Safe Safety System
PCSS PLC Safety Controller
CSA Certified
Automatic Centralized Lubrication
Heat Exchanger
Electrical Requirements
400 Volt
50 Hz
3 Phase
Approximate Machine Weight
4,900 kg
Available Optional Upgrades
6-Axis Configuration (Y1-Y2-X-R-Z1-Z2)
7-Axis Configuration with X5 Conical Bending
8-Axis Configuration with X5-X6 Conical Bending
Pneumatic Tool Clamping (Promecam)
Wila Hydraulic Tool Clamping
Standard Promecam Tool Package
Wila Tool Package
Lazer Safe IRIS Fast Bend
Lazer Safe Angle Measurement System
DATA M Copra Laser Check 6G
Autopol 3D Offline Programming Software
Wireless Digital Protractor
CNC Automatic Motorized Crowning Table (Wila Type)
Programmable LED Tool Station Indicator
Ideal Applications
Precision Sheet Metal Fabrication
Custom Metal Manufacturing
Electrical Enclosures
HVAC Components
Stainless Steel Fabrication
Agricultural Equipment
Automotive Parts
General Industrial Manufacturing
Manufacturer: Warcom
Model: Futura 60-20
Machine Type: CNC Hydraulic Press Brake
Capacity: 60 Ton
Maximum Bending Length: 2200 mm
Distance Between Frames: 1550 mm
Throat Depth: 500 mm
Daylight Opening: 380 mm
Ram Stroke: 180 mm
X-Axis Travel: 600 mm
R-Axis Travel: 150 mm
Y-Axis Positioning Accuracy: ±0.01 mm
X-Axis Positioning Accuracy: ±0.1 mm
Approach Speed: 200 mm/sec
Bending Speed: 10 mm/sec
Return Speed: 180 mm/sec
Main Motor: 7.5 kW
Maximum Oil Temperature: 45°C
Electrical Supply: 400 V
Frequency: 50 Hz
Power Requirement: 3 Phase (N+M)
Approximate Weight: 4,900 kg
Machine Color: RAL 7035 (Warcom Grey)
