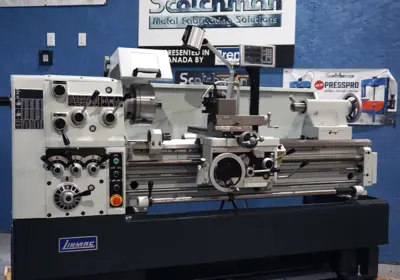

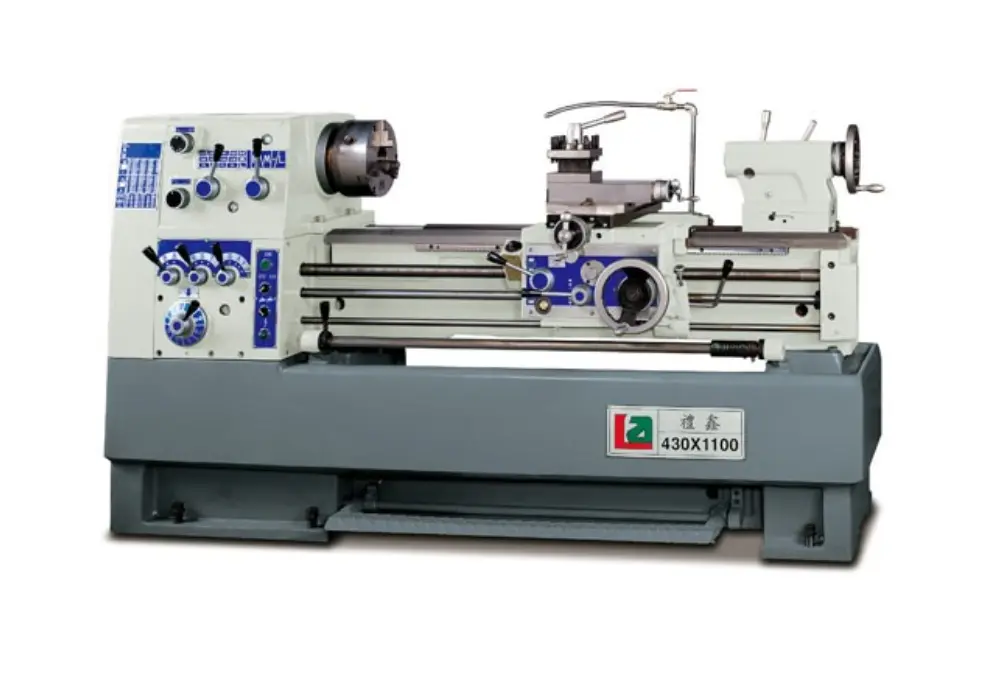

NEW LINMAC LA-430X1100

Specifications and Capacities
Capacity
Width of bed: 12”
Total travel of top slide: 4-3/4”
Swing over bed: 17”
Swing over cross slide: 10-3/4
Swing in gap: 24”
Gap width in front of face plate: 5-7/8”
Height of center from leg bottom: 42-3/8”
Distance between centers: 44"
Headstock
Number of spindle speeds: 12 steps
Spindle bore: Ø2 1/4”
Type of spindle nose: ASA-A1-6 D1-6
Taper of spindle bore and center: MT. NO. 6 x No. 4
Range of spindle speeds: 35, 52, 75, 110, 160, 230, 330, 490, 650, 950, 1350, 2000
Thread & Feed
Lead screw diameter and pitch: 1-1/8” 4TPI or pitch
Range of inch threads: 2-72(44 changes)
Number feeds: 36 steps
Range of longitudinal feeds: 0.0012”-0.034”
Range of cross feeds: 1/2 of longitudinal feeds
Tailstock
Tailstock quill diameter: Ø2-3/8”
Total travel of tailstock quill: 6”
Taper in tailstock quill: No. 4
Motors
Spindle drive motor: 5 HP
Coolant pump motor: 1/8
