NEW WARCOM MAXIMA 30-4/6
Overview

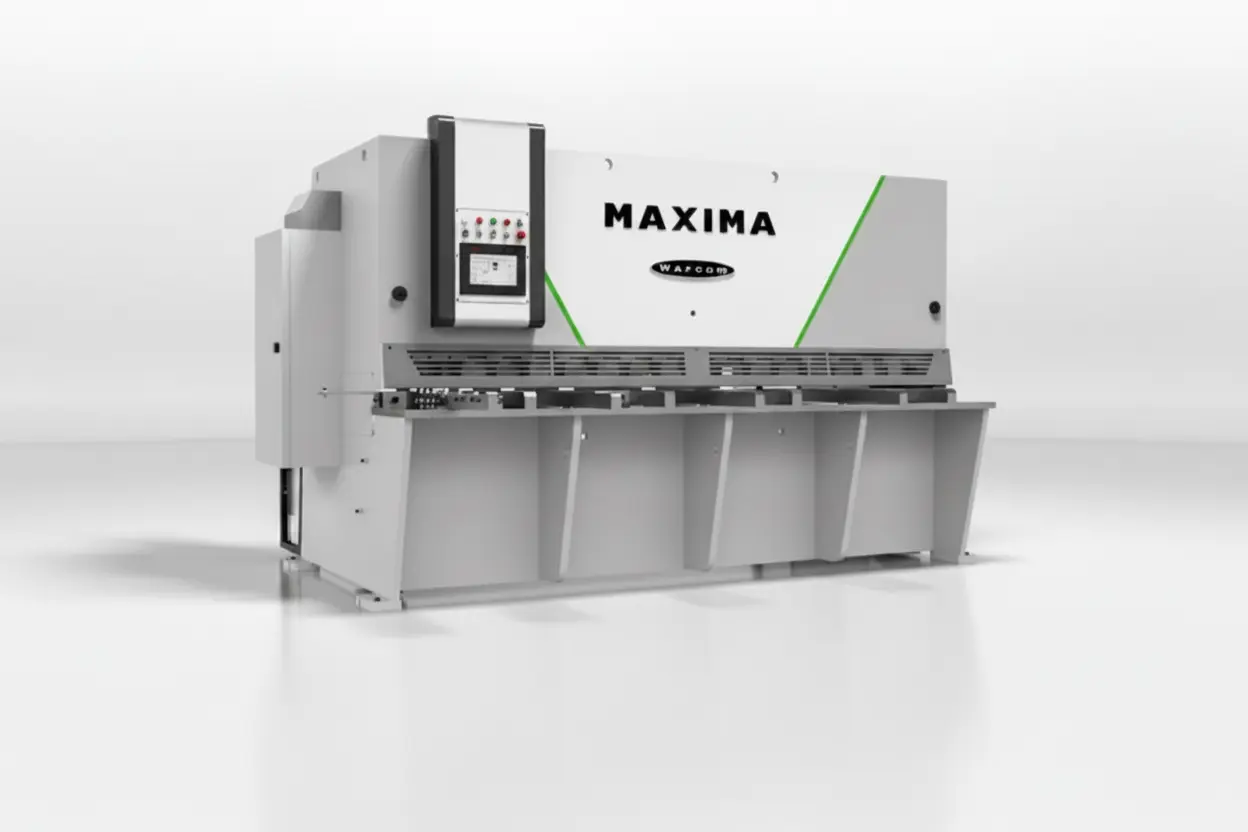

The Warcom Maxima 30-4/6 is a precision Italian-built hydraulic guillotine shear designed for professional sheet metal fabrication. Featuring a Siemens/Weintek CNC control system with programmable blade clearance, rake angle, and backgauge positioning, this machine provides outstanding cutting accuracy, repeatability, and production efficiency.
For customers requiring higher cutting capacity, the Maxima 30-6/8 is also available as an alternative model with increased cutting capacity and a more powerful drive motor.
Key Features
Italian engineered hydraulic guillotine shear
3050 mm cutting length
Siemens / Weintek 10" Touchscreen CNC
3 CNC controlled axes
Hydraulic blade clearance adjustment
Hydraulic rake angle adjustment
Retractable CNC backgauge
Hydraulic hold-down system
Hardened dual-edge blades
Automatic centralized lubrication
Shadow line cutting system
Heavy-duty welded frame
CSA Certified
Specs
Machine Specifications (Maxima 30-4/6)
Alternative Model – Maxima 30-6/8
For heavier applications, Warcom also offers the Maxima 30-6/8.
Standard Equipment
Maxima machine includes:
Siemens / Weintek 10" Touchscreen CNC Controller
CNC control of: Backgauge, Blade clearance, Rake angle
Retractable backgauge during cutting
Hydraulic blade gap adjustment
Hydraulic rake angle adjustment
Remote foot pedal
Two-edge blades for mild steel and stainless steel
Hydraulic independent hold-down cylinders
Standard front support arms
Standard ruled squaring arm
Automatic centralized lubrication pump
Shadow line cutting guide
CSA compliant
Machine supplied without first-fill hydraulic oil
Optional Accessories
Pneumatic Sheet Support Arms
Pneumatic sheet support arms (maximum 3 mm sheet thickness up to 3000 mm)
Pneumatic sheet support arms with follow-down movement (maximum 4 mm sheet thickness)
Ruled Side Square Arms
1000 mm with one swing stop
1500 mm with one swing stop
2000 mm with one swing stop
Additional Accessories
Milled flat bench up to 3000 mm
Covers for standard bench
Rubber covers for hold-down pistons
Protractor square arm – 500 mm
Protractor square arm – 1000 mm
Shaped front safety guard
Ball transfer bench
Services
Installation and operator training by Warcom technicians (travel and accommodation excluded)
Industries
Ideal for:
Sheet Metal Fabrication
Steel Service Centres
HVAC Manufacturing
Agricultural Equipment
Trailer Manufacturing
Metal Processing
General Engineering
Industrial Manufacturing
Why Choose the Warcom Maxima Series?
Premium Italian engineering
High-precision CNC control
Fast setup and repeatability
Hydraulic blade clearance adjustment
Hydraulic rake angle adjustment
Robust welded construction
Heavy-duty industrial performance
CSA Certified
Designed for continuous production environments
Manufacturer: Warcom
Model: Maxima 30-4/6
Machine Type: Hydraulic Guillotine Shear
Cutting Length: 3050 mm (120")
Distance Between Side Frames: 3150 mm
Throat Depth: 500 mm
Mild Steel Capacity: 4 mm Nominal / 6 mm Maximum
Nominal Thickness: 4 mm
Blade Angle: 1°30'
Rake Angle Adjustment: 0°30' – 3°
Backgauge Stroke: 750 mm
Stroke Rate: 22–45 strokes/min
Main Motor: 9.2 kW
Electrical Supply: 400V / 50Hz / 3 Phase
Approximate Weight: 6,500 kg (14,330 lbs)
Cutting Length: 3050 mm
Mild Steel Capacity: 6 mm Nominal / 8 mm Maximum
Nominal Thickness: 6 mm
Blade Angle: 1°30'
Rake Angle Adjustment: 0°30' – 3°
Backgauge Stroke: 750 mm
Stroke Rate: 20–38 strokes/min
Main Motor: 11 kW
Electrical Supply: 400V / 50Hz / 3 Phase
Approximate Weight: 8,000 kg (17,637 lbs)
