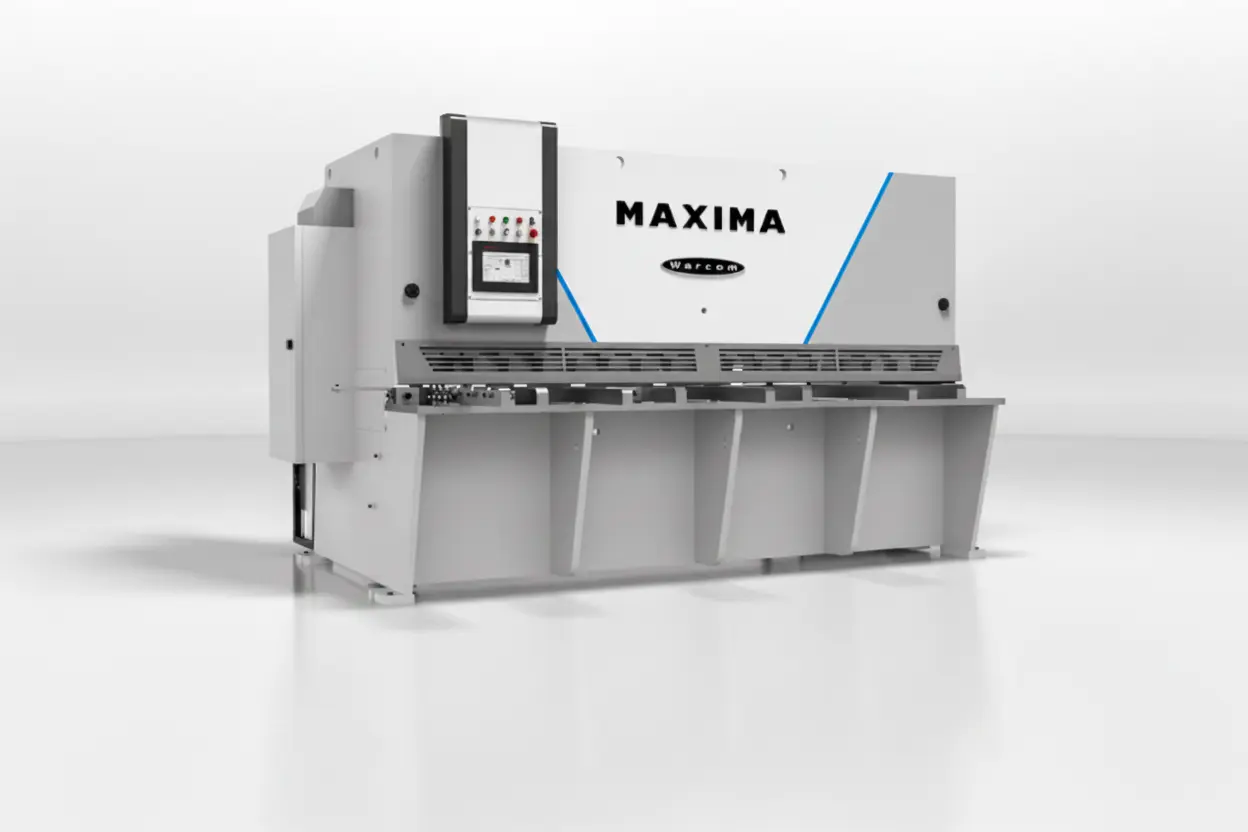

NEW WARCOM MAXIMA 20-06
Overview
The Warcom Maxima 20-06 is a high-performance hydraulic guillotine shear engineered for precision sheet metal cutting. Manufactured in Italy, this CNC-controlled machine delivers excellent cutting accuracy, high productivity, and reliable operation for fabrication shops, OEM manufacturers, and metal processing facilities.
Designed with a robust welded frame, programmable CNC controls, and hydraulic blade clearance and rake angle adjustment, the Maxima series provides fast setup times while maintaining exceptional cut quality across a wide range of materials.
Key Features
Italian engineered hydraulic guillotine shear
2,050 mm (80.7") cutting length
Cuts mild steel up to 6 mm nominal / 9 mm maximum
Siemens/Weintek 10" touchscreen CNC
3 CNC controlled axes
Hydraulic blade clearance adjustment
Hydraulic rake angle adjustment
Retractable CNC backgauge
Hydraulic independent hold-down system
Two-edge hardened blades
Automatic centralized lubrication
Shadow line cutting system
Heavy-duty welded construction
CSA Certified
Specs
Machine Specifications
Standard Equipment
Siemens / Weintek 10" Touchscreen CNC
CNC controlled blade clearance
CNC controlled rake angle
CNC controlled backgauge
Hydraulic rake angle and blade gap adjustment managed by CNC
Retractable back gauge during cutting phase
Foot pedal for remote control
Two-edge blade suitable for mild steel plates and for stainless steel plates
Hydraulic and independent hold down units
Machine without first fill oil
Standard front support arms
Standard ruled squaring arm
Automatic centralized lubrication pump
Shadow line cutting
CSA compliant safety system
Optional Accessories
Available options include:
1,000 mm Backgauge
Pneumatic sheet support arms
Ruled side square arms
Hydraulic swing beam backgauge
Protractor squaring arms
Ball transfer table
Movable swing-up safety guard
Installation & operator training
Industries
Ideal for:
Metal fabrication
Sheet metal manufacturing
HVAC fabrication
Agricultural equipment
Trailer manufacturing
Automotive suppliers
General engineering shops
Industrial fabrication
Why Choose the Warcom Maxima Series?
High cutting accuracy
Fast CNC setup
Reliable Italian manufacturing
Heavy-duty industrial construction
Easy-to-use touchscreen interface
Low maintenance hydraulic system
Excellent productivity for daily production
Manufacturer: Warcom
Model: Maxima 20-06
Machine Type: Hydraulic Guillotine Shear
Cutting Length: 2050 mm (80.7")
Distance Between Side Frames: 2150 mm
Throat Depth: 500 mm
Nominal thickness: 6 mm
Cutting capacity R=42 Kg mm2 nom./maximum: 6/9 mm
Rake angle adjustment: 0°30' – 4°
Nominal angle (degrees): 2°
Backgauge Stroke: 750 mm
Stroke Rate: 26–48 strokes/min
Main Motor: 11 kW
Power Supply: 400V / 50Hz / 3 Phase
Approximate Weight: 6,000 kg (13,228 lbs)
