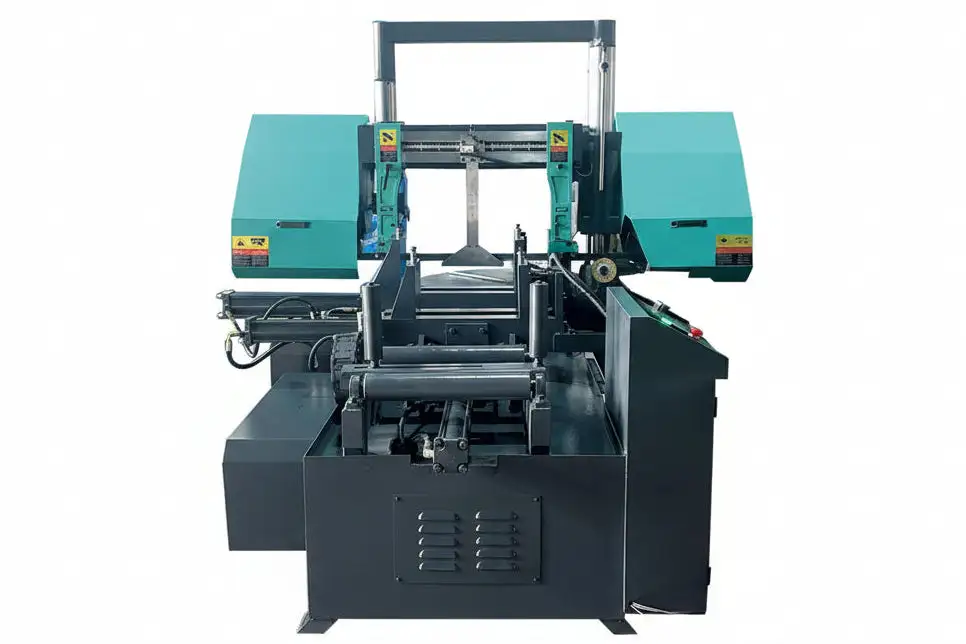

NEW BRENNAN BM-350MM
Overview
The BM-350MM Automatic CNC Band Saw Machine is a high-precision double column gantry band saw designed for efficient and accurate cutting of metal materials. This machine is ideal for industrial workshops, fabrication shops, and production environments requiring consistent cutting performance.
The machine features a fully automated control system with PLC and human-machine interface, allowing operators to set cutting length and quantity easily. Once programmed, the machine performs automatic clamping, feeding, and cutting, improving productivity and reducing manual labor.
Features:
Double column gantry structure for high rigidity and cutting accuracy
Fully automatic CNC control with PLC system
Automatic clamping, feeding, and cutting cycle
Human-machine interface for easy programming
Hydraulic feed system with adjustable feed rate
Dual vise system for stable workpiece clamping
Wire brush blade cleaning system for longer blade life
Flood coolant system for improved cutting performance
Ability to cut single material or bundled materials
Flexible cutting angle adjustment from 0° to 45°
Specs
Specifications
Max Cutting Round (90°): 350 mm
Max Cutting Rectangle (90°): 350 × 350 mm
Max Cutting Round (45°): 300 mm
Max Cutting Rectangle (45°): 300 × 350 mm
Saw Blade Speed: 27 / 45 / 69 m/min
Saw Blade Size: 4115 × 34 × 1.1 mm
Feeding Method: Hydraulic Feed
Feeding Length: 500 mm
Feeding Accuracy: ±0.2 mm
Main Motor Power: 3 kW
Hydraulic Motor Power: 0.75 kW
Cooling Motor: 40 W
Hydraulic System Pressure: 2.5 – 3.5 MPa
Hydraulic Oil Tank: 55 L
Coolant Tank: 75 L
Machine Dimensions: 2100 × 2400 × 1600 mm
Machine Weight: 1800 kg
