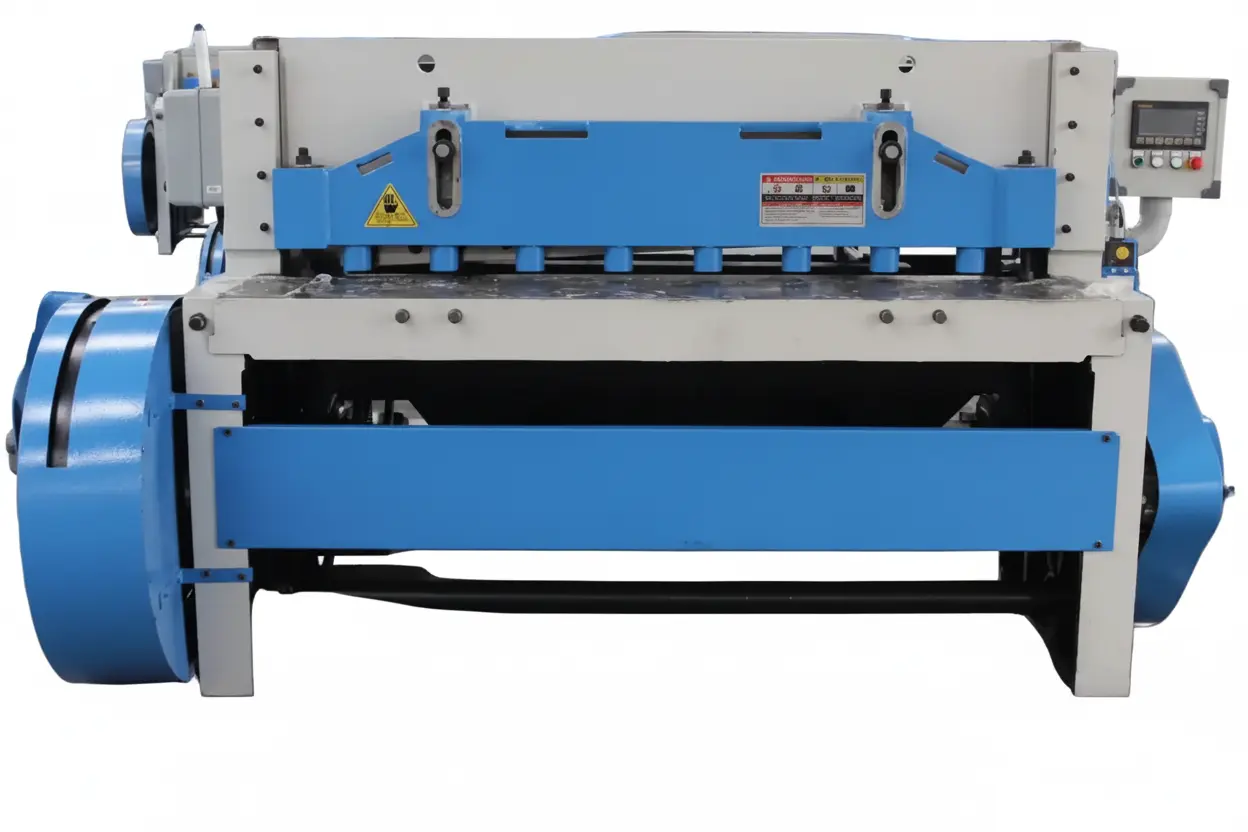

NEW BRENNAN BM11-4X79
Overview
The BM11-4X79 Mechanical Cutting Machine is a high-speed, lower-drive guillotine shear designed for precision straight-line cutting of sheet metal. Its rigid steel and cast-iron construction ensures stability, durability, and consistent performance in demanding fabrication environments.
This machine is ideal for workshops requiring fast production with reliable cutting accuracy.
Key Features
Heavy-duty welded steel and cast iron structure for rigidity
Lower transmission design with stable operation
High cutting efficiency (faster than hydraulic swing shears)
Four-edge rectangular blades for extended tool life
Adjustable back gauge for precise cutting length
Foot pedal operation for single and continuous cycles
Digital display for back gauge positioning
Strong hold-down system to prevent sheet movement
Reliable motor-driven transmission system
Specs
Technical Specifications
Maximum Cutting Thickness: Mild Steel: 0.16" (4 mm) and Stainless Steel: 0.08" (2 mm)
Cutting Length: 78.74" (2000 mm)
Shear Angle: 2°
Strokes Per Minute: 45
Upper Blade Stroke: 3.94" (100 mm)
Distance Between Columns: 91.73" (2330 mm)
Motor Power: 5.5 kW
Voltage: 380V / 50Hz / 3 Phase
Net Weight: 6,614 lbs (3000 kg)
Machine Dimensions
Length: 122.05" (3100 mm)
Width: 51.18" (1300 mm)
Height: 51.18" (1300 mm)
Standard Equipment
Digital back gauge display
Foot pedal control
Multi-edge cutting blades (4 usable edges)
Hold-down clamping system
Adjustable blade clearance
