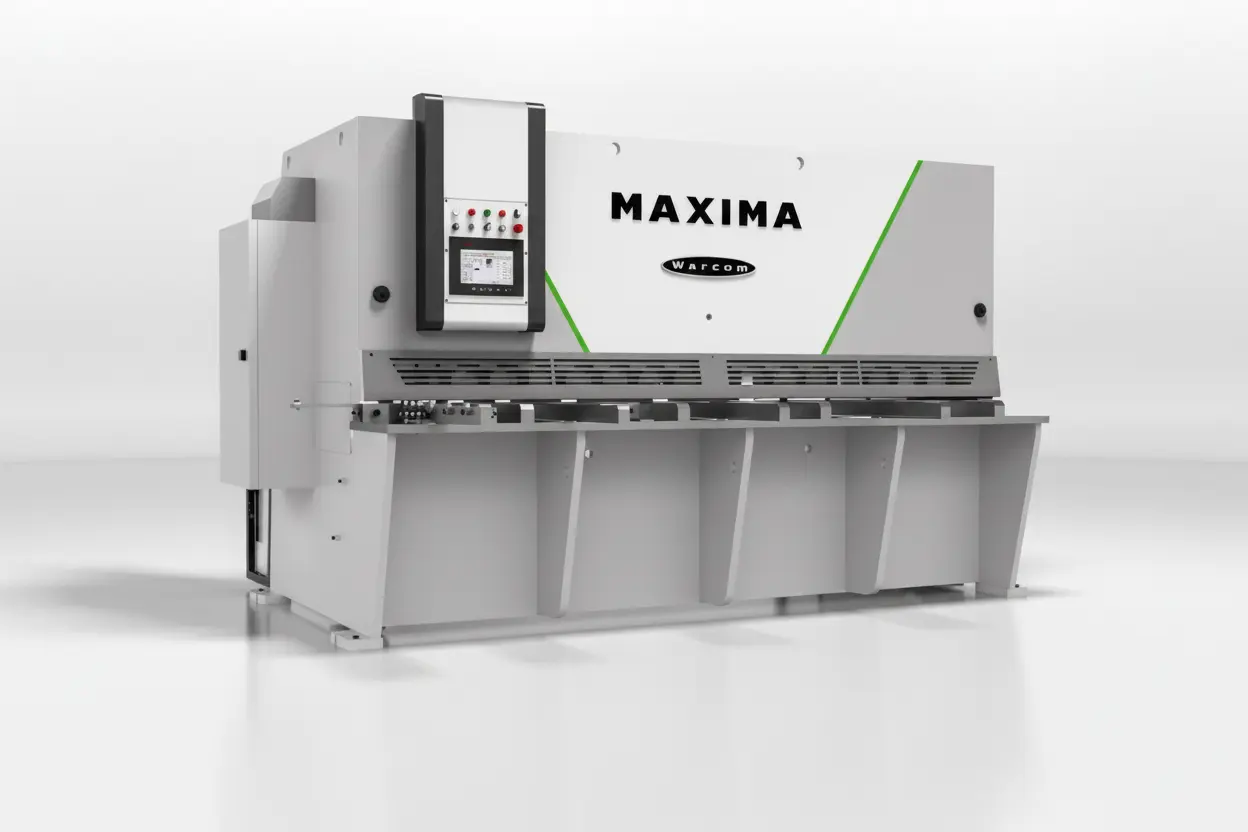

NEW WARCOM MAXIMA 40-4/6

Machine Specifications
Standard Equipment
The Maxima 40-4/6 is supplied with:
Siemens / Weintek 10" Touchscreen CNC Controller
3 CNC controlled axes Backgauge, Blade Clearance, Rake Angle
Hydraulic blade gap adjustment via CNC
Hydraulic rake angle adjustment via CNC
Retractable backgauge during cutting
Remote foot pedal control
Two-edge blades suitable for mild steel and stainless steel
Independent hydraulic hold-down cylinders
Standard front support arms
Standard ruled squaring arm
Automatic centralized lubrication pump
Shadow line cutting system
CSA compliant machine
Machine supplied without first fill hydraulic oil
Technical Highlights
✔ Heavy-duty hydraulic guillotine design
✔ Precision CNC-controlled cutting
✔ Adjustable blade clearance
✔ Adjustable rake angle
✔ High production capability
✔ Heavy industrial construction
✔ Italian engineering
✔ Excellent cut quality on mild steel and stainless steel
Optional Accessories
Available factory options include:
Pneumatic Sheet Support Arms
Pneumatic sheet support arms (max 3 mm sheet capacity, up to 4000 mm)
Pneumatic back sheet support with follow-down movement
Ruled Side Square Arms
1000 mm with 1 swing stop
1500 mm with 1 swing stop
2000 mm with 1 swing stop
Additional Accessories
Milled flat bench (4000 mm)
Bench cover with sheet metal
Rubber covers for hold-down pistons
Shaped front safety guard
Protractor square arm (500 mm)
Protractor square arm (1000 mm)
Ball transfer bench (4000 mm)
Services
Installation and operator training available by Warcom technicians (travel expenses not included)
Industries
Ideal for:
Sheet Metal Fabrication
Steel Service Centers
HVAC Manufacturing
Agricultural Equipment Manufacturing
Trailer Manufacturing
Structural Steel Fabrication
General Engineering
Industrial Manufacturing
Why Choose the Warcom Maxima 40-4/6?
Italian manufactured premium quality
High-speed production (14–28 strokes/minute)
CNC controlled cutting accuracy
Heavy-duty 12-ton construction
Easy-to-use Siemens/Weintek touchscreen
Hydraulic blade gap adjustment
Hydraulic rake angle adjustment
Low maintenance centralized lubrication
CSA Certified safety
Manufacturer: Warcom
Model: Maxima 40-4/6
Machine Type: Hydraulic Guillotine Shear
Cutting Length: 4050 mm (159.4")
Distance Between Side Frames: 4150 mm
Throat Depth: 500 mm
Mild Steel Capacity: 4 mm Nominal / 6 mm Maximum
Nominal Thickness: 6 mm
Blade Angle: 1°30'
Hydraulic Rake Angle Adjustment: 0°30' – 2°30'
Backgauge Stroke: 750 mm
Strokes Per Minute: 14 – 28
Main Motor: 9.2 kW
Maximum Oil Temperature: 45°C
Voltage: 400 V
Frequency: 50 Hz
Electrical Supply: 3 Phase (N+M)
Machine Weight: 12,000 kg (26,455 lbs)
Standard Colour: RAL 7035 / Warcom Grey
